LT8210EFE#PBF Information
LT8210EFE#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT8210EFE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK6071
|
Newark | Dc/Dc Ctrl, Sync Buck-Boost, 400Khz, Control Mode:Current Mode Control, Supply Voltage Min:2.8V, Supply Voltage Max:100V, No. Of Outputs:1Outputs, Duty Cycle (%):-, Ic Case/Package:Tssop-Ep, No. Of Pins:38Pins, Product Range:- Rohs Compliant: Yes |Analog Devices LT8210EFE#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 92 |
|
$9.0100 / $13.8500 | Buy Now |
|
|
Analog Devices Inc | 100V Buck/Boost CTLr with Pass Package Multiple: 50 | 7157 |
|
$7.0100 / $13.8500 | Buy Now |
|
DISTI #
LT8210EFE#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 50 | 0 |
|
$9.0500 / $10.5200 | Buy Now |
|
|
Chip Stock | 400kHz2.8V~100VBuck-boosttype2TSSOP-38-EP-4.4mmDC-DCControllersROHS | 4070 |
|
RFQ |
US Tariff Estimator: LT8210EFE#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT8210EFE#PBF
LT8210EFE#PBF CAD Models
-

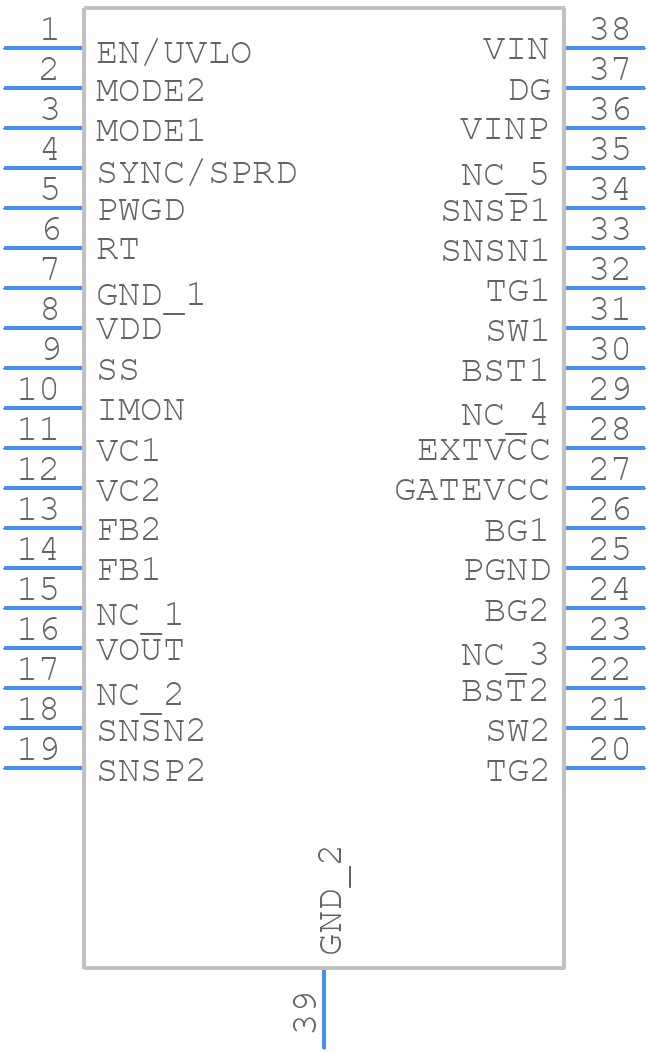

Part Symbol
-

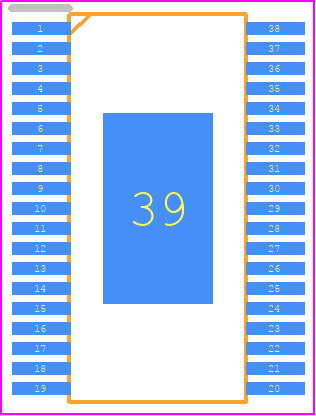

Footprint
-
