Part Details for LT8610ABEMSE-3.3#PBF by Analog Devices Inc
Results Overview of LT8610ABEMSE-3.3#PBF by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
LT8610ABEMSE-3.3#PBF Information
LT8610ABEMSE-3.3#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT8610ABEMSE-3.3#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK9083
|
Newark | Dc/Dc Conv, Sync Buck, 2Mhz, 125Deg C, Output Type:Fixed, No. Of Outputs:1Outputs, Topology:Synchronous Buck (Step Down), Input Voltage Min:3.4V, Input Voltage Max:42V, Max Output Current:3.5A, Ic Case/Package:Msop-Ep Rohs Compliant: Yes |Analog Devices LT8610ABEMSE-3.3#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
505-LT8610ABEMSE-3.3#PBF-ND
|
DigiKey | IC REG BUCK 3.3V 3.5A 16MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
102 In Stock |
|
$6.1308 / $10.1400 | Buy Now |
|
DISTI #
584-8610ABEMSE-3.3PF
|
Mouser Electronics | Switching Voltage Regulators 42V, 3.5A Sync Buck Reg w/ 2.5 A Q C RoHS: Compliant | 1371 |
|
$5.6100 / $11.6200 | Buy Now |
|
|
Analog Devices Inc | 42V, 3.5A Sync Buck Reg w/ 2.5 Package Multiple: 37 | 6089 |
|
$4.4800 / $11.6200 | Buy Now |
|
DISTI #
35211096
|
Verical | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 3.3V 3.5A 16-Pin MSOP EP Tube RoHS: Compliant Min Qty: 111 Package Multiple: 111 | Americas - 5994 |
|
$5.5411 | Buy Now |
|
|
Quest Components | SWITCHING REGULATOR, CURRENT-MODE, 3.5A, 2200KHZ SWITCHING FREQ-MAX, PDSO16 | 80 |
|
$5.7260 / $12.2700 | Buy Now |
|
DISTI #
35211096
|
Verical | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 3.3V 3.5A 16-Pin MSOP EP Tube RoHS: Compliant Min Qty: 111 Package Multiple: 111 | Americas - 5994 |
|
$5.5411 | Buy Now |
|
DISTI #
LT8610ABEMSE3.3
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 111 | 0 |
|
$5.7800 / $6.3400 | Buy Now |
|
DISTI #
35211096
|
Verical | Conv DC-DC 3.4V to 42V Synchronous Step Down Single-Out 3.3V 3.5A 16-Pin MSOP EP Tube RoHS: Compliant Min Qty: 111 Package Multiple: 111 | Americas - 5994 |
|
$5.5411 | Buy Now |
US Tariff Estimator: LT8610ABEMSE-3.3#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT8610ABEMSE-3.3#PBF
LT8610ABEMSE-3.3#PBF CAD Models
-

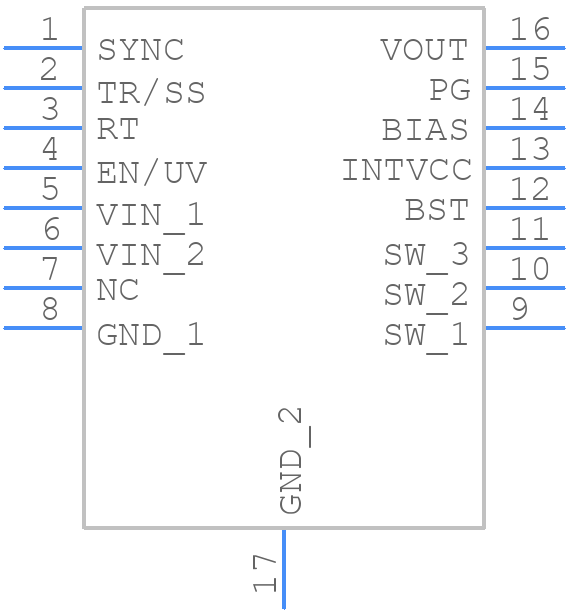

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LT8610ABEMSE-3.3#PBF Part Data Attributes
|
|
LT8610ABEMSE-3.3#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT8610ABEMSE-3.3#PBF
Analog Devices Inc
Switching Regulator, Current-mode, 3.5A, 2200kHz Switching Freq-Max, BIPolar, PDSO16
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Htssop, | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1667 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 42 V | |
| Input Voltage-Min | 2.9 V | |
| Input Voltage-Nom | 6 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 4.039 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3.5 A | |
| Output Voltage-Max | 3.34 V | |
| Output Voltage-Min | 3.26 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTSSOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Thin Profile, Shrink Pitch | |
| Seated Height-Max | 1.1 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck | |
| Switching Frequency-Max | 2200 Khz | |
| Technology | Bipolar | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Width | 3 Mm |
Alternate Parts for LT8610ABEMSE-3.3#PBF
This table gives cross-reference parts and alternative options found for LT8610ABEMSE-3.3#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT8610ABEMSE-3.3#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT8610ABHMSE-3.3#PBF | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 3.5A, 2200kHz Switching Freq-Max, BIPolar, PDSO16 | LT8610ABEMSE-3.3#PBF vs LT8610ABHMSE-3.3#PBF |
| LT8610ABIMSE-3.3#TRPBF | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 3.5A, 2200kHz Switching Freq-Max, BIPolar, PDSO16 | LT8610ABEMSE-3.3#PBF vs LT8610ABIMSE-3.3#TRPBF |
| LT8610ABHMSE-3.3#TRPBF | Analog Devices Inc | Check for Price | Switching Regulator, Current-mode, 3.5A, 2200kHz Switching Freq-Max, BIPolar, PDSO16 | LT8610ABEMSE-3.3#PBF vs LT8610ABHMSE-3.3#TRPBF |
LT8610ABEMSE-3.3#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT8610 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device's output should be decoupled with a capacitor to prevent oscillations.
-
The maximum ambient temperature range for the LT8610 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may drop.
-
Yes, the LT8610 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high performance and reliability. However, it is essential to follow proper design and manufacturing practices to ensure the device's reliability.
-
To troubleshoot issues with the LT8610, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are of high quality. Check for any signs of overheating, and ensure that the device is operated within its recommended specifications.
