LT8631IFE#TRPBF Information
LT8631IFE#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT8631IFE#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-LT8631IFE#TRPBFCT-ND
|
DigiKey | IC REG BUCK ADJ 1A 20TSSOP Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
248 In Stock |
|
$6.3129 / $10.6600 | Buy Now |
|
DISTI #
584-LT8631IFE#TRPBF
|
Mouser Electronics | Switching Voltage Regulators 100V, 1A Sync uP Buck Reg RoHS: Compliant | 1650 |
|
$5.9100 / $12.1000 | Buy Now |
|
|
Analog Devices Inc | 100V, 1A Sync uP Buck Reg Min Qty: 1 Package Multiple: 2500 | 50 |
|
$4.7300 / $12.1000 | Buy Now |
|
DISTI #
LT8631IFE#TRPBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 2500 | 0 |
|
$6.1100 / $6.3400 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 3010 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BUCK ADJ 1A 20TSSOP / Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad | 7984 |
|
$5.0058 / $7.5075 | Buy Now |
US Tariff Estimator: LT8631IFE#TRPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT8631IFE#TRPBF
LT8631IFE#TRPBF CAD Models
-

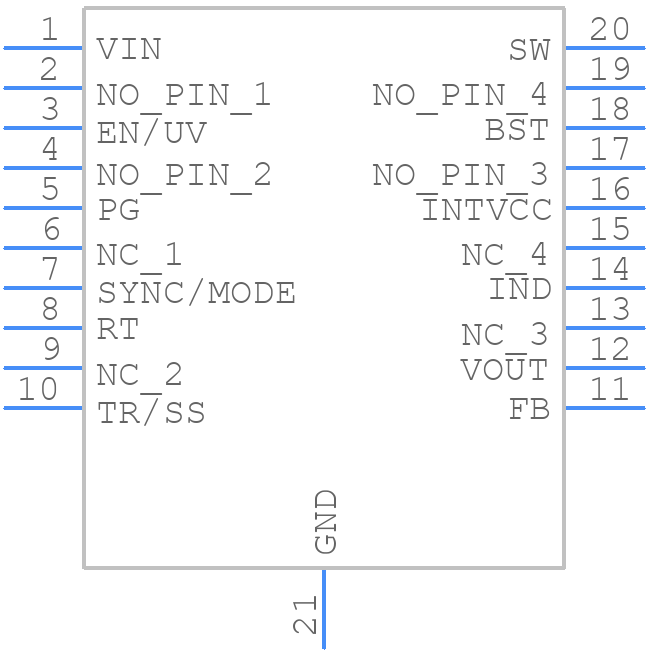

Part Symbol
-

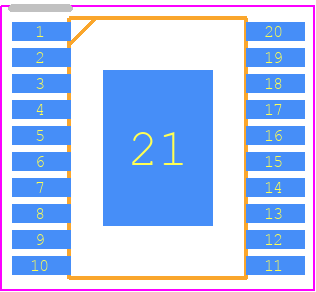

Footprint
-
