LT8646SIV#PBF Information
LT8646SIV#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LT8646SIV#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK6349
|
Newark | Dc/Dc Conv, Sync Buck, 1.95Mhz, 125Deg C, Output Type:Adjustable, No. Of Outputs:1Outputs, Topology:Synchronous Buck (Step Down), Input Voltage Min:3.4V, Input Voltage Max:65V, Max Output Current:8A, Ic Case/Package:Lqfn-Ep Rohs Compliant: Yes |Analog Devices LT8646SIV#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$9.9300 / $18.0400 | Buy Now |
|
DISTI #
505-LT8646SIV#PBF-ND
|
DigiKey | IC REG BUCK ADJ 8A 32LQFN Min Qty: 1 Lead time: 39 Weeks Container: Tray | Temporarily Out of Stock |
|
$10.6727 / $16.6200 | Buy Now |
|
DISTI #
584-LT8646SIV#PBF
|
Mouser Electronics | Switching Voltage Regulators 65V, 8A Sync Buck Silent Switcher 2 w/ 2 RoHS: Compliant | 0 |
|
$9.6300 / $17.5100 | Order Now |
|
|
Analog Devices Inc | 65V, 8A Sync Buck Silent Switc Package Multiple: 490 | 0 |
|
$7.7100 / $17.5100 | Buy Now |
|
DISTI #
LT8646SIV#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 490 | 0 |
|
$9.9600 / $10.9200 | Buy Now |
|
|
Win Source Electronics | IC REG BUCK ADJUSTABLE 8A 32LQFN / Buck Switching Regulator IC Positive Adjustable 1.8V 1 Output 8A 32-TFQFN Exposed Pad | 450 |
|
$95.6522 / $111.5942 | Buy Now |
US Tariff Estimator: LT8646SIV#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LT8646SIV#PBF
LT8646SIV#PBF CAD Models
-

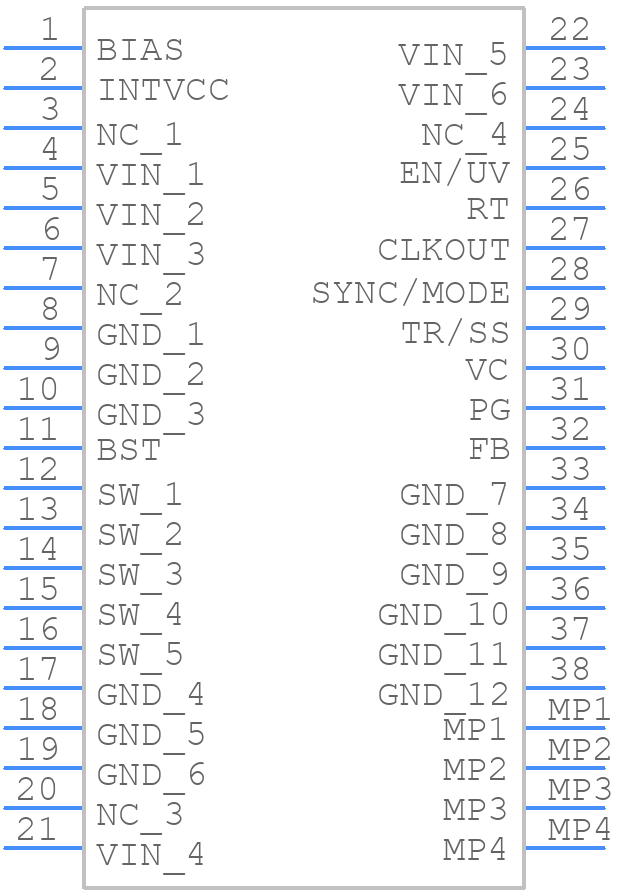

Part Symbol
-

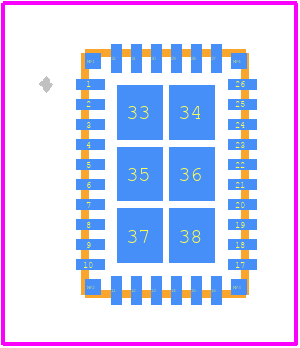

Footprint
-

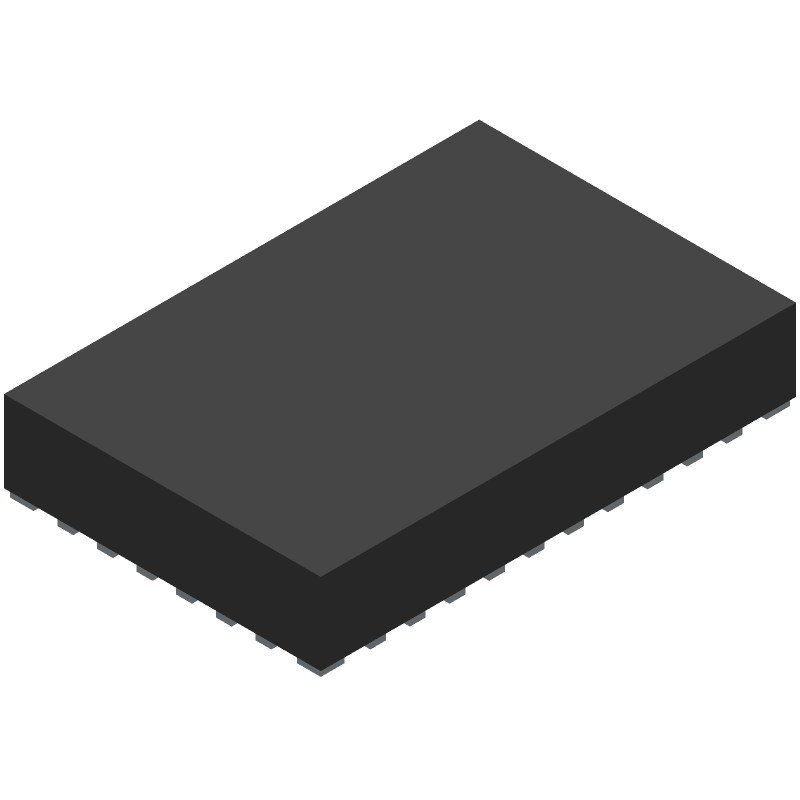

3D Model
