LTC1163CS8#PBF Information
LTC1163CS8#PBF by Analog Devices Inc is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for LTC1163CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC1163CS8#PBF-ND
|
DigiKey | IC GATE DRVR HIGH-SIDE 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
181 In Stock |
|
$5.8963 / $9.7700 | Buy Now |
|
DISTI #
584-LTC1163CS8#PBF
|
Mouser Electronics | Gate Drivers 3x 1.8V to 6V Hi-Side MOSFET Drvrs RoHS: Compliant | 400 |
|
$5.3700 / $11.2700 | Buy Now |
|
|
Analog Devices Inc | 3x 1.8V to 6V Hi-Side MOSFET D Package Multiple: 100 | 5037 |
|
$4.3000 / $11.2700 | Buy Now |
|
|
Rochester Electronics | LTC1163 - Triple High Side Switch Driver RoHS: Compliant Status: Active Min Qty: 1 | 9 |
|
$4.5300 / $5.6600 | Buy Now |
|
DISTI #
LTC1163CS8#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 100 | 0 |
|
$5.5500 / $6.0900 | Buy Now |
US Tariff Estimator: LTC1163CS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC1163CS8#PBF
LTC1163CS8#PBF CAD Models
-

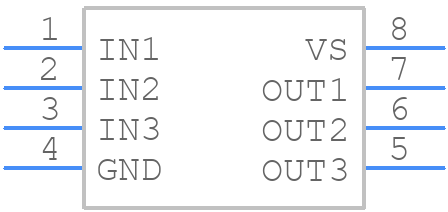

Part Symbol
-

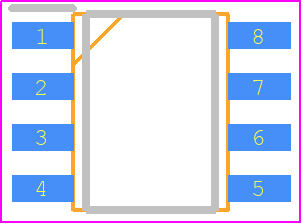

Footprint
-
