Part Details for LTC1263CS8#PBF by Analog Devices Inc
Results Overview of LTC1263CS8#PBF by Analog Devices Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (1 option)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
LTC1263CS8#PBF Information
LTC1263CS8#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC1263CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6069
|
Newark | Dc/Dc Charge Pump Conv, Boost, Fixed, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Output Current Max:60Ma, Fixed Output Voltage Nom:12V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:4.75V Rohs Compliant: Yes |Analog Devices LTC1263CS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 3 |
|
$5.1600 / $10.9300 | Buy Now |
|
DISTI #
LTC1263CS8#PBF-ND
|
DigiKey | IC REG CONV PROG SUP 1OUT 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
189 In Stock |
|
$5.1625 / $10.9300 | Buy Now |
|
DISTI #
584-LTC1263CS8#PBF
|
Mouser Electronics | Switching Voltage Regulators 12V, 60mA Flash Memory Progming S RoHS: Compliant | 164 |
|
$5.1600 / $10.9300 | Buy Now |
|
DISTI #
V36:1790_06436762
|
Arrow Electronics | Conv DC-DC 4.75V to 5.5V Step Up Single-Out 12V 0.06A 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2228 | Americas - 32 |
|
$1.2050 / $4.9466 | Buy Now |
|
|
Analog Devices Inc | 12V, 60mA Flash Memory Progmi Package Multiple: 100 | 638 |
|
$4.1300 / $10.9300 | Buy Now |
|
|
Rochester Electronics | Switched Capacitor Regulator, 0.06A, 300kHz Switching Freq-Max, CMOS, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 38 |
|
$4.3400 / $5.4300 | Buy Now |
|
DISTI #
V36:1790_06436762
|
Arrow Electronics | Conv DC-DC 4.75V to 5.5V Step Up Single-Out 12V 0.06A 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2228 | Americas - 32 |
|
$1.2050 / $4.9466 | Buy Now |
|
DISTI #
V36:1790_06436762
|
Arrow Electronics | Conv DC-DC 4.75V to 5.5V Step Up Single-Out 12V 0.06A 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2228 | Americas - 32 |
|
$1.2050 / $4.9466 | Buy Now |
|
DISTI #
LTC1263CS8#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 100 | 0 |
|
$5.3300 / $5.8500 | Buy Now |
US Tariff Estimator: LTC1263CS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC1263CS8#PBF
LTC1263CS8#PBF CAD Models
-

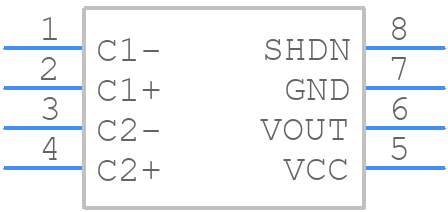

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC1263CS8#PBF Part Data Attributes
|
|
LTC1263CS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1263CS8#PBF
Analog Devices Inc
Switched Capacitor Regulator, Voltage-mode, 0.06A, 300kHz Switching Freq-Max, CMOS, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Switched Capacitor Regulator | |
| Control Mode | Voltage-Mode | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.75 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.06 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 1 Ma | |
| Surface Mount | Yes | |
| Switcher Configuration | Tripler | |
| Switching Frequency-Max | 300 Khz | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for LTC1263CS8#PBF
This table gives cross-reference parts and alternative options found for LTC1263CS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC1263CS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LTC1263CS8#TRPBF | Analog Devices Inc | Check for Price | Switched Capacitor Regulator, Voltage-mode, 0.06A, 300kHz Switching Freq-Max, CMOS, PDSO8 | LTC1263CS8#PBF vs LTC1263CS8#TRPBF |
LTC1263CS8#PBF Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the LTC1263CS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To optimize the performance of the LTC1263CS8 in a noisy environment, use shielding, filtering, and decoupling to minimize electromagnetic interference (EMI). Use a low-pass filter at the input, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
-
The maximum operating temperature range for the LTC1263CS8 is -40°C to 85°C. However, the device can be operated at temperatures above 85°C with reduced reliability and performance.
-
To ensure the LTC1263CS8 is properly powered and decoupled, use a low-ESR capacitor (e.g., 10uF) between the VCC and GND pins, and a 0.1uF capacitor between the AVCC and AGND pins. Use a separate power supply for the analog and digital sections, and consider using a voltage regulator to regulate the power supply.
-
The recommended clock frequency for the LTC1263CS8 is between 1.5 MHz and 20 MHz. However, the device can operate at clock frequencies up to 40 MHz with reduced performance and increased power consumption.
