LTC1263IS8#PBF Information
LTC1263IS8#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC1263IS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK2013
|
Newark | Dc/Dc Charge Pump Conv, Boost, Fixed, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Output Current Max:60Ma, Fixed Output Voltage Nom:12V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:4.75V Rohs Compliant: Yes |Analog Devices LTC1263IS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 61 |
|
$5.8600 / $12.0200 | Buy Now |
|
DISTI #
LTC1263IS8#PBF-ND
|
DigiKey | IC REG CONV PROG SUP 1OUT 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Tube |
514 In Stock |
|
$5.8625 / $12.0200 | Buy Now |
|
DISTI #
584-LTC1263IS8#PBF
|
Mouser Electronics | Switching Voltage Regulators 12V, 60mA Flash Memory Progming S RoHS: Compliant | 442 |
|
$5.8600 / $12.0200 | Buy Now |
|
|
Analog Devices Inc | 12V, 60mA Flash Memory Progmi Package Multiple: 100 | 403 |
|
$4.6900 / $12.0200 | Buy Now |
|
|
Rochester Electronics | Switched Capacitor Regulator, 0.06A, 300kHz Switching Freq-Max, CMOS, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 | 6 |
|
$4.9400 / $6.1700 | Buy Now |
|
DISTI #
LTC1263IS8PBF
|
TME | PMIC, DC/DC converter, Uin: 4.75÷5.5VDC, SO8, SMD, Ch: 1, -40÷85°C Min Qty: 1 | 0 |
|
$7.6000 / $9.5600 | RFQ |
|
DISTI #
LTC1263IS8#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 100 | 0 |
|
$6.0600 / $6.6400 | Buy Now |
US Tariff Estimator: LTC1263IS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC1263IS8#PBF
LTC1263IS8#PBF CAD Models
-

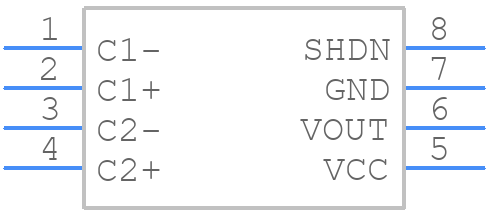

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC1263IS8#PBF Part Data Attributes
|
|
LTC1263IS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1263IS8#PBF
Analog Devices Inc
Switched Capacitor Regulator, Voltage-mode, 0.06A, 300kHz Switching Freq-Max, CMOS, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Switched Capacitor Regulator | |
| Control Mode | Voltage-Mode | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.75 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.06 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 1 Ma | |
| Surface Mount | Yes | |
| Switcher Configuration | Tripler | |
| Switching Frequency-Max | 300 Khz | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
