Part Details for LTC1541CS8#TRPBF by Analog Devices Inc
Results Overview of LTC1541CS8#TRPBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
LTC1541CS8#TRPBF Information
LTC1541CS8#TRPBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC1541CS8#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC1541CS8#TRPBF-ND
|
DigiKey | IC AMP COMP REF 8SOIC Min Qty: 2500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.7375 | Buy Now |
|
DISTI #
584-LTC1541CS8#TRPBF
|
Mouser Electronics | Analog Comparators uP Op Amp, Comp & Ref RoHS: Compliant | 0 |
|
$2.7300 | Order Now |
|
|
Analog Devices Inc | uP Op Amp, Comp & Ref Min Qty: 2500 Package Multiple: 2500 | 0 |
|
$2.1900 / $2.9100 | Buy Now |
|
DISTI #
LTC1541CS8TRPBF
|
Richardson RFPD | COMPARATOR RoHS: Compliant Min Qty: 2500 | 0 |
|
$2.8300 / $2.9400 | Buy Now |
|
|
Vyrian | Peripheral ICs | 8868 |
|
RFQ |
US Tariff Estimator: LTC1541CS8#TRPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC1541CS8#TRPBF
LTC1541CS8#TRPBF CAD Models
-

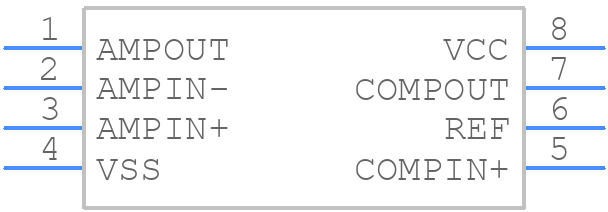

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC1541CS8#TRPBF Part Data Attributes
|
|
LTC1541CS8#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC1541CS8#TRPBF
Analog Devices Inc
Operational Amplifier, 1 Func, 2000uV Offset-Max, CMOS, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.001 µA | |
| Bias Current-Max (IIB) @25C | 0.001 µA | |
| Frequency Compensation | No | |
| Input Offset Voltage-Max | 2000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9025 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Seated Height-Max | 1.752 Mm | |
| Slew Rate-Nom | 8 V/Us | |
| Supply Current-Max | 0.015 Ma | |
| Supply Voltage Limit-Max | 13 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 12 | |
| Voltage Gain-Min | 12.5892 | |
| Wideband | No | |
| Width | 3.899 Mm |
LTC1541CS8#TRPBF Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the LTC1541CS8 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To ensure the LTC1541CS8 is properly powered and decoupled, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VCC and GND pins, and a 0.1uF capacitor between the VCC and AVCC pins. Additionally, use a separate analog power supply and decouple the digital power supply with a ferrite bead or a 10uF capacitor.
-
The maximum clock frequency that can be used with the LTC1541CS8 is 50MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
-
The digital output data from the LTC1541CS8 is in a 12-bit, two's complement format. To handle this data, use a microcontroller or FPGA with a 12-bit ADC interface, or use a dedicated ADC interface IC. Ensure proper synchronization and data alignment when processing the output data.
-
The typical power consumption of the LTC1541CS8 is around 15mW at a supply voltage of 5V and a clock frequency of 10MHz. However, the actual power consumption may vary depending on the specific application, clock frequency, and operating conditions.
