LTC2052HVHGN#PBF Information
LTC2052HVHGN#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC2052HVHGN#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
505-LTC2052HVHGN#PBF-ND
|
DigiKey | IC OPAMP ZERO-DRIFT 4CIRC 16SSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube | Temporarily Out of Stock |
|
$9.3663 / $15.0200 | Buy Now |
|
DISTI #
584-LTC2052HVHGN#PBF
|
Mouser Electronics | Precision Amplifiers 4x Zero-Drift Op Amps RoHS: Compliant | 0 |
|
$8.6200 | Order Now |
|
|
Analog Devices Inc | 4x Zero-Drift Op Amps Package Multiple: 100 | 6700 |
|
$6.9000 / $16.0900 | Buy Now |
|
DISTI #
LTC2052HVHGNPBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 100 | 0 |
|
$8.9000 / $9.7700 | Buy Now |
US Tariff Estimator: LTC2052HVHGN#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC2052HVHGN#PBF
LTC2052HVHGN#PBF CAD Models
-

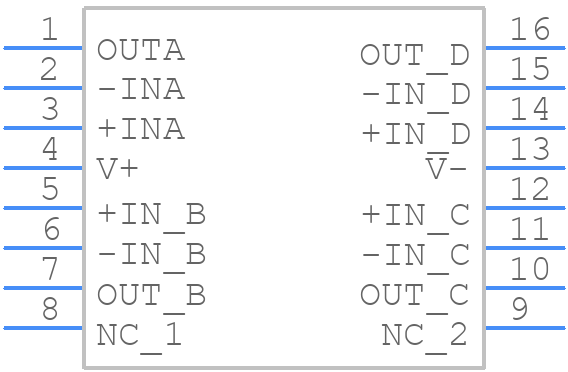

Part Symbol
-
Footprint
-

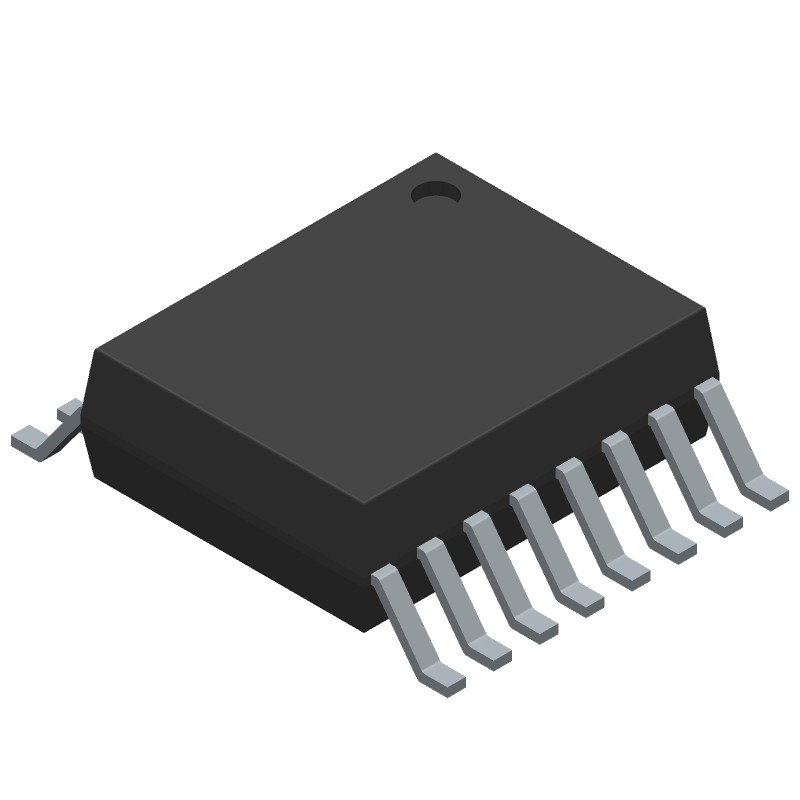

3D Model
