LTC3108IDE#PBF Information
LTC3108IDE#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3108IDE#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC3108IDE#PBF-ND
|
DigiKey | IC CONV BOOST PROG 4.5MA 12DFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
178 In Stock |
|
$5.1625 / $10.9300 | Buy Now |
|
DISTI #
584-LTC3108IDE#PBF
|
Mouser Electronics | Power Management Specialized - PMIC Ultralow V Boost Conv & Pwr Manager RoHS: Compliant | 78 |
|
$5.1600 / $10.9300 | Buy Now |
|
|
Analog Devices Inc | Ultralow V Boost Conv & Pwr Ma Package Multiple: 91 | 36 |
|
$4.1300 / $10.9300 | Buy Now |
|
|
Rochester Electronics | Switching Regulator, 0.45A, CMOS, PDSO12 RoHS: Compliant Status: Active Min Qty: 1 | 44 |
|
$4.3400 / $5.4300 | Buy Now |
|
DISTI #
LTC3108IDEPBF
|
TME | PMIC, LDO,DC/DC converter, Uin: 0.02÷0.5VDC, Uout: 2.35÷5VDC, SMD Min Qty: 1 | 0 |
|
$5.9600 / $7.8800 | RFQ |
|
DISTI #
LTC3108IDE#PBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 91 | 0 |
|
$5.3300 / $6.1900 | Buy Now |
US Tariff Estimator: LTC3108IDE#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC3108IDE#PBF
LTC3108IDE#PBF CAD Models
-

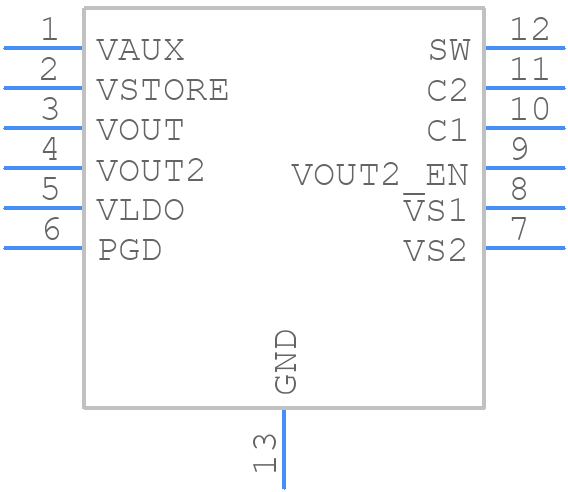

Part Symbol
-
Footprint
-

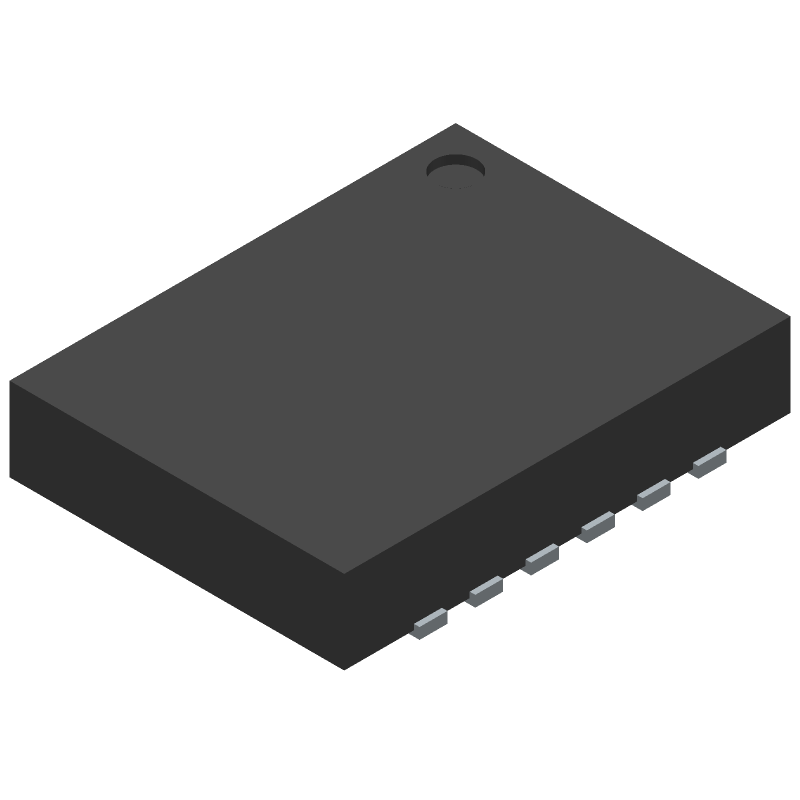

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC3108IDE#PBF Part Data Attributes
|
|
LTC3108IDE#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3108IDE#PBF
Analog Devices Inc
Switching Regulator, Voltage-mode, 0.45A, CMOS, PDSO12
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Hvson, Solcc12,.12,20 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 05-08-1695 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Additional Feature | Also Operates At 5, 4.1, 3.3 And 2.35v | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Voltage-Mode | |
| Input Voltage-Max | 0.5 V | |
| Input Voltage-Min | 0.02 V | |
| JESD-30 Code | R-PDSO-N12 | |
| JESD-609 Code | e3 | |
| Length | 4 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.45 A | |
| Output Voltage-Max | 2.4 V | |
| Output Voltage-Min | 2.3 V | |
| Output Voltage-Nom | 2.35 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC12,.12,20 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Boost | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
