LTC3410ESC6-1.2#TRMPBF by:
Analog Devices Inc

Switching Regulator, Current-mode, 0.63A, 2700kHz Switching Freq-Max, CMOS, PDSO6

Part Details for LTC3410ESC6-1.2#TRMPBF by Analog Devices Inc

Results Overview of LTC3410ESC6-1.2#TRMPBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

LTC3410ESC6-1.2#TRMPBF Information

LTC3410ESC6-1.2#TRMPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LTC3410ESC6-1.2#TRMPBF

Part # Distributor Description Stock Price Buy
DISTI # LTC3410ESC6-1.2#TRMPBF-ND
DigiKey IC REG BUCK 1.2V 300MA SC70-6 Min Qty: 500 Lead time: 10 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 500 $2.3968
  • 1,000 $2.3625
$2.3625 / $2.3968 Buy Now
DISTI # 584-C3410ESC61.2TMPF
Mouser Electronics Switching Voltage Regulators 2.25MHz, 300mA Sync Buck Reg in SC70 RoHS: Compliant 0
  • 500 $2.3900
  • 1,000 $2.3600
$2.3600 / $2.3900 Order Now
Analog Devices Inc 2.25MHz, 300mA Sync Buck Reg i Package Multiple: 500 0
  • 1 $2.6000
  • 500 $2.3968
  • 1,000 $2.3625
$2.3625 / $2.6000 Buy Now
DISTI # LTC3410ESC6-1.2TRM
TME PMIC, DC/DC converter, Uin: 2.5÷5.5VDC, Uout: 0.8÷5.5VDC, 0.49A Min Qty: 500 0
  • 500 $2.2400
$2.2400 RFQ
DISTI # LTC3410ES61.2TR
Richardson RFPD DC TO DC CONVERTER RoHS: Compliant Min Qty: 500 0
  • 500 $2.6000
  • 1,000 $2.5400
  • 5,000 $2.4400
$2.4400 / $2.6000 Buy Now
Vyrian Peripheral ICs 2262
RFQ

US Tariff Estimator: LTC3410ESC6-1.2#TRMPBF by Analog Devices Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LTC3410ESC6-1.2#TRMPBF
Analog Devices Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LTC3410ESC6-1.2#TRMPBF

LTC3410ESC6-1.2#TRMPBF CAD Models

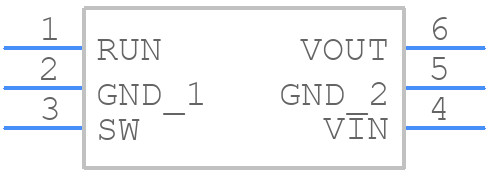

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

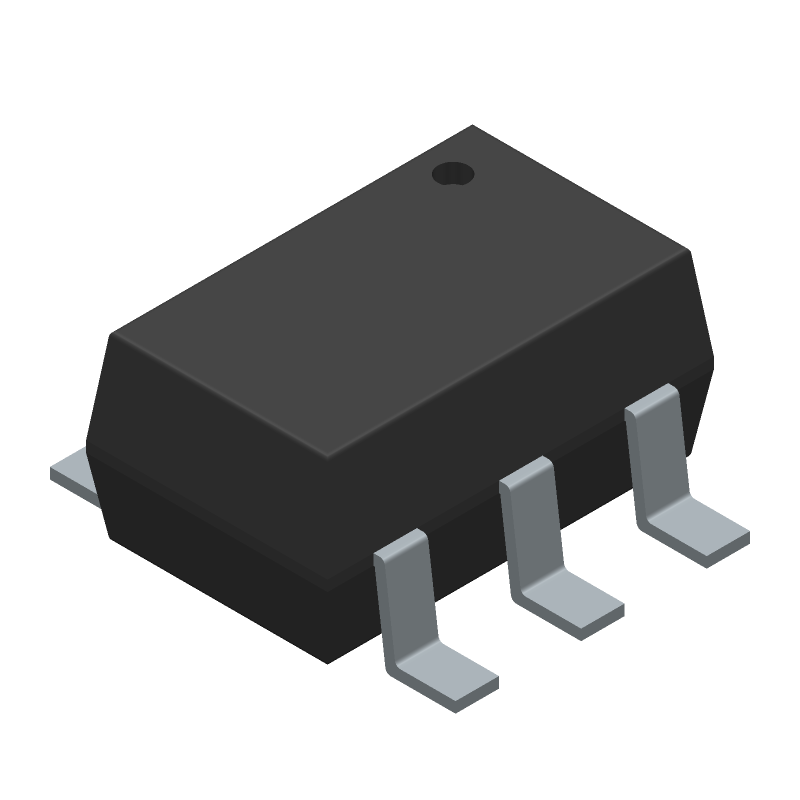

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LTC3410ESC6-1.2#TRMPBF Part Data Attributes

Parametric Data
LTC3410ESC6-1.2#TRMPBF Analog Devices Inc
Buy Now Datasheet
Compare Parts:
LTC3410ESC6-1.2#TRMPBF Analog Devices Inc Switching Regulator, Current-mode, 0.63A, 2700kHz Switching Freq-Max, CMOS, PDSO6
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Package Description Vssop,
Pin Count 6
Manufacturer Package Code 05-08-1638
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Analog IC - Other Type Switching Regulator
Control Mode Current-Mode
Input Voltage-Max 5.5 V
Input Voltage-Min 2.5 V
Input Voltage-Nom 3.6 V
JESD-30 Code R-PDSO-G6
JESD-609 Code e3
Length 2 Mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 6
Operating Temperature-Max 85 °C
Operating Temperature-Min
Output Current-Max 0.63 A
Package Body Material Plastic/Epoxy
Package Code VSSOP
Package Shape Rectangular
Package Style Small Outline, Very Thin Profile, Shrink Pitch
Qualification Status Not Qualified
Seated Height-Max 1 Mm
Surface Mount Yes
Switcher Configuration Buck
Switching Frequency-Max 2700 Khz
Technology Cmos
Temperature Grade Commercial Extended
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Width 1.25 Mm

Alternate Parts for LTC3410ESC6-1.2#TRMPBF

This table gives cross-reference parts and alternative options found for LTC3410ESC6-1.2#TRMPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC3410ESC6-1.2#TRMPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LTC3410ESC6-1.2#TRM Analog Devices Inc Check for Price Switching Regulator, Current-mode, 0.63A, 2700kHz Switching Freq-Max, CMOS, PDSO6 LTC3410ESC6-1.2#TRMPBF vs LTC3410ESC6-1.2#TRM
LTC3410ESC6-1.2#TRM Linear Technology Check for Price Switching Regulator, Current-mode, 0.63A, 2700kHz Switching Freq-Max, PDSO6 LTC3410ESC6-1.2#TRMPBF vs LTC3410ESC6-1.2#TRM
LTC3410ESC6-1.2#TRMPBF Linear Technology Check for Price Switching Regulator, Current-mode, 0.63A, 2700kHz Switching Freq-Max, PDSO6 LTC3410ESC6-1.2#TRMPBF vs LTC3410ESC6-1.2#TRMPBF
