LTC3440EMS#PBF Information
LTC3440EMS#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3440EMS#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK6862
|
Newark | Dc/Dc Conv, Sync Buck-Boost, 2Mhz, Output Type:Adjustable, No. Of Outputs:1Outputs, Topology:Synchronous Buck-Boost, Input Voltage Min:2.5V, Input Voltage Max:5.5V, Max Output Current:600Ma, Ic Case/Package:Msop, No. Of Pins:10Pinsrohs Compliant: Yes |Analog Devices LTC3440EMS#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 15 |
|
$4.1300 / $9.2500 | Buy Now |
|
DISTI #
505-LTC3440EMS#PBF-ND
|
DigiKey | IC REG BUCK BST ADJ 600MA 10MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube |
763 In Stock |
|
$4.1250 / $9.2500 | Buy Now |
|
DISTI #
584-LTC3440EMS#PBF
|
Mouser Electronics | Switching Voltage Regulators uP Sync Buck-Boost DC/DC Conv RoHS: Compliant | 1125 |
|
$4.1200 / $9.2500 | Buy Now |
|
|
Analog Devices Inc | uP Sync Buck-Boost DC/DC Conv Package Multiple: 50 | 3403 |
|
$3.3000 / $9.2500 | Buy Now |
|
|
Rochester Electronics | LTC3440 - Micropower Synchronous Buck-Boost DC/DC Converter RoHS: Compliant Status: Active Min Qty: 1 | 50 |
|
$3.4700 / $4.3400 | Buy Now |
|
DISTI #
LTC3440EMSPBF
|
TME | PMIC, DC/DC converter, Uin: 2.5÷5.5VDC, Uout: 2.5÷5.5VDC, 600mA Min Qty: 1 | 0 |
|
$9.9100 / $14.0000 | RFQ |
|
DISTI #
LTC3440EMS#PBF
|
Richardson RFPD | DC TO DC CONVERTER RoHS: Compliant Min Qty: 150 | 0 |
|
$4.2600 / $4.6700 | Buy Now |
|
|
Chip Stock | ConvDC-DC2.5Vto5.5VNon-Inv/Inv/StepUp/StepDownSingle-Out2.5Vto5.5V0.6A10-PinMSOP | 6180 |
|
RFQ |
US Tariff Estimator: LTC3440EMS#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC3440EMS#PBF
LTC3440EMS#PBF CAD Models
-

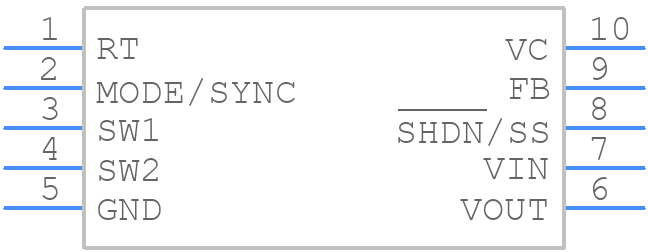

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC3440EMS#PBF Part Data Attributes
|
|
LTC3440EMS#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC3440EMS#PBF
Analog Devices Inc
Switching Regulator, Voltage-mode, 2000kHz Switching Freq-Max, CMOS, PDSO10
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop, | |
| Pin Count | 10 | |
| Manufacturer Package Code | 05-08-1661 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Voltage-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.5 V | |
| Input Voltage-Nom | 3.6 V | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 2.5 V | |
| Output Voltage-Nom | 3.6 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck-Boost | |
| Switching Frequency-Max | 2000 Khz | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 Mm |
