LTC3811EUHF#TRPBF Information
LTC3811EUHF#TRPBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3811EUHF#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC3811EUHF#TRPBF-ND
|
DigiKey | IC REG CTRLR BUCK 38QFN Min Qty: 2500 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$5.9848 | Buy Now |
|
DISTI #
584-LTC3811EUHFTRPBF
|
Mouser Electronics | Switching Voltage Regulators Hi Speed 2x, MP Buck DC/DC Cntr RoHS: Compliant | 0 |
|
$5.6000 | Order Now |
|
|
Analog Devices Inc | Hi Speed 2x, MP Buck DC/DC Cnt Min Qty: 2500 Package Multiple: 2500 | 12500 |
|
$4.4800 / $6.3100 | Buy Now |
|
DISTI #
LTC3811EUHFTRPBF
|
TME | PMIC, DC/DC converter, Uin: 4.5÷30VDC, Uout: 0.6÷3.3VDC, 240A, SMD Min Qty: 2500 | 0 |
|
$4.9500 | RFQ |
|
DISTI #
LTC3811EUHFTRP
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 2500 | 0 |
|
$5.7800 / $6.0100 | Buy Now |
US Tariff Estimator: LTC3811EUHF#TRPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC3811EUHF#TRPBF

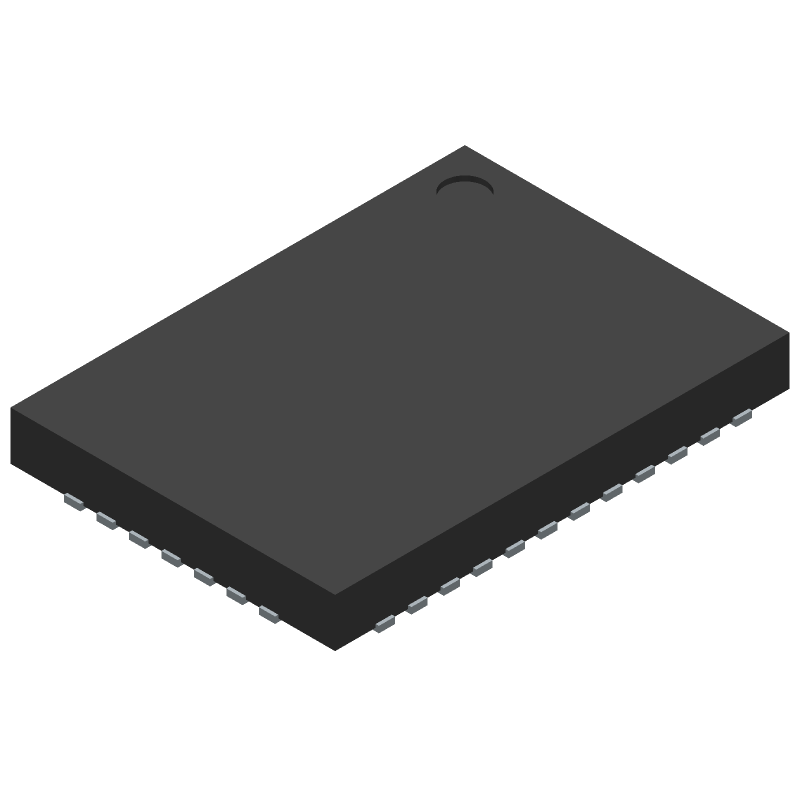

LTC3811EUHF#TRPBF CAD Models
-

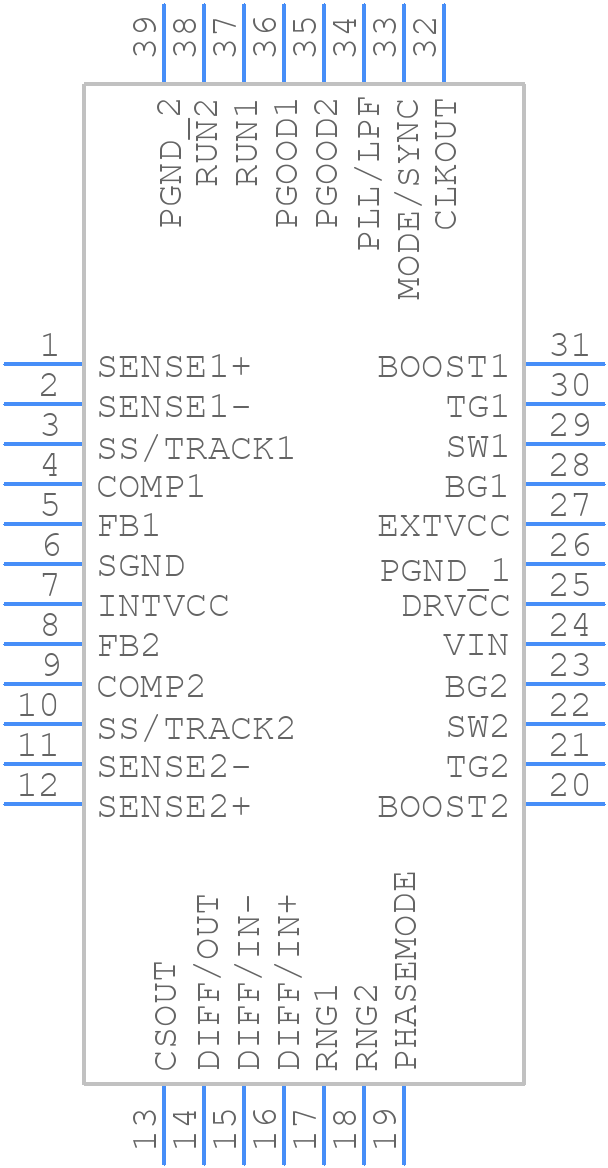

Part Symbol
-

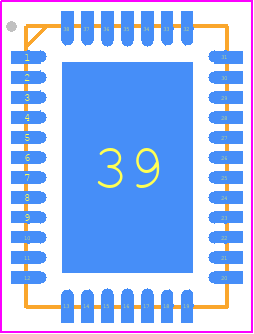

Footprint
-
