LTC3859AHUHF#PBF Information
LTC3859AHUHF#PBF by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC3859AHUHF#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
LTC3859AHUHF#PBF-ND
|
DigiKey | IC REG CTRLR MULT TOPOLOGY 38QFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
156 In Stock |
|
$7.7000 / $14.7700 | Buy Now |
|
DISTI #
584-LTC3859AHUHF#PBF
|
Mouser Electronics | Switching Voltage Regulators L IQ, 3x Out, Buck/Buck/Boost Sync Cntr RoHS: Compliant | 0 |
|
$7.7000 / $14.7700 | Order Now |
|
|
Analog Devices Inc | L IQ, 3x Out, Buck/Buck/Boost Package Multiple: 52 | 3152 |
|
$6.1600 / $14.7700 | Buy Now |
|
DISTI #
LTC3859AHUHFPBF
|
Richardson RFPD | POWER MANAGEMENT IC RoHS: Compliant Min Qty: 52 | 0 |
|
$7.9600 / $9.2400 | Buy Now |
US Tariff Estimator: LTC3859AHUHF#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC3859AHUHF#PBF
LTC3859AHUHF#PBF CAD Models
-

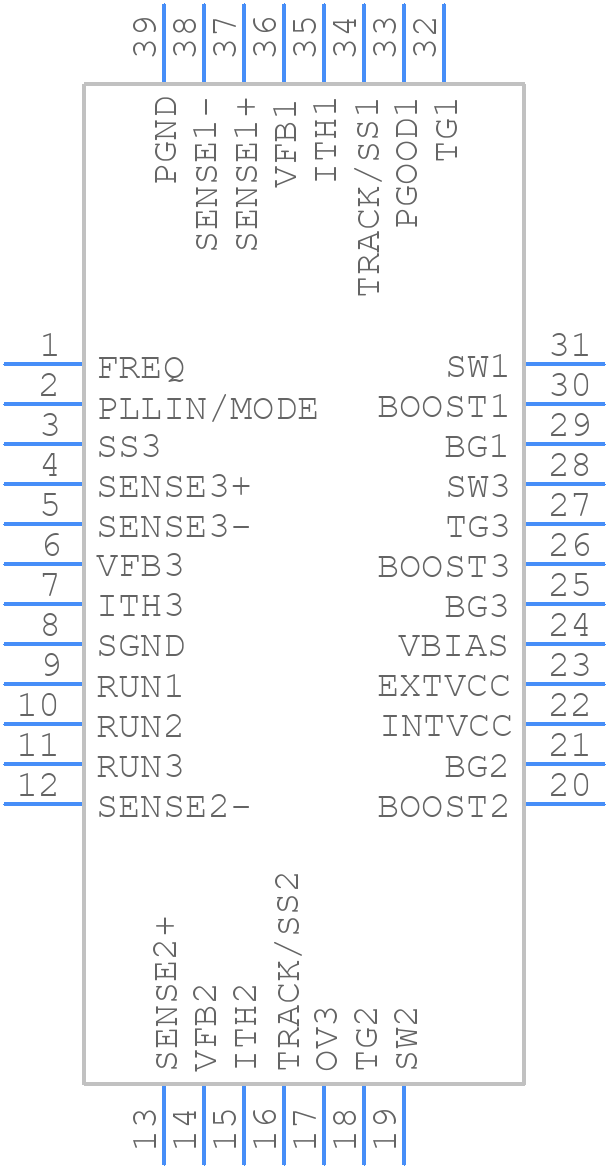

Part Symbol
-

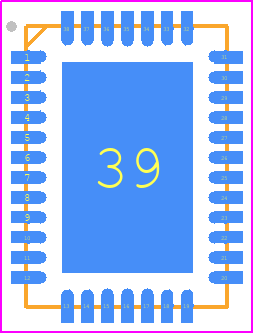

Footprint
-
