LTC6079IGN#PBF Information
LTC6079IGN#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC6079IGN#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7296
|
Newark | Op-Amp, 750Khz, -40 To 85Deg C, Ssop-16, No. Of Channels:4Channels, Gain Bandwidth Product:750Khz, Supply Voltage Range:2.7V To 5.5V, Ic Case/Package:Ssop, No. Of Pins:16Pins, Amplifier Type:Cmos, Input Offset Voltage:30Μv Rohs Compliant: Yes |Analog Devices LTC6079IGN#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$4.4900 / $9.9300 | Buy Now |
|
DISTI #
584-LTC6079IGN#PBF
|
Mouser Electronics | Precision Amplifiers uP Prec, 4x CMOS R2R In/Out Amps RoHS: Compliant | 538 |
|
$4.3600 / $9.6400 | Buy Now |
|
DISTI #
V36:1790_06491036
|
Arrow Electronics | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin SSOP N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2351 | Americas - 4 |
|
$4.1800 / $4.5570 | Buy Now |
|
|
Analog Devices Inc | uP Prec, 4x CMOS R2R In/Out Am Package Multiple: 100 | 1383 |
|
$3.4900 / $9.6400 | Buy Now |
|
DISTI #
42660755
|
Verical | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin SSOP N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 | Americas - 1300 |
|
$4.3166 | Buy Now |
|
DISTI #
91575902
|
Verical | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin SSOP N Tube RoHS: Compliant Min Qty: 4 Package Multiple: 4 Date Code: 2351 | Americas - 4 |
|
$4.1800 / $4.5570 | Buy Now |
|
DISTI #
V36:1790_06491036
|
Arrow Electronics | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin SSOP N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2351 | Americas - 4 |
|
$4.1800 / $4.5570 | Buy Now |
|
DISTI #
42660755
|
Verical | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin SSOP N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 | Americas - 1300 |
|
$4.3166 | Buy Now |
|
DISTI #
91575902
|
Verical | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin SSOP N Tube COO: Malaysia RoHS: Compliant Min Qty: 4 Package Multiple: 4 Date Code: 2351 | Americas - 4 |
|
$4.1800 / $4.5570 | Buy Now |
|
DISTI #
V36:1790_06491036
|
Arrow Electronics | Op Amp Quad Low Noise Amplifier R-R I/O 5.5V 16-Pin SSOP N Tube COO: Malaysia RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2351 | Americas - 4 |
|
$4.1800 / $4.5570 | Buy Now |
US Tariff Estimator: LTC6079IGN#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC6079IGN#PBF
LTC6079IGN#PBF CAD Models
-

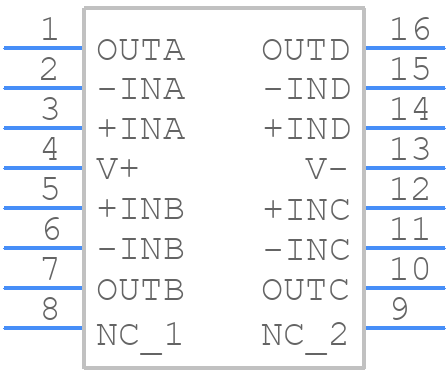

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC6079IGN#PBF Part Data Attributes
|
|
LTC6079IGN#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC6079IGN#PBF
Analog Devices Inc
Operational Amplifier, 4 Func, 115uV Offset-Max, CMOS, PDSO16
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | 0.150 Inch, Lead Free, Plastic, Ssop-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 05-08-1641 (GN16) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.00005 µA | |
| Bias Current-Max (IIB) @25C | 0.000001 µA | |
| Common-mode Reject Ratio-Min | 88 Db | |
| Common-mode Reject Ratio-Nom | 102 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 115 µV | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 4.8895 Mm | |
| Low-Bias | Yes | |
| Low-Offset | Yes | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | Yes | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Slew Rate-Nom | 0.05 V/Us | |
| Supply Current-Max | 0.312 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.635 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 750 | |
| Voltage Gain-Min | 562341.32 | |
| Wideband | No | |
| Width | 3.899 Mm |
