LTC6241CDD#PBF Information
LTC6241CDD#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC6241CDD#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7331
|
Newark | Op-Amp, 18Mhz, 0 To 70Deg C, Dfn-8, No. Of Channels:2Channels, Gain Bandwidth Product:18Mhz, Supply Voltage Range:2.8V To 6V, Ic Case/Package:Dfn, No. Of Pins:8Pins, Amplifier Type:Cmos, Rail To Rail:Rail - Rail Output (Rro) Rohs Compliant: Yes |Analog Devices LTC6241CDD#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 189 |
|
$1.9700 / $5.3000 | Buy Now |
|
DISTI #
LTC6241CDD#PBF-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8DFN Min Qty: 1 Lead time: 10 Weeks Container: Tube |
582 In Stock |
|
$1.9250 / $5.3000 | Buy Now |
|
DISTI #
584-LTC6241CDD#PBF
|
Mouser Electronics | Precision Amplifiers 2x 18MHz, L N, R2R Out, CMOS Op Amp RoHS: Compliant | 5883 |
|
$1.9700 / $5.3000 | Buy Now |
|
DISTI #
V36:1790_06491262
|
Arrow Electronics | Op Amp Dual Low Noise Amplifier R-R O/P 6V 8-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 242 Package Multiple: 121 Lead time: 10 Weeks Date Code: 2214 | Americas - 100 |
|
$0.8983 / $1.8445 | Buy Now |
|
|
Analog Devices Inc | 2x 18MHz, L N, R2R Out, CMOS O Package Multiple: 121 | 601 |
|
$1.5400 / $5.3000 | Buy Now |
|
DISTI #
69122649
|
Verical | Op Amp Dual Low Noise Amplifier R-R O/P 6V 8-Pin DFN EP Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2214 | Americas - 100 |
|
$0.8983 | Buy Now |
|
DISTI #
V36:1790_06491262
|
Arrow Electronics | Op Amp Dual Low Noise Amplifier R-R O/P 6V 8-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 242 Package Multiple: 121 Lead time: 10 Weeks Date Code: 2214 | Americas - 100 |
|
$0.8983 / $1.8445 | Buy Now |
|
DISTI #
69122649
|
Verical | Op Amp Dual Low Noise Amplifier R-R O/P 6V 8-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2214 | Americas - 100 |
|
$0.8983 | Buy Now |
|
DISTI #
V36:1790_06491262
|
Arrow Electronics | Op Amp Dual Low Noise Amplifier R-R O/P 6V 8-Pin DFN EP Tube COO: Thailand RoHS: Compliant Min Qty: 242 Package Multiple: 121 Lead time: 10 Weeks Date Code: 2214 | Americas - 100 |
|
$0.8983 / $1.8445 | Buy Now |
|
DISTI #
LTC6241CDD#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 242 | 0 |
|
$1.9900 / $2.1800 | Buy Now |
US Tariff Estimator: LTC6241CDD#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC6241CDD#PBF
LTC6241CDD#PBF CAD Models
-

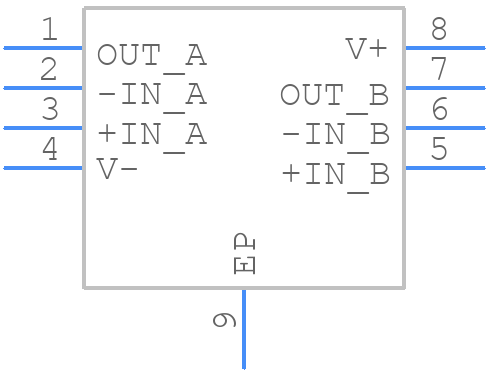

Part Symbol
-
Footprint
-

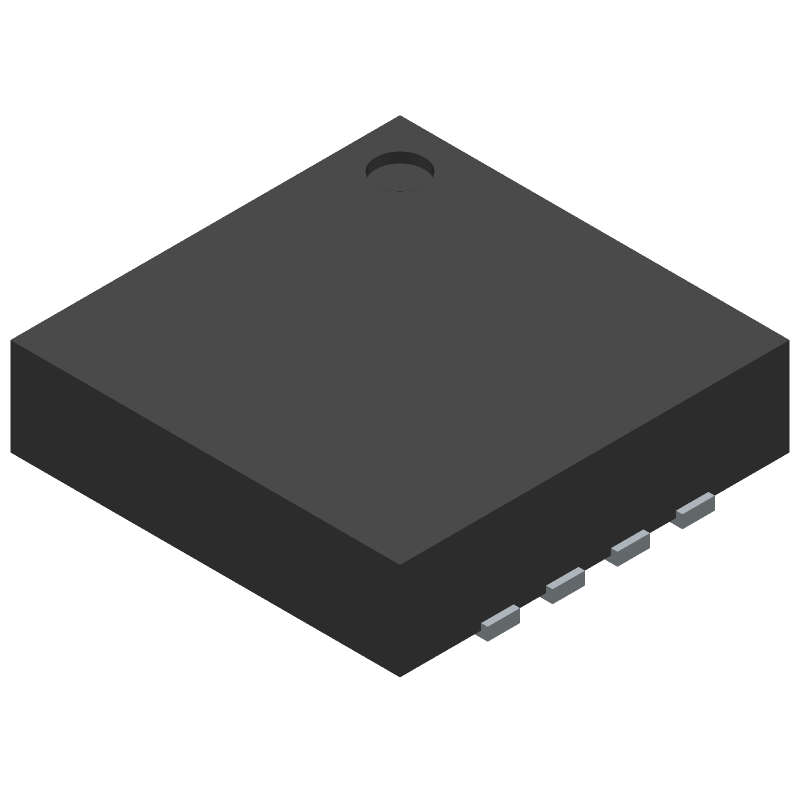

3D Model
