LTC6241HVCS8#PBF Information
LTC6241HVCS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LTC6241HVCS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK7333
|
Newark | Op-Amp, 18Mhz, 0 To 70Deg C, Soic-8, No. Of Channels:2Channels, Gain Bandwidth Product:18Mhz, Supply Voltage Range:2.8V To ± 5.5V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:Cmos, Rail To Rail:Rail - Rail Output (Rro) Rohs Compliant: Yes |Analog Devices LTC6241HVCS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 53 |
|
$3.3300 / $7.8900 | Buy Now |
|
DISTI #
LTC6241HVCS8#PBF-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8SO Min Qty: 1 Lead time: 10 Weeks Container: Tube |
57 In Stock |
|
$3.3250 / $7.8900 | Buy Now |
|
DISTI #
584-LTC6241HVCS8#PBF
|
Mouser Electronics | Precision Amplifiers 2x 18MHz, L N, R2R Out, CMOS Op Amp RoHS: Compliant | 2812 |
|
$3.4500 / $7.8900 | Buy Now |
|
|
Analog Devices Inc | 2x 18MHz, L N, R2R Out, CMOS O Package Multiple: 100 | 19 |
|
$2.6600 / $7.8900 | Buy Now |
|
DISTI #
90927030
|
Verical | Op Amp Dual Low Noise Amplifier R-R O/P ±5.5V/11V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 80 Package Multiple: 80 Date Code: 2516 | Americas - 80 |
|
$3.1200 | Buy Now |
|
DISTI #
90927030
|
Verical | Op Amp Dual Low Noise Amplifier R-R O/P ±5.5V/11V 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 80 Package Multiple: 80 Date Code: 2516 | Americas - 80 |
|
$3.1200 | Buy Now |
|
DISTI #
LTC6241HVCS8PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 100 | 0 |
|
$3.4400 / $3.7600 | Buy Now |
|
DISTI #
90927030
|
Verical | Op Amp Dual Low Noise Amplifier R-R O/P ±5.5V/11V 8-Pin SOIC N Tube COO: Malaysia RoHS: Compliant Min Qty: 80 Package Multiple: 80 Date Code: 2516 | Americas - 80 |
|
$3.1200 | Buy Now |
|
|
Chip Stock | LTC6241-Dual18MHz,LowNoise,Rail-to-RailOutput,CMOSOpAmp | 3300 |
|
RFQ |
US Tariff Estimator: LTC6241HVCS8#PBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC6241HVCS8#PBF
LTC6241HVCS8#PBF CAD Models
-

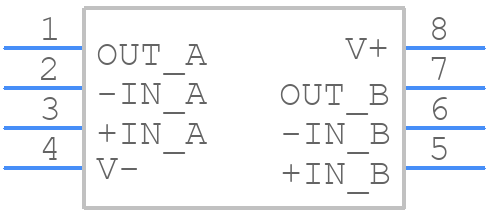

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC6241HVCS8#PBF Part Data Attributes
|
|
LTC6241HVCS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC6241HVCS8#PBF
Analog Devices Inc
Operational Amplifier, 2 Func, 275uV Offset-Max, CMOS, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | 0.150 Inch, Lead Free, Plastic, Sop-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.000075 µA | |
| Common-mode Reject Ratio-Min | 83 Db | |
| Common-mode Reject Ratio-Nom | 105 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 275 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Low-Bias | Yes | |
| Low-Offset | Yes | |
| Micropower | No | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.752 Mm | |
| Slew Rate-Min | 5.5 V/Us | |
| Slew Rate-Nom | 10 V/Us | |
| Supply Current-Max | 3.2 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 18000 | |
| Voltage Gain-Min | 600000 | |
| Wideband | Yes | |
| Width | 3.9 Mm |
