LTC6655BHMS8-2.5#TRPBF Information
LTC6655BHMS8-2.5#TRPBF by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for LTC6655BHMS8-2.5#TRPBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AK3947
|
Newark | Volt Ref, 2.5V, Msop-8, -40 To 125Deg C, Voltage Reference Type:Series, Product Range:Ltc6655 Series, Reference Voltage Min:2.49975V, Reference Voltage Max:2.50025V, Initial Accuracy:0.025%, Temperature Coefficient:2Ppm/°C Rohs Compliant: Yes |Analog Devices LTC6655BHMS8-2.5#TRPBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$9.0900 / $16.4700 | Buy Now |
|
DISTI #
505-LTC6655BHMS8-2.5#TRPBFCT-ND
|
DigiKey | IC VREF SERIES 0.025% 8MSOP Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
86 In Stock |
|
$9.0726 / $14.9000 | Buy Now |
|
DISTI #
584-C6655BHMS82.5TPF
|
Mouser Electronics | Voltage References 0.25ppm N, L Drift Prec Refs RoHS: Compliant | 0 |
|
$8.5500 / $15.9900 | Order Now |
|
|
Analog Devices Inc | 0.25ppm N, L Drift Prec Refs Min Qty: 1 Package Multiple: 2500 | 18 |
|
$6.8400 / $15.9900 | Buy Now |
|
DISTI #
LTC6655BHM82.5T
|
Richardson RFPD | VOLTAGE REFERENCE RoHS: Compliant Min Qty: 2500 | 0 |
|
$8.8300 / $9.1800 | Buy Now |
|
|
Chip Stock | V-RefPrecision2.5V5mAAutomotive8-PinMSOPT/R | 7020 |
|
RFQ | |
|
|
Win Source Electronics | IC VREF SERIES 0.025% 8MSOP | 5410 |
|
$7.8858 / $10.1857 | Buy Now |
US Tariff Estimator: LTC6655BHMS8-2.5#TRPBF by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for LTC6655BHMS8-2.5#TRPBF
LTC6655BHMS8-2.5#TRPBF CAD Models
-

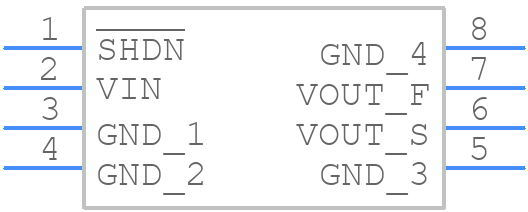

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
LTC6655BHMS8-2.5#TRPBF Part Data Attributes
|
|
LTC6655BHMS8-2.5#TRPBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LTC6655BHMS8-2.5#TRPBF
Analog Devices Inc
Three Terminal Voltage Reference, 1 Output, 2.5V, CMOS, PDSO8
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Tssop, Tssop8,.19 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1660 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Analog IC - Other Type | Three Terminal Voltage Reference | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 2.5006 V | |
| Output Voltage-Min | 2.4993 V | |
| Output Voltage-Nom | 2.5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Square | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 Mm | |
| Supply Current-Max (Isup) | 7.5 Ma | |
| Supply Voltage-Max (Vsup) | 13.2 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temp Coef of Voltage-Max | 2 Ppm/°C | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | No | |
| Voltage Tolerance-Max | 0.025% | |
| Width | 3 Mm |
Alternate Parts for LTC6655BHMS8-2.5#TRPBF
This table gives cross-reference parts and alternative options found for LTC6655BHMS8-2.5#TRPBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LTC6655BHMS8-2.5#TRPBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| REF7025QFKHT | Texas Instruments | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.5V, CQCC8 | LTC6655BHMS8-2.5#TRPBF vs REF7025QFKHT |
| REF7012QFKHT | Texas Instruments | Check for Price | Three Terminal Voltage Reference, 1 Output, 1.25V, CQCC8 | LTC6655BHMS8-2.5#TRPBF vs REF7012QFKHT |
LTC6655BHMS8-2.5#TRPBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LTC6655BHMS8-2.5 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the voltage reference output and the ADC input. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure the accuracy of the voltage reference output, it is essential to decouple the input voltage with a 10uF capacitor, use a low-noise power supply, and minimize the thermal gradient across the device. Additionally, the device should be operated within its specified temperature range.
-
The recommended input voltage range for the LTC6655BHMS8-2.5 is 4.5V to 18V. Operating the device outside this range may affect its performance and accuracy.
-
To minimize the noise sensitivity of the LTC6655BHMS8-2.5, use a low-noise power supply, decouple the input voltage, and keep the device away from high-frequency noise sources. Additionally, use a shielded cable for the voltage reference output to minimize electromagnetic interference.
-
The thermal derating of the LTC6655BHMS8-2.5 is 1.67mW/°C above 25°C. This means that the device's power dissipation should be reduced by 1.67mW for every degree Celsius above 25°C to prevent overheating.
