Part Details for M24128-BFMN6TP by STMicroelectronics
Results Overview of M24128-BFMN6TP by STMicroelectronics
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
M24128-BFMN6TP Information
M24128-BFMN6TP by STMicroelectronics is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for M24128-BFMN6TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM3930
|
Newark | Gp Eeprom_Mm |Stmicroelectronics M24128-BFMN6TP RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 5000 |
|
$0.1650 | Buy Now |
|
DISTI #
30AJ5836
|
Newark | Eeprom, 128Kbit, -40 To 85Deg C Rohs Compliant: Yes |Stmicroelectronics M24128-BFMN6TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 175 |
|
$0.3010 / $0.3510 | Buy Now |
|
DISTI #
497-M24128-BFMN6TPCT-ND
|
DigiKey | IC EEPROM 128KBIT I2C 8SOIC Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2500 In Stock |
|
$0.2368 / $0.3200 | Buy Now |
|
DISTI #
M24128-BFMN6TP
|
Avnet Americas | EEPROM, 128 Kbit, 16K x 8bit, I2C, 1 MHz, NSOIC, 8 Pins - Tape and Reel (Alt: M24128-BFMN6TP) COO: Singapore RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 4 Weeks, 0 Days Container: Tape & Reel | 5000 |
|
$0.1610 / $0.1643 | Buy Now |
|
DISTI #
511-M24128-BFMN6TP
|
Mouser Electronics | EEPROM 128 Kbit Serial I2C Bus EEPROM RoHS: Compliant | 3842 |
|
$0.1780 / $0.2800 | Buy Now |
|
DISTI #
V36:1790_17578115
|
Arrow Electronics | EEPROM Serial-I2C 128K-bit 16K x 8 1.8V/2.5V/3.3V/5V 8-Pin SO N T/R COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 9 Weeks Date Code: 2443 | Americas - 10000 |
|
$0.1657 / $0.1735 | Buy Now |
|
|
STMicroelectronics | 128 Kbit Serial I2C Bus EEPROM COO: France RoHS: Compliant Min Qty: 1 | 3843 |
|
$0.2300 / $0.2700 | Buy Now |
|
|
Future Electronics | EEPROM 128 Kbit Serial I2C Bus EEPROM RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Container: Reel | 5000Reel |
|
$0.1590 | Buy Now |
|
DISTI #
86941166
|
Verical | EEPROM Serial-I2C 128K-bit 16K x 8 1.8V/2.5V/3.3V/5V 8-Pin SO N T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Date Code: 2443 | Americas - 10000 |
|
$0.1657 / $0.1735 | Buy Now |
|
DISTI #
V36:1790_17578115
|
Arrow Electronics | EEPROM Serial-I2C 128K-bit 16K x 8 1.8V/2.5V/3.3V/5V 8-Pin SO N T/R COO: China RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 9 Weeks Date Code: 2443 | Americas - 10000 |
|
$0.1657 / $0.1735 | Buy Now |
US Tariff Estimator: M24128-BFMN6TP by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for M24128-BFMN6TP
M24128-BFMN6TP CAD Models
-

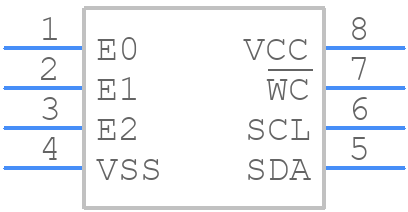

Part Symbol
-

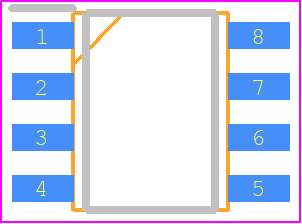

Footprint
-

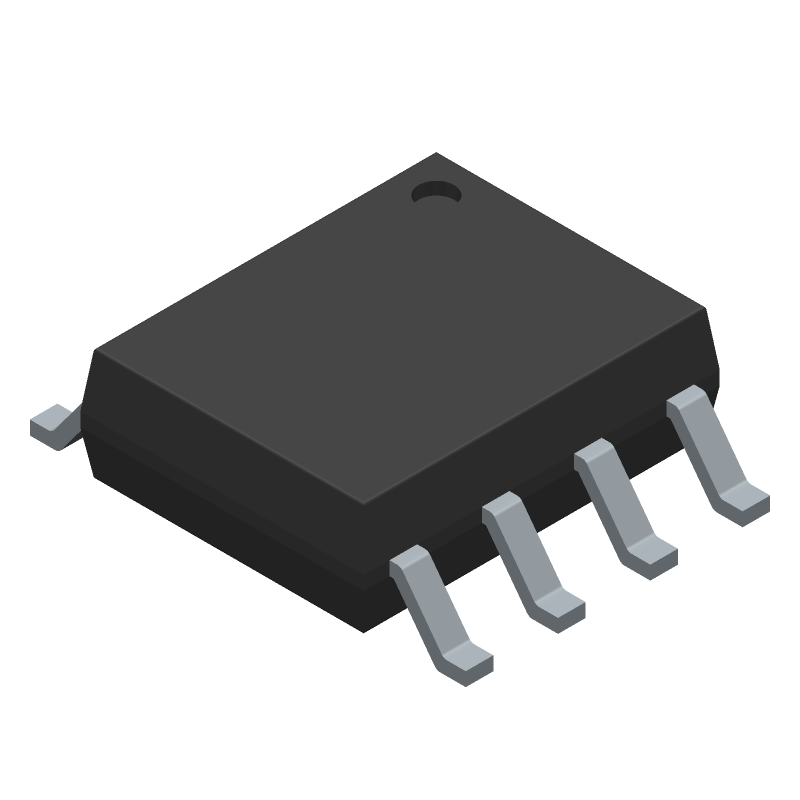

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
M24128-BFMN6TP Part Data Attributes
|
|
M24128-BFMN6TP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
M24128-BFMN6TP
STMicroelectronics
EEPROM, 16KX8, Serial, CMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sop-8 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 4 Weeks | |
| Clock Frequency-Max (fCLK) | 1 Mhz | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 Mm | |
| Memory Density | 131072 Bit | |
| Memory IC Type | Eeprom | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 16384 Words | |
| Number of Words Code | 16000 | |
| Operating Mode | Synchronous | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 16kx8 | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Parallel/Serial | Serial | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 Mm | |
| Serial Bus Type | I2c | |
| Supply Current-Max | 0.0025 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.7 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Width | 3.9 Mm | |
| Write Cycle Time-Max (tWC) | 5 Ms |
Alternate Parts for M24128-BFMN6TP
This table gives cross-reference parts and alternative options found for M24128-BFMN6TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M24128-BFMN6TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AT24C128C-SSHM-B | Microchip Technology Inc | $0.3003 | 1.7-5.5V, 1MHz, Ind Temp, 8-SOIC-N | M24128-BFMN6TP vs AT24C128C-SSHM-B |
| M24128-BRMN6/B | STMicroelectronics | Check for Price | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 | M24128-BFMN6TP vs M24128-BRMN6/B |
| R1EX24128ASA00I | Renesas Electronics Corporation | Check for Price | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 3.90 X 4.89 MM, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOP-8 | M24128-BFMN6TP vs R1EX24128ASA00I |
| 24FC128T-I/SN | Microchip Technology Inc | Check for Price | 128K, 16K X 8, 2.5V SER EE | M24128-BFMN6TP vs 24FC128T-I/SN |
| M24128-BFMN5P/P | STMicroelectronics | Check for Price | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | M24128-BFMN6TP vs M24128-BFMN5P/P |
| GT24C128-2GLI-TR | Giantec Semiconductor Inc | Check for Price | EEPROM, 16KX8, Serial, CMOS, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, SOIC-8 | M24128-BFMN6TP vs GT24C128-2GLI-TR |
| M24128-BFMN6TP/K | STMicroelectronics | Check for Price | 16K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SOP-8 | M24128-BFMN6TP vs M24128-BFMN6TP/K |
| M24128-BRMN6/C | STMicroelectronics | Check for Price | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOP-8 | M24128-BFMN6TP vs M24128-BRMN6/C |
| 24FC128T/SN | Microchip Technology Inc | Check for Price | EEPROM, 16KX8, Serial, CMOS, PDSO8 | M24128-BFMN6TP vs 24FC128T/SN |
| M24128-BRMN5TG/P | STMicroelectronics | Check for Price | 16KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, SOP-8 | M24128-BFMN6TP vs M24128-BRMN5TG/P |
M24128-BFMN6TP Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for the M24128-BFMN6TP is -40°C to +125°C.
-
To prevent damage, it is recommended to use a soldering iron with a temperature of 260°C (500°F) or less, and to avoid applying excessive force or bending the pins.
-
The maximum operating frequency of the M24128-BFMN6TP is 10 MHz.
-
Yes, the M24128-BFMN6TP is designed to operate in a wide range of humidity levels, but it's recommended to follow proper humidity protection measures to prevent moisture-related issues.
-
To ensure data retention, it is recommended to follow the recommended storage conditions, avoid exposing the device to extreme temperatures, and use a backup power source if possible.
