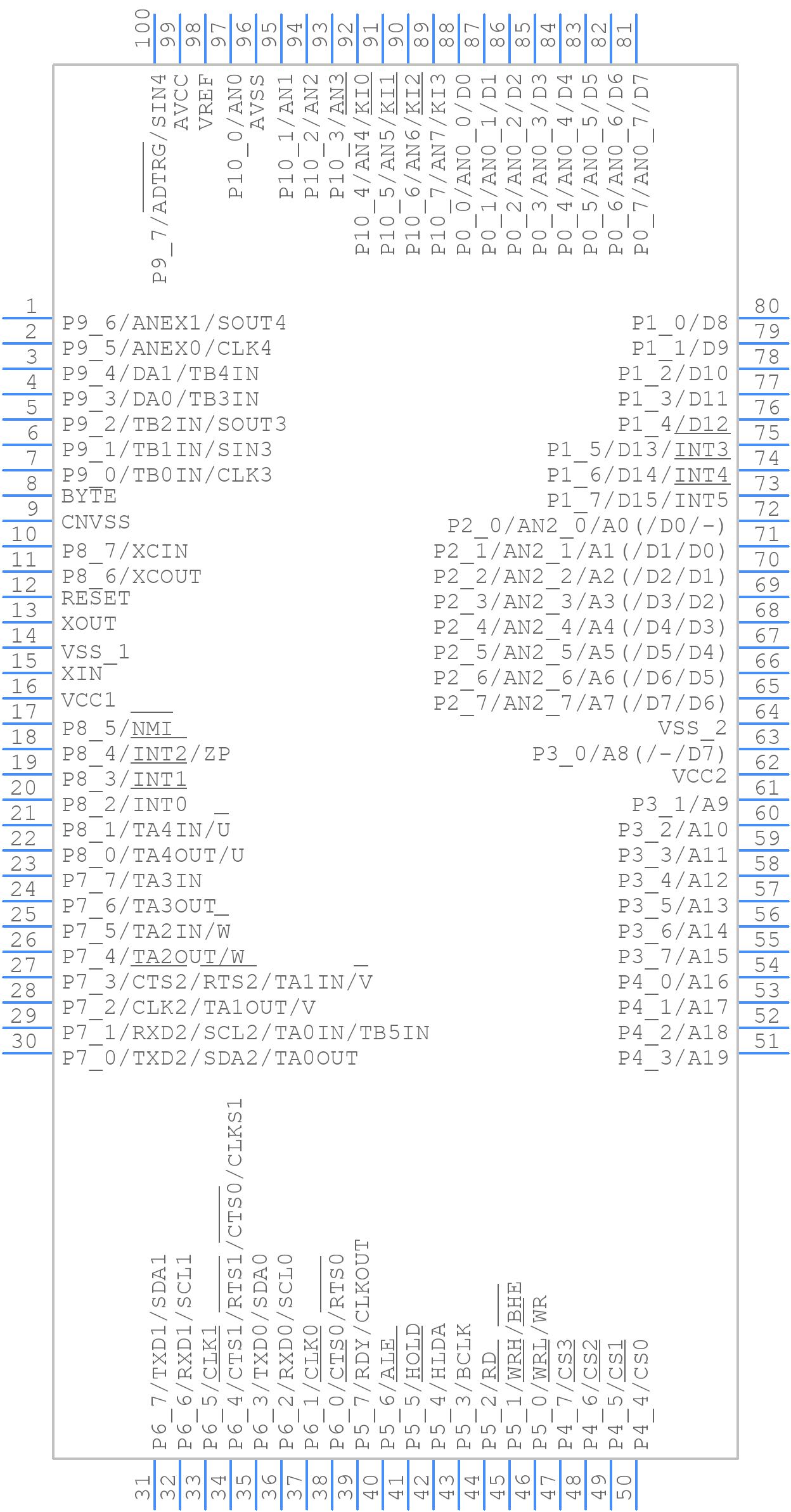

Part Symbol
-

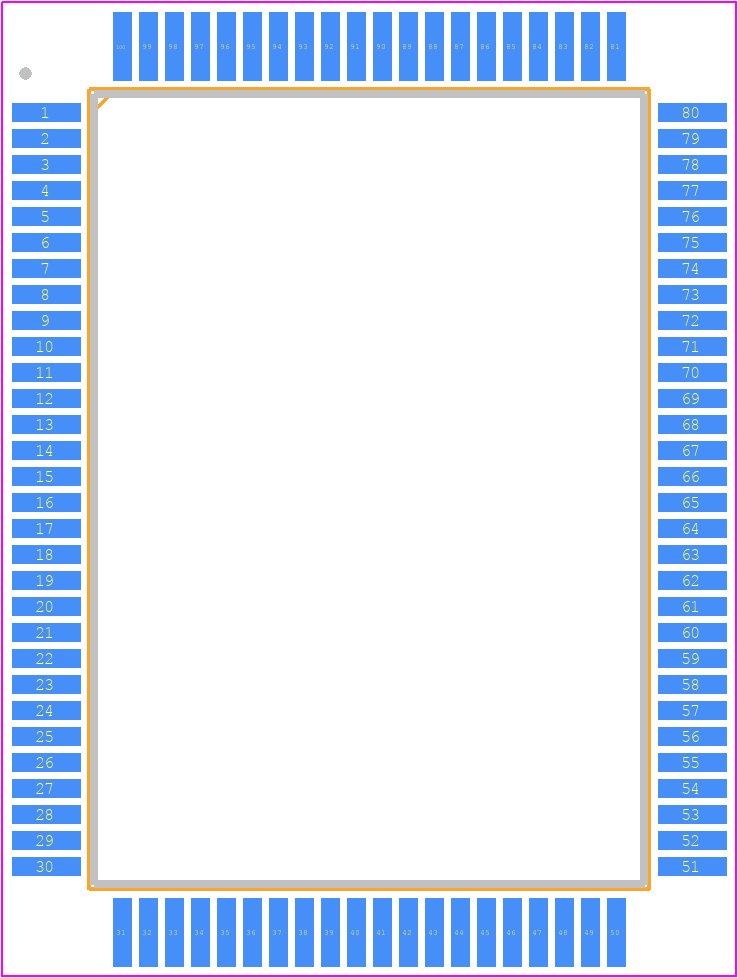

Footprint
-

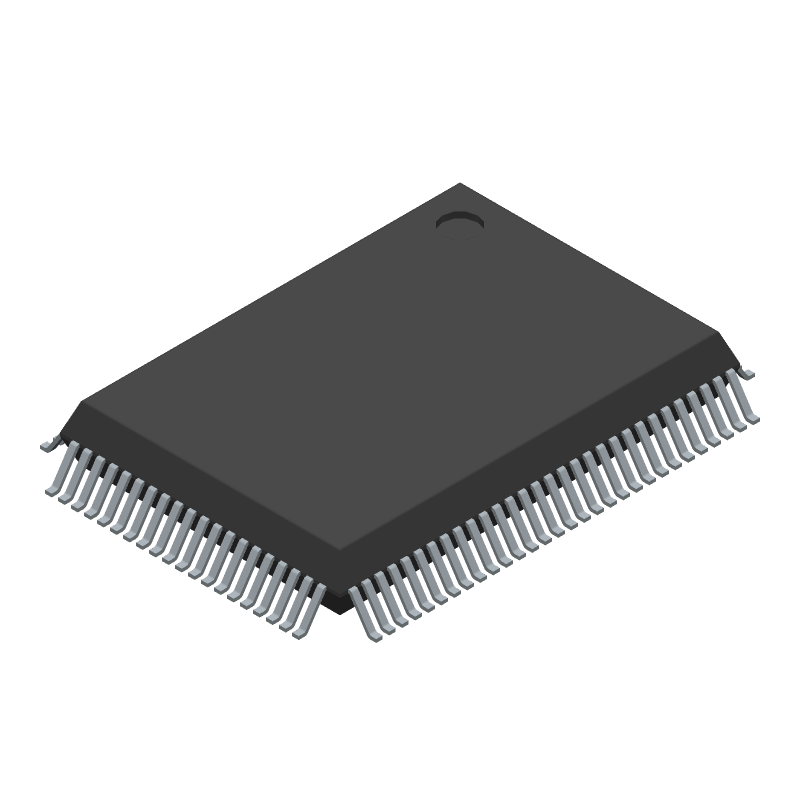

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
16-bit Microcomputers (Non Promotion), QFP, /
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
23AH3317
|
Newark | Mcu, 16Bit, 24Mhz, Qfp-100, Product Range:M16C Family, M16C/60 Series, M16C/62P Group Microcontrollers, Device Core:M16C/60, Data Bus Width:16 Bit, Operating Frequency Max:24Mhz, Program Memory Size:512Kb, No. Of Pins:100Pins Rohs Compliant: Yes |Renesas M30626FJPFP#U3C Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 179 |
|
$29.1600 / $39.1400 | Buy Now |
DISTI #
M30626FJPFP#U3C-ND
|
DigiKey | IC MCU 16BIT 512KB FLASH 100QFP Min Qty: 66 Lead time: 12 Weeks Container: Tray | Limited Supply - Call |
|
$39.1395 | Buy Now |
DISTI #
M30626FJPFP#U3C
|
Avnet Americas | MCU 16-bit M16C CISC 512KB Flash 3.3V/5V 100-Pin PQFP - Trays (Alt: M30626FJPFP#U3C) RoHS: Compliant Min Qty: 66 Package Multiple: 66 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$30.7594 / $35.1190 | Buy Now |
DISTI #
968-M30626FJPFP#U3C
|
Mouser Electronics | 16-bit Microcontrollers - MCU MCU 3/5V 512K I-temp Pb-free 100 QFP RoHS: Compliant | 0 |
|
Order Now | |
|
Future Electronics | 16-bit Microcontrollers - MCU MCU 3/5V 512K I-temp Pb-free 100 QFP RoHS: Compliant pbFree: Yes Min Qty: 66 Package Multiple: 66 Lead time: 12 Weeks Container: Tray | 0Tray |
|
$33.7200 / $35.4100 | Buy Now |
|
Future Electronics | 16-bit Microcontrollers - MCU MCU 3/5V 512K I-temp Pb-free 100 QFP RoHS: Compliant pbFree: Yes Min Qty: 66 Package Multiple: 66 Lead time: 12 Weeks Container: Tray | 0Tray |
|
$33.7200 / $34.0700 | Buy Now |
|
GLYN GmbH & Co. KG | 16B.uC 512KFlash 31K Ram QFP100/0,65 -40/+85øC 24 | 3953 |
|
RFQ | |
DISTI #
M30626FJPFP#U3C
|
Avnet Silica | MCU 16-bit M16C CISC 512KB Flash 3.3V/5V 100-Pin PQFP (Alt: M30626FJPFP#U3C) RoHS: Compliant Min Qty: 66 Package Multiple: 66 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
Chip1Cloud | IC MCU 16BIT 512KB FLASH 100QFP | 1650 |
|
RFQ | |
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 1 | 5 |
|
$45.7800 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
M30626FJPFP#U3C
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
M30626FJPFP#U3C
Renesas Electronics Corporation
16-bit Microcomputers (Non Promotion), QFP, /
|
Pbfree Code | Yes | |
Rohs Code | Yes | |
Part Life Cycle Code | Not Recommended | |
Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
Part Package Code | QFP | |
Package Description | QFP, QFP100,.7X.9 | |
Pin Count | 100 | |
Manufacturer Package Code | PRQP0100JD | |
Reach Compliance Code | compliant | |
HTS Code | 8542.31.00.01 | |
Factory Lead Time | 12 Weeks | |
Samacsys Manufacturer | Renesas Electronics | |
Has ADC | YES | |
Additional Feature | ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 10 MHZ | |
Address Bus Width | 20 | |
Bit Size | 16 | |
Boundary Scan | NO | |
CPU Family | M16C | |
Clock Frequency-Max | 16 MHz | |
DAC Channels | YES | |
DMA Channels | YES | |
External Data Bus Width | 16 | |
JESD-30 Code | R-PQFP-G100 | |
Length | 20 mm | |
Moisture Sensitivity Level | 3 | |
Number of I/O Lines | 88 | |
Number of Terminals | 100 | |
On Chip Program ROM Width | 8 | |
Operating Temperature-Max | 85 °C | |
Operating Temperature-Min | -20 °C | |
PWM Channels | YES | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | QFP | |
Package Equivalence Code | QFP100,.7X.9 | |
Package Shape | RECTANGULAR | |
Package Style | FLATPACK | |
Qualification Status | Not Qualified | |
RAM (bytes) | 31744 | |
ROM (words) | 524288 | |
ROM Programmability | FLASH | |
Seated Height-Max | 3.05 mm | |
Speed | 24 MHz | |
Supply Current-Max | 27 mA | |
Supply Voltage-Max | 5.5 V | |
Supply Voltage-Min | 4.2 V | |
Supply Voltage-Nom | 5 V | |
Surface Mount | YES | |
Technology | CMOS | |
Temperature Grade | OTHER | |
Terminal Form | GULL WING | |
Terminal Pitch | 0.65 mm | |
Terminal Position | QUAD | |
Width | 14 mm | |
uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
This table gives cross-reference parts and alternative options found for M30626FJPFP#U3C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of M30626FJPFP#U3C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Description | Manufacturer | Compare |
---|---|---|---|
M30622MEP-XXXFP#D3 | 16-bit Microcomputers (Non Promotion), QFP, / | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30622MEP-XXXFP#D3 |
M30624SPGP#U5C | 16-bit Microcomputers (Non Promotion), LQFP, /Tray/Embossed tape | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30624SPGP#U5C |
M30622SPFP#U3C | 16-bit Microcomputers (Non Promotion), QFP, / | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30622SPFP#U3C |
M30624FGPFP#D9C | 16-bit Microcomputers (Non Promotion), QFP, / | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30624FGPFP#D9C |
M3062CM6T-XXXGP#UF | M3062CM6T-XXXGP#UF | Renesas Electronics Corporation | M30626FJPFP#U3C vs M3062CM6T-XXXGP#UF |
M30626FJPGP#D5C | 16-bit Microcomputers (Non Promotion), LQFP, /Tray/Embossed tape | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30626FJPGP#D5C |
M30620SPGP#D3C | 16-bit Microcomputers (Non Promotion), LQFP, /Tray/Embossed tape | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30620SPGP#D3C |
M30622MWP-XXXFP#D3 | 16-bit Microcomputers (Non Promotion), QFP, / | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30622MWP-XXXFP#D3 |
M30622M6P-XXXFP#U3 | 16-bit Microcomputers (Non Promotion), QFP, / | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30622M6P-XXXFP#U3 |
M30626MWP-XXXGP#U3 | 16-bit Microcomputers (Non Promotion), LQFP, /Tray/Embossed tape | Renesas Electronics Corporation | M30626FJPFP#U3C vs M30626MWP-XXXGP#U3 |
