MAX1480BCPI+ Information
MAX1480BCPI+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX1480BCPI+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75Y6301
|
Newark | Transceiver, 0 To 70Deg C, Ic Type:Isolated Rs422/Rs485 Transceiver, No. Of Receivers:1Receivers, No. Of Transmitters:1, Communication Mode:Half Duplex, Data Rate Max:250Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices MAX1480BCPI+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 818 |
|
$28.6000 / $39.7600 | Buy Now |
|
DISTI #
700-MAX1480BCPI
|
Mouser Electronics | RS-422/RS-485 Interface IC Complete, Isolated RS-485/RS-422 Data In RoHS: Compliant | 505 |
|
$27.7600 / $39.7600 | Buy Now |
|
|
Analog Devices Inc | Complete, Isolated RS-485/RS-4 Package Multiple: 1 | 464 |
|
$20.0700 / $39.9800 | Buy Now |
|
DISTI #
MAX1480BCPI+
|
TME | IC: interface, transceiver, half duplex,RS422,RS485, 250kbps Min Qty: 1 | 0 |
|
$22.2000 / $29.1000 | RFQ |
|
|
Chip Stock | LineTransceiver,1Func,1Driver,1Rcvr,Hybrid,PDIP28 | 3500 |
|
RFQ |
US Tariff Estimator: MAX1480BCPI+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX1480BCPI+
MAX1480BCPI+ CAD Models
-

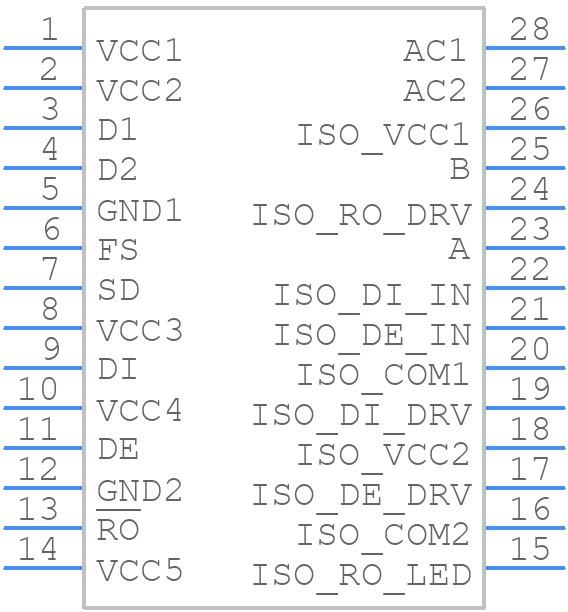

Part Symbol
-

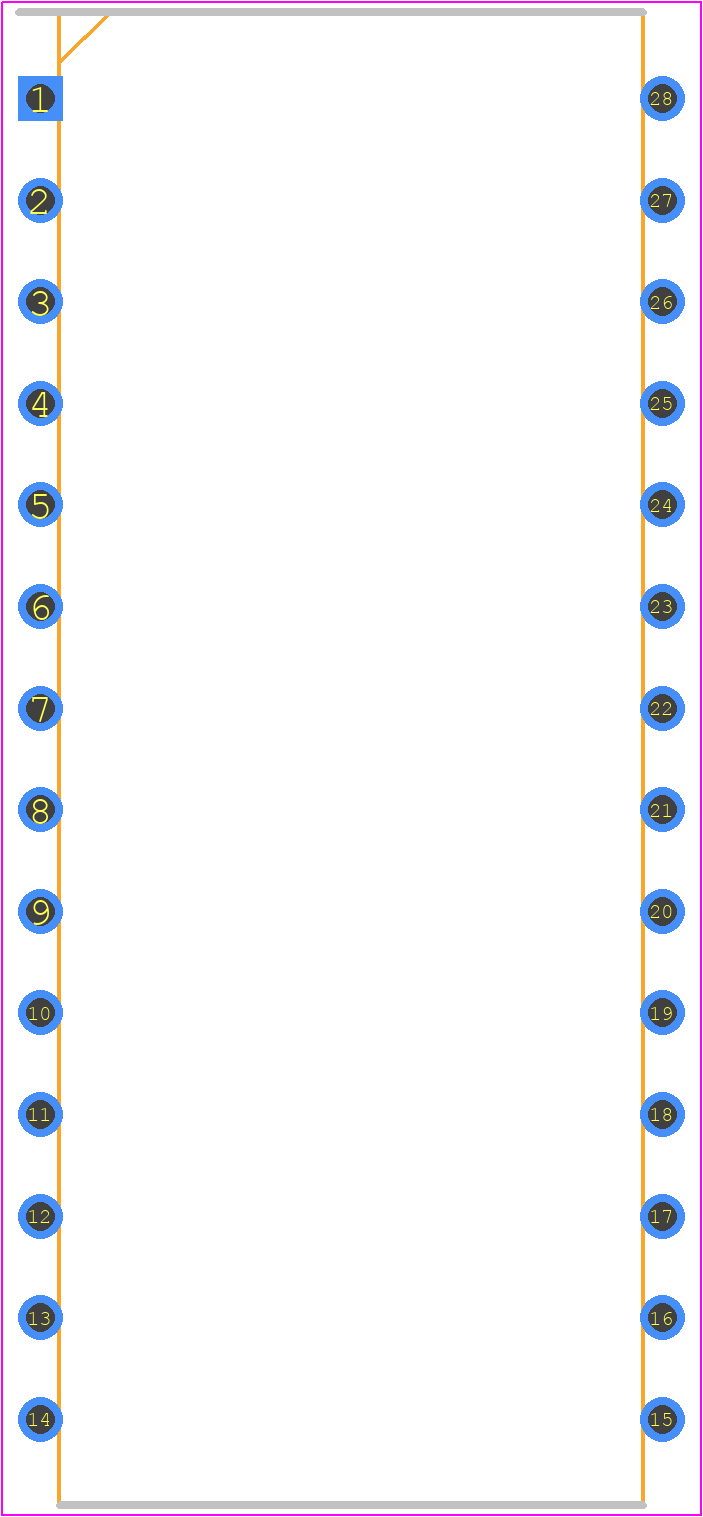

Footprint
-

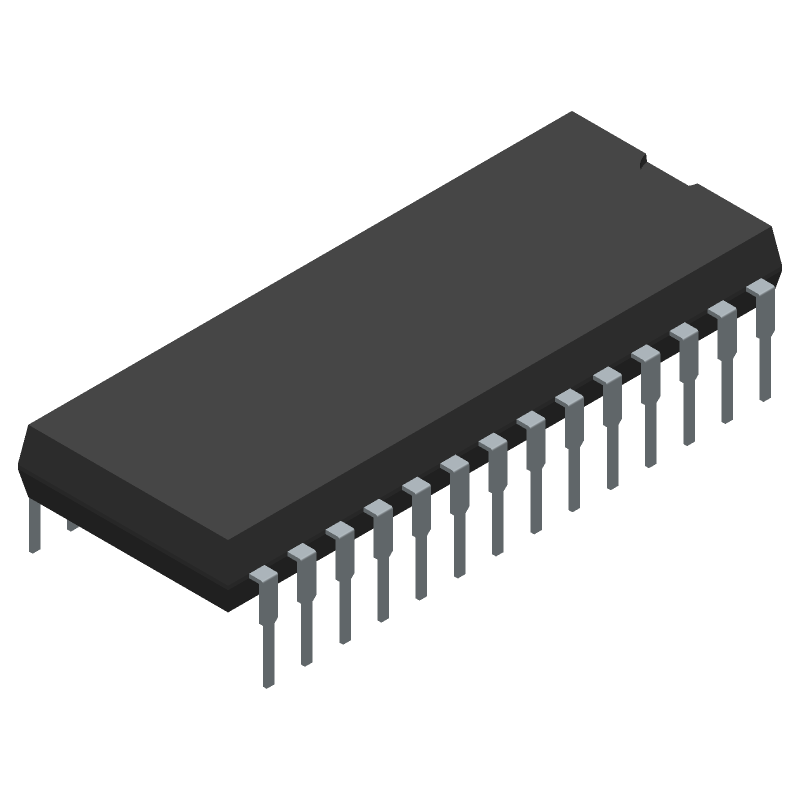

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX1480BCPI+ Part Data Attributes
|
|
MAX1480BCPI+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX1480BCPI+
Analog Devices Inc
Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, Hybrid, PDIP28
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 28-PDIP-600_MIL | |
| Package Description | Dip, Dip28,.6 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 28-PDIP-600_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1999-05-27 | |
| Additional Feature | Common I/O; Isolated Data Interface | |
| Differential Output | Yes | |
| Driver Number of Bits | 1 | |
| Input Characteristics | Differential Schmitt Trigger | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-422; Eia-485 | |
| JESD-30 Code | R-PDIP-T28 | |
| JESD-609 Code | e3 | |
| Length | 36.83 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 1.5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP28,.6 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 3000 Ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 5.08 Mm | |
| Supply Current-Max | 45 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | No | |
| Technology | Hybrid | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 3000 Ns | |
| Width | 15.24 Mm |
