MAX14930BASE+ Information
MAX14930BASE+ by Analog Devices Inc is an Other Interface IC.
Other Interface ICs are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX14930BASE+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX14930BASE+
|
Mouser Electronics | Digital Isolators 4 channel (4/0 config.), 25Mbps, 2.5kVrm RoHS: Compliant | 725 |
|
$3.1700 / $5.6600 | Buy Now |
|
|
Analog Devices Inc | 4 channel (4/0 config.), 25Mbp Package Multiple: 1 | 14499 |
|
$3.1773 / $5.6600 | Buy Now |
US Tariff Estimator: MAX14930BASE+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX14930BASE+
MAX14930BASE+ CAD Models
-

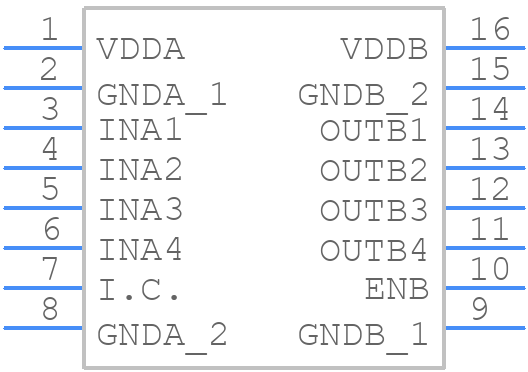

Part Symbol
-

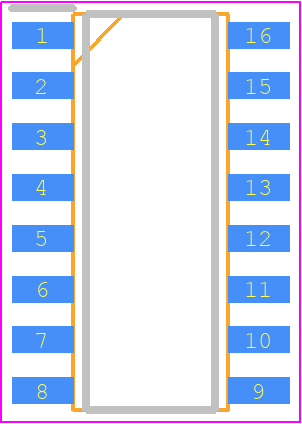

Footprint
-

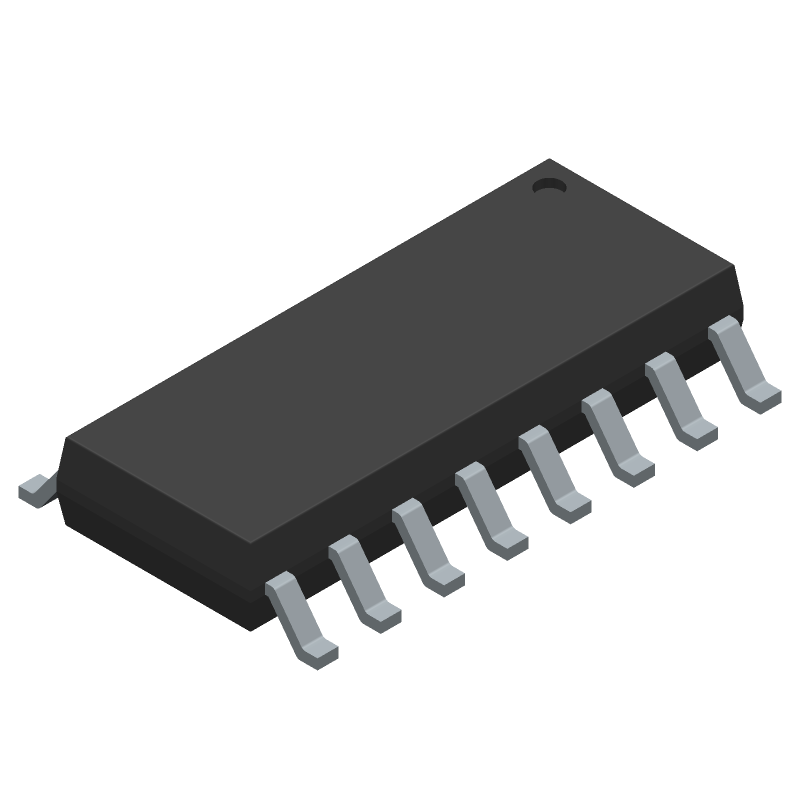

3D Model
