MAX232ECWE+ Information
MAX232ECWE+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX232ECWE+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX232ECWE
|
Mouser Electronics | RS-232 Interface IC 15kV ESD-Protected, +5V RS-232 Transceivers RoHS: Compliant | 1637 |
|
$4.7000 / $7.7700 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, +5V RS-23 Package Multiple: 1 | 32 |
|
$3.3400 / $7.7700 | Buy Now |
|
DISTI #
MAX232ECWE+
|
TME | IC: interface, transceiver, full duplex,RS232, 120kbps, SO16-W Min Qty: 1 | 0 |
|
$9.1700 / $14.4000 | RFQ |
US Tariff Estimator: MAX232ECWE+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX232ECWE+
MAX232ECWE+ CAD Models
-

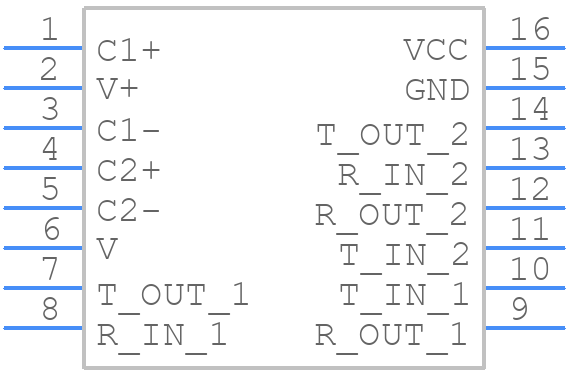

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX232ECWE+ Part Data Attributes
|
|
MAX232ECWE+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX232ECWE+
Analog Devices Inc
Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 16-SOIC_W-300_MIL | |
| Package Description | Sop, Sop16,.4 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-SOIC_W-300_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1995-09-27 | |
| Additional Feature | External Charge Pump | |
| Differential Output | No | |
| Driver Number of Bits | 2 | |
| High Level Input Current-Max | 0.0002 A | |
| Input Characteristics | Schmitt Trigger | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | Eia-232-E; Tia-232-E; V.28 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 10 V | |
| Output Characteristics | Totem-Pole | |
| Output Low Current-Max | 0.0032 A | |
| Output Polarity | Inverted | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 10000 Ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 2.65 Mm | |
| Supply Current-Max | 10 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 Mm |
Alternate Parts for MAX232ECWE+
This table gives cross-reference parts and alternative options found for MAX232ECWE+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX232ECWE+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX232EEPE+ | Analog Devices Inc | $11.7911 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16 | MAX232ECWE+ vs MAX232EEPE+ |
| MAX232ECPE+ | Analog Devices Inc | $7.0538 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16 | MAX232ECWE+ vs MAX232ECPE+ |
| MAX202EEPE | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16 | MAX232ECWE+ vs MAX202EEPE |
| MAX202ECWE | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16 | MAX232ECWE+ vs MAX202ECWE |
| MAX202ECWE+T | Analog Devices Inc | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16 | MAX232ECWE+ vs MAX202ECWE+T |
MAX232ECWE+ Frequently Asked Questions (FAQ)
-
The MAX232ECWE+ can support data rates up to 120 kbps, but it's recommended to limit the data rate to 100 kbps for reliable operation.
-
Yes, the MAX232ECWE+ can operate with a supply voltage as low as 3V, but the output voltage swing will be reduced, and the device may not meet the RS-232 specification.
-
The MAX232ECWE+ requires a 0.1uF capacitor between VCC and GND, and a 10uF capacitor between T1OUT and GND for proper termination. Additionally, the device should be decoupled with a 0.01uF capacitor between VCC and GND.
-
The 1uF capacitor between V+ and V- is used to filter the internal voltage doubler and inverter circuits, and to reduce noise and ripple on the output voltages.
-
No, the MAX232ECWE+ is designed for point-to-point RS-232 applications only. For multi-point applications, a different device such as the MAX2490 should be used.
