Drivers And Interfaces / Line Driver or Receivers / MAX3223IDW
Datasheets
packagee
MAX3223IDW by:
Texas Instruments

Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20

Part Details for MAX3223IDW by Texas Instruments

Results Overview of MAX3223IDW by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MAX3223IDW Information

MAX3223IDW by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
MAX3223IDW Texas Instruments 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver 20-SOIC -40 to 85
MAX3223IDWR Texas Instruments 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver 20-SOIC -40 to 85

Price & Stock for MAX3223IDW

Part # Distributor Description Stock Price Buy
DISTI # 2156-MAX3223IDW-ND
DigiKey IC TRANSCEIVER FULL 2/2 20SOIC Min Qty: 135 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 556
In Stock
  • 135 $2.2300
$2.2300 Buy Now
DISTI # MAX3223IDW-ND
DigiKey IC TRANSCEIVER FULL 2/2 20SOIC Min Qty: 135 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 500 $2.4963
$2.4963 Buy Now
DISTI # 595-MAX3223IDW
Mouser Electronics RS-232 Interface IC 3-5.5V Multichannel Line Drvr/Rcvr A 595 A 595-MAX3223IDWR RoHS: Compliant 0
  • 500 $2.0400
  • 1,000 $1.9900
  • 2,500 $1.9500
$1.9500 / $2.0400 Order Now
DISTI # 86280254
Verical Dual Transmitter/Receiver RS-232 20-Pin SOIC Tube RoHS: Compliant Min Qty: 178 Package Multiple: 1 Date Code: 0501 Americas - 350
  • 178 $2.1125
  • 500 $2.0000
  • 1,000 $1.8875
  • 10,000 $1.7750
$1.7750 / $2.1125 Buy Now
DISTI # 90936741
Verical Dual Transmitter/Receiver RS-232 20-Pin SOIC Tube RoHS: Compliant Min Qty: 178 Package Multiple: 1 Date Code: 0401 Americas - 197
  • 178 $2.1125
  • 500 $2.0000
  • 1,000 $1.8875
  • 10,000 $1.7750
$1.7750 / $2.1125 Buy Now
Bristol Electronics Dual Transmitter/Receiver RS-232 20-Pin SOIC Tube 29
RFQ
Rochester Electronics Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 RoHS: Compliant Status: Active Min Qty: 1 556
  • 25 $1.7800
  • 100 $1.6900
  • 500 $1.6000
  • 1,000 $1.5100
  • 10,000 $1.4200
$1.4200 / $1.7800 Buy Now
Vyrian Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 7573
RFQ

US Tariff Estimator: MAX3223IDW by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MAX3223IDW
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MAX3223IDW

MAX3223IDW CAD Models

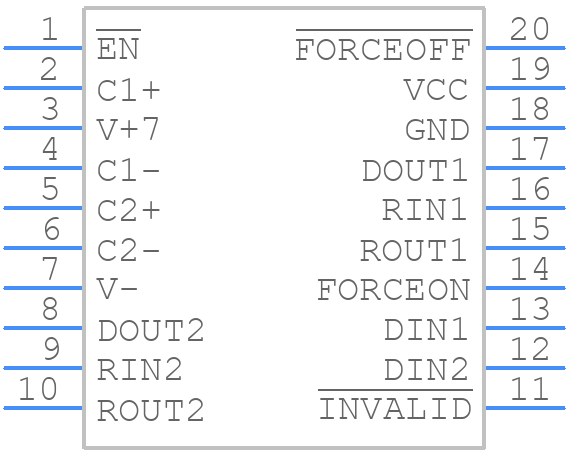

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX3223IDW Part Data Attributes

Parametric Data
MAX3223IDW Texas Instruments
Buy Now Datasheet
Compare Parts:
MAX3223IDW Texas Instruments Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code SOIC
Package Description Soic-20
Pin Count 20
ECCN Code EAR99
HTS Code 8542.39.00.90
Additional Feature Can Also Operate With 5v Supply
Differential Output No
Driver Number of Bits 2
High Level Input Current-Max 0.000001 A
Input Characteristics Schmitt Trigger
Interface IC Type Line Transceiver
Interface Standard Eia-232-F; Tia-232-F; V.28
JESD-30 Code R-PDSO-G20
JESD-609 Code e4
Length 12.8 Mm
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 20
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Out Swing-Min 10 V
Output Characteristics 3-State
Output Low Current-Max 0.000001 A
Output Polarity Inverted
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Receiver Number of Bits 2
Seated Height-Max 2.65 Mm
Supply Current-Max 1 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Supply Voltage1-Max 3.6 V
Supply Voltage1-Min 3 V
Supply Voltage1-Nom 3.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Width 7.5 Mm

Alternate Parts for MAX3223IDW

This table gives cross-reference parts and alternative options found for MAX3223IDW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3223IDW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX3222IDWR Texas Instruments $0.9075 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3222IDWR
MAX3223IDWR Texas Instruments $0.9075 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3223IDWR
TRSF3222ECDWR Texas Instruments $1.0222 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20 MAX3223IDW vs TRSF3222ECDWR
MAX3222IDWG4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3222IDWG4
MAX3222IDWRE4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3222IDWRE4
MAX3223IDWE4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3223IDWE4
TRSF3222ECDW Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20 MAX3223IDW vs TRSF3222ECDW
TRSF3222ECDWRG4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20 MAX3223IDW vs TRSF3222ECDWRG4
MAX3222IDWE4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3222IDWE4
MAX3223IDWG4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3223IDWG4
Part Number Manufacturer Composite Price Description Compare
MAX3222IPW Texas Instruments $1.0259 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3222IPW
MAX3223ECDB Texas Instruments $1.1789 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs MAX3223ECDB
SN75C3232EDWR Texas Instruments $1.2591 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16 MAX3223IDW vs SN75C3232EDWR
SN75C3222EPWG4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BIPolar, PDSO20 MAX3223IDW vs SN75C3222EPWG4
TRSF3232ECDW Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16 MAX3223IDW vs TRSF3232ECDW
TRS3222ECDWRG4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20 MAX3223IDW vs TRS3222ECDWRG4
SN65C3232DE4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BIPolar, PDSO16 MAX3223IDW vs SN65C3232DE4
ICL3222ECA-T Intersil Corporation Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs ICL3222ECA-T
ICL3222CA Intersil Corporation Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20 MAX3223IDW vs ICL3222CA
MAX3222EIDWG4 Texas Instruments Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20 MAX3223IDW vs MAX3222EIDWG4
equivalents icon

MAX3223IDW Related Parts

MAX3223IDW Frequently Asked Questions (FAQ)

  • The MAX3223IDW can support data rates up to 1 Mbps, making it suitable for most serial communication applications.

  • The MAX3223IDW has built-in electrostatic discharge (ESD) protection on the RS-232 inputs, which can withstand up to ±15 kV of ESD voltage.

  • The MAX3223IDW has a low power consumption of 5mA (typical) when operating from a 3.3V supply, making it suitable for battery-powered applications.

  • Yes, the MAX3223IDW can operate from a 5V supply, but it is not recommended as it may reduce the device's reliability and lifespan.

  • The MAX3223IDW has a built-in slew rate control that limits the output signal rise and fall times to reduce electromagnetic interference (EMI) and improve signal integrity.
