MAX3241EEUI+ Information
MAX3241EEUI+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX3241EEUI+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2511693
|
Farnell | RS232 TXRX, 120KBPS, 5.5V, TSSOP-28 COO: United States RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 57 |
|
$15.2159 / $24.4876 | Buy Now |
|
DISTI #
700-MAX3241EEUI
|
Mouser Electronics | RS-232 Interface IC 15kV ESD-Protected, Down to 10nA, 3.0V to 5.5V, Up to 1Mbps, True RS-232 Transceivers RoHS: Compliant | 1417 |
|
$13.7200 / $22.0800 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, Down to 1 Package Multiple: 1 | 7537 |
|
$10.6800 / $22.3900 | Buy Now |
|
|
Chip Stock | ±15kVESD-Protected,Downto10nA,3.0Vto5.5V,Upto1Mbps,TrueRS-232Transceivers | 230 |
|
RFQ |
US Tariff Estimator: MAX3241EEUI+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX3241EEUI+
MAX3241EEUI+ CAD Models
-

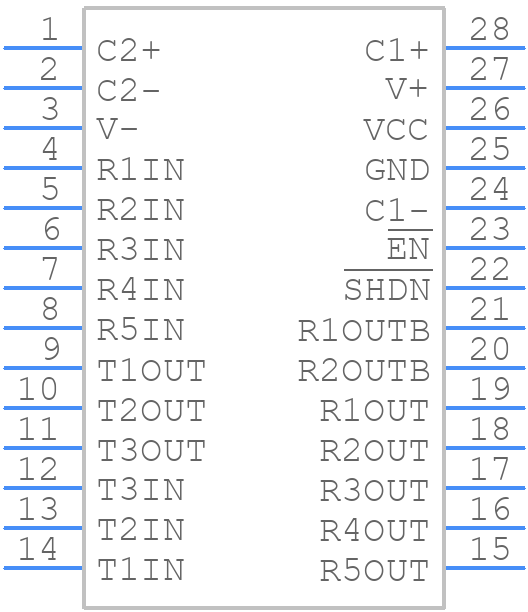

Part Symbol
-
Footprint
-

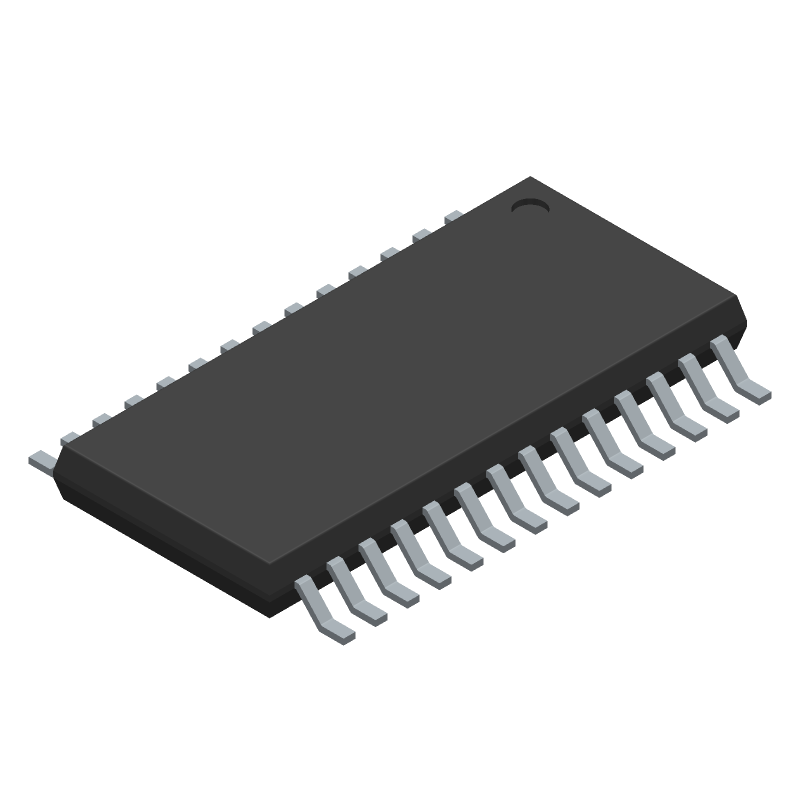

3D Model
