MAX3243EUI+ Information
MAX3243EUI+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX3243EUI+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y3508
|
Newark | Rs232 Txrx, 120Kbps, 5.5V, Tssop-28, Ic Type:Rs232 Transceiver, No. Of Receivers:5Receivers, No. Of Transmitters:3, Communication Mode:-, Data Rate Max:120Kbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Tssop Rohs Compliant: Yes |Analog Devices MAX3243EUI+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 48 |
|
$12.5600 / $19.3900 | Buy Now |
|
DISTI #
700-MAX3243EUI
|
Mouser Electronics | RS-232 Interface IC 1 A Supply-Current, True +3V to +5.5V RS RoHS: Compliant | 134 |
|
$11.7800 / $18.8300 | Buy Now |
|
|
Analog Devices Inc | 1µA Supply-Current, True +3V t Package Multiple: 1 | 4068 |
|
$8.8400 / $18.8300 | Buy Now |
US Tariff Estimator: MAX3243EUI+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX3243EUI+
MAX3243EUI+ CAD Models
-

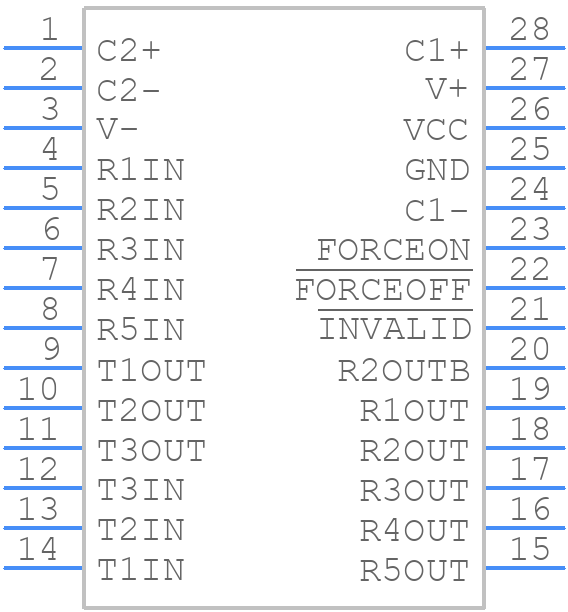

Part Symbol
-
Footprint
-

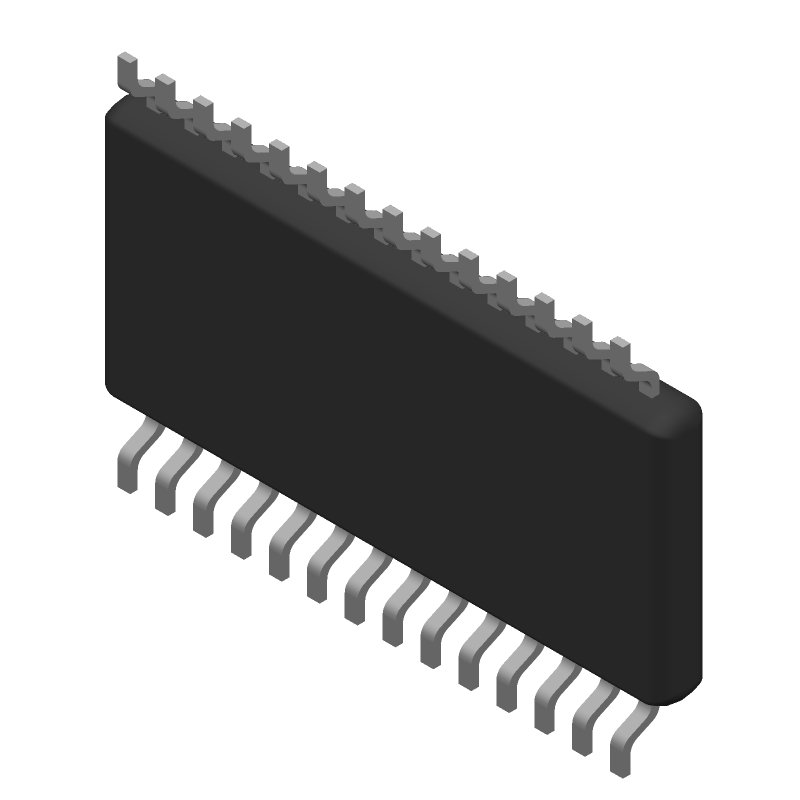

3D Model
