MAX4890EETJ+ Information
MAX4890EETJ+ by Analog Devices Inc is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for MAX4890EETJ+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX4890EETJ
|
Mouser Electronics | Analog Switch ICs 1000 Base-T, 15kV ESD Protection LAN Sw RoHS: Compliant | 0 |
|
$5.5900 / $9.3200 | Order Now |
|
|
Analog Devices Inc | 1000 Base-T, ±15kV ESD Protect Package Multiple: 1 | 1489 |
|
$4.0800 / $9.3200 | Buy Now |
|
|
Rochester Electronics | MAX4890 - 1000 Base-T, 15kV ESD Protection LAN Switches RoHS: Compliant Status: Active Min Qty: 1 | Call for Availability |
|
$4.3000 / $5.3700 | Buy Now |
US Tariff Estimator: MAX4890EETJ+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX4890EETJ+
MAX4890EETJ+ CAD Models
-

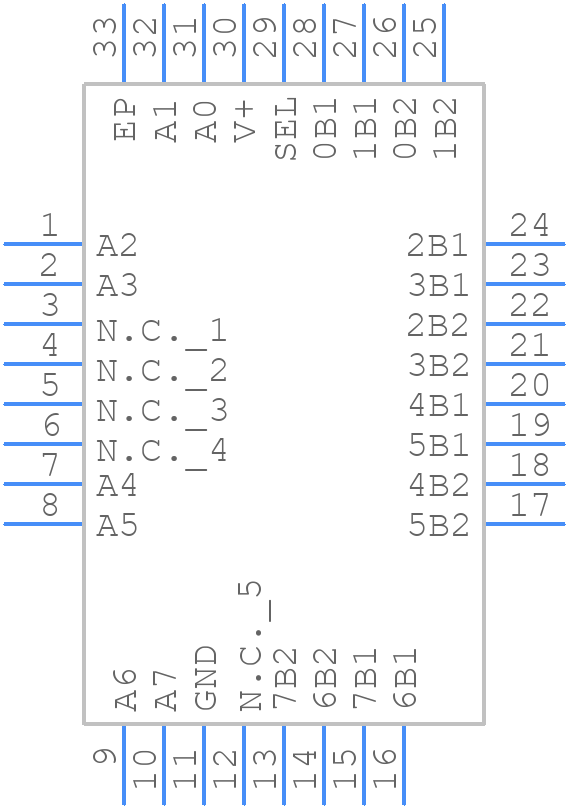

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX4890EETJ+ Part Data Attributes
|
|
MAX4890EETJ+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX4890EETJ+
Analog Devices Inc
LAN Switching Circuit, BICMOS
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 32-LFCSP-5X5X0.75 | |
| Package Description | Hvqccn, | |
| Pin Count | 32 | |
| Manufacturer Package Code | 32-LFCSP-5X5X0.75 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | 5A991.B.7 | |
| HTS Code | 8542.39.00.60 | |
| Date Of Intro | 2006-08-16 | |
| JESD-30 Code | S-XQCC-N32 | |
| JESD-609 Code | e3 | |
| Length | 5 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Unspecified | |
| Package Code | HVQCCN | |
| Package Shape | Square | |
| Package Style | Chip Carrier, Heat Sink/Slug, Very Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 Mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Telecom IC Type | Lan Switching Circuit | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | No Lead | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 Mm |
