Part Details for MAX6126BASA30+ by Analog Devices Inc
Results Overview of MAX6126BASA30+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MAX6126BASA30+ Information
MAX6126BASA30+ by Analog Devices Inc is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX6126BASA30+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX6126BASA30
|
Mouser Electronics | Voltage References Ultra-High-Precision, Ultra-Low-Noise, S RoHS: Compliant | 579 |
|
$4.8700 / $8.1900 | Buy Now |
|
|
Analog Devices Inc | Ultra-High-Precision, Ultra-Lo Package Multiple: 1 | 1067 |
|
$4.8755 / $8.1900 | Buy Now |
US Tariff Estimator: MAX6126BASA30+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX6126BASA30+
MAX6126BASA30+ CAD Models
-

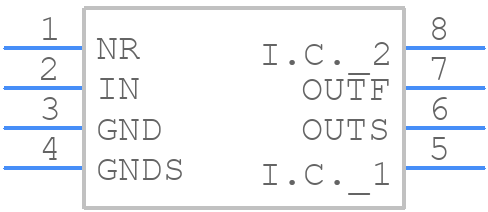

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX6126BASA30+ Part Data Attributes
|
|
MAX6126BASA30+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX6126BASA30+
Analog Devices Inc
Three Terminal Voltage Reference, 1 Output, 3V, BICMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2002-11-18 | |
| Analog IC - Other Type | Three Terminal Voltage Reference | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.01 A | |
| Output Voltage-Max | 3.0018 V | |
| Output Voltage-Min | 2.9982 V | |
| Output Voltage-Nom | 3 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 12.6 V | |
| Supply Voltage-Min (Vsup) | 3.2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temp Coef of Voltage-Max | 10 Ppm/°C | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | No | |
| Voltage Tolerance-Max | 0.06% | |
| Width | 3.9 Mm |
Alternate Parts for MAX6126BASA30+
This table gives cross-reference parts and alternative options found for MAX6126BASA30+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX6126BASA30+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADR391AUJZ-R2 | Analog Devices Inc | $2.0586 | Three Terminal Voltage Reference, 1 Output, 2.5V, PDSO5 | MAX6126BASA30+ vs ADR391AUJZ-R2 |
| ADR4533ARZ | Analog Devices Inc | $3.9934 | Three Terminal Voltage Reference, 1 Output, 3.3V, PDSO8 | MAX6126BASA30+ vs ADR4533ARZ |
| LT1019CS8-10#PBF | Analog Devices Inc | $8.5965 | Three Terminal Voltage Reference, 1 Output, 10V, Trim/Adjustable, BIPolar, PDSO8 | MAX6126BASA30+ vs LT1019CS8-10#PBF |
| LT6660HCDC-5#PBF | Analog Devices Inc | Check for Price | Three Terminal Voltage Reference, 1 Output, 5V, BIPolar, PSSO3 | MAX6126BASA30+ vs LT6660HCDC-5#PBF |
| LT6654AHS6-2.048#TRPBF | Analog Devices Inc | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.048V, BIPolar, PDSO6 | MAX6126BASA30+ vs LT6654AHS6-2.048#TRPBF |
| LT1460HCS3-3#TR | Analog Devices Inc | Check for Price | Three Terminal Voltage Reference, 1 Output, 3V, BIPolar, PDSO3 | MAX6126BASA30+ vs LT1460HCS3-3#TR |
| LT1460BIN8-5#TR | Linear Technology | Check for Price | Three Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDIP8 | MAX6126BASA30+ vs LT1460BIN8-5#TR |
| LT1460ACS8-5#TR | Analog Devices Inc | Check for Price | Three Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8 | MAX6126BASA30+ vs LT1460ACS8-5#TR |
| LT1460HCS3-10#TR | Analog Devices Inc | Check for Price | Three Terminal Voltage Reference, 1 Output, 10V, BIPolar, PDSO3 | MAX6126BASA30+ vs LT1460HCS3-10#TR |
| MAX6350CSA | Maxim Integrated Products | Check for Price | Three Terminal Voltage Reference, 1 Output, 5V, Trim/Adjustable, PDSO8 | MAX6126BASA30+ vs MAX6350CSA |
MAX6126BASA30+ Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX6126BASA30+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
-
The output capacitor should be chosen based on the desired output voltage ripple, output current, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10uF to 47uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that exceeds the output voltage of the device.
-
The MAX6126BASA30+ has an absolute maximum input voltage rating of 36V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 30V to ensure optimal performance and reliability.
-
The MAX6126BASA30+ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
-
To troubleshoot issues with the MAX6126BASA30+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are properly sized. Use an oscilloscope to check for noise and oscillations on the output. If the issue persists, consult the datasheet and application notes for further guidance.
