MAX680CSA+ Information
MAX680CSA+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX680CSA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2519475
|
Farnell | IC, DUAL VOLT CONVERTER, SOIC8, 680 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 133 |
|
$4.8884 / $8.1161 | Buy Now |
|
DISTI #
700-MAX680CSA
|
Mouser Electronics | Switching Voltage Regulators +5V to 10V Voltage Converters RoHS: Compliant | 242 |
|
$4.0300 / $6.9900 | Buy Now |
|
|
Analog Devices Inc | +5V to ±10V Voltage Converters Package Multiple: 1 | 471 |
|
$3.9974 / $6.9900 | Buy Now |
|
DISTI #
MAX680CSA+
|
TME | PMIC, DC/DC converter, Uin: 2÷6VDC, Uout: -10÷5VDC, 10mA, SO8, SMD Min Qty: 1 | 0 |
|
$4.4900 / $6.2800 | RFQ |
|
|
Chip Stock | MAX680TubeMatteTin(Sn)ActiveDCtoDCswitchingregulator6V3.9mm10mA471mW | 2759 |
|
RFQ |
US Tariff Estimator: MAX680CSA+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX680CSA+
MAX680CSA+ CAD Models
-

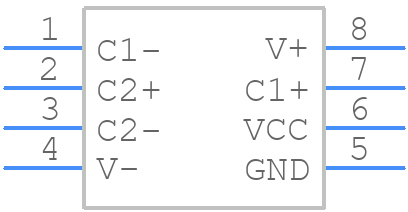

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX680CSA+ Part Data Attributes
|
|
MAX680CSA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX680CSA+
Analog Devices Inc
Switched Capacitor Converter, 0.01A, 8kHz Switching Freq-Max, CMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1996-11-26 | |
| Analog IC - Other Type | Switched Capacitor Converter | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 2 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.01 A | |
| Output Voltage-Nom | 10 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 2.5 Ma | |
| Surface Mount | Yes | |
| Switcher Configuration | Doubler Inverter | |
| Switching Frequency-Max | 8 Khz | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
