MAX734CSA+ Information
MAX734CSA+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX734CSA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX734CSA
|
Mouser Electronics | Switching Voltage Regulators 12V, 120mA Flash Memory Programming Supp RoHS: Compliant | 114 |
|
$3.8200 / $6.6100 | Buy Now |
|
DISTI #
V36:1790_26378307
|
Arrow Electronics | Conv DC-DC 3V to 12V Step Up Single-Out 12.12V 0.12A 8-Pin SOIC N Tube COO: Thailand RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2144 | Americas - 83 |
|
$3.6180 / $4.0320 | Buy Now |
|
|
Analog Devices Inc | 12V, 120mA Flash Memory Progra Package Multiple: 1 | 133 |
|
$3.7596 / $6.6100 | Buy Now |
|
DISTI #
60945233
|
Verical | Conv DC-DC 3V to 12V Step Up Single-Out 12.12V 0.12A 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 83 Package Multiple: 83 Date Code: 2144 | Americas - 83 |
|
$3.6180 / $4.0320 | Buy Now |
|
DISTI #
V36:1790_26378307
|
Arrow Electronics | Conv DC-DC 3V to 12V Step Up Single-Out 12.12V 0.12A 8-Pin SOIC N Tube COO: Thailand RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2144 | Americas - 83 |
|
$3.6180 / $4.0320 | Buy Now |
|
DISTI #
60945233
|
Verical | Conv DC-DC 3V to 12V Step Up Single-Out 12.12V 0.12A 8-Pin SOIC N Tube COO: Thailand RoHS: Compliant Min Qty: 83 Package Multiple: 83 Date Code: 2144 | Americas - 83 |
|
$3.6180 / $4.0320 | Buy Now |
|
DISTI #
MAX734CSA+
|
TME | PMIC, DC/DC converter, Uin: 3÷12VDC, Uout: 12VDC, 0.12A, SO8, SMD Min Qty: 1 | 0 |
|
$4.0400 / $5.8800 | RFQ |
|
DISTI #
V36:1790_26378307
|
Arrow Electronics | Conv DC-DC 3V to 12V Step Up Single-Out 12.12V 0.12A 8-Pin SOIC N Tube COO: Thailand RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2144 | Americas - 83 |
|
$3.6180 / $4.0320 | Buy Now |
|
DISTI #
60945233
|
Verical | Conv DC-DC 3V to 12V Step Up Single-Out 12.12V 0.12A 8-Pin SOIC N Tube COO: Thailand RoHS: Compliant Min Qty: 83 Package Multiple: 83 Date Code: 2144 | Americas - 83 |
|
$3.6180 / $4.0320 | Buy Now |
US Tariff Estimator: MAX734CSA+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX734CSA+
MAX734CSA+ CAD Models
-

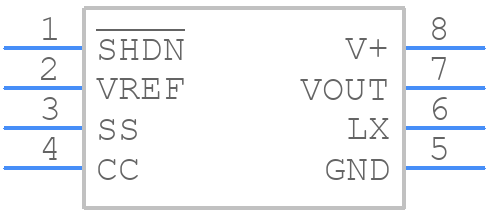

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX734CSA+ Part Data Attributes
|
|
MAX734CSA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX734CSA+
Analog Devices Inc
Switching Regulator, Current-mode, 1.5A, 170kHz Switching Freq-Max, CMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | Sop, Sop8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1999-05-28 | |
| Analog IC - Other Type | Switching Regulator | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 4.75 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 1.5 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Current-Max (Isup) | 2.5 Ma | |
| Surface Mount | Yes | |
| Switcher Configuration | Boost | |
| Switching Frequency-Max | 170 Khz | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
