Part Details for MAX853ESA+ by Analog Devices Inc
Results Overview of MAX853ESA+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (6 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
MAX853ESA+ Information
MAX853ESA+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX853ESA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX853ESA
|
Mouser Electronics | Switching Voltage Regulators Low-Noise, Regulated, Negative Charge Pu RoHS: Compliant | 86 |
|
$4.0100 / $6.9700 | Buy Now |
|
|
Analog Devices Inc | Low-Noise, Regulated, Negative Package Multiple: 1 | 2 |
|
$3.9842 / $6.9700 | Buy Now |
US Tariff Estimator: MAX853ESA+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX853ESA+
MAX853ESA+ CAD Models
-

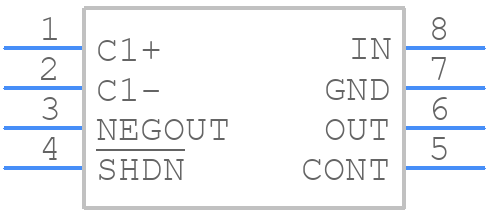

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX853ESA+ Part Data Attributes
|
|
MAX853ESA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX853ESA+
Analog Devices Inc
Switched Capacitor Regulator, 0.005A, 120kHz Switching Freq-Max, BIPolar, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | Sop, | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1999-05-27 | |
| Additional Feature | Also Operates In Adjustable Mode From -0.5v To 9v | |
| Analog IC - Other Type | Switched Capacitor Regulator | |
| Input Voltage-Max | 10 V | |
| Input Voltage-Min | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.005 A | |
| Output Voltage-Max | -9 V | |
| Output Voltage-Min | -0.5 V | |
| Output Voltage-Nom | -4.1 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Doubler Inverter | |
| Switching Frequency-Max | 120 Khz | |
| Technology | Bipolar | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
Alternate Parts for MAX853ESA+
This table gives cross-reference parts and alternative options found for MAX853ESA+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX853ESA+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX850ISA+T | Analog Devices Inc | Check for Price | Switched Capacitor Regulator, 0.005A, 120kHz Switching Freq-Max, BIPolar, PDSO8 | MAX853ESA+ vs MAX850ISA+T |
| MAX850CSA+ | Analog Devices Inc | Check for Price | Switched Capacitor Regulator, Voltage-mode, 100kHz Switching Freq-Max, CMOS, PDSO8 | MAX853ESA+ vs MAX850CSA+ |
| MAX850ESA+T | Analog Devices Inc | Check for Price | Switched Capacitor Regulator, 0.005A, 100kHz Switching Freq-Max, BIPolar, PDSO8 | MAX853ESA+ vs MAX850ESA+T |
| MAX851ISA+T | Analog Devices Inc | Check for Price | Switched Capacitor Regulator, 0.005A, 120kHz Switching Freq-Max, BIPolar, PDSO8 | MAX853ESA+ vs MAX851ISA+T |
| MAX853ISA+ | Analog Devices Inc | Check for Price | Switched Capacitor Regulator, 0.005A, 120kHz Switching Freq-Max, BIPolar, PDSO8 | MAX853ESA+ vs MAX853ISA+ |
| MAX853ISA-T | Maxim Integrated Products | Check for Price | Switched Capacitor Regulator, 0.005A, 120kHz Switching Freq-Max, BIPolar, PDSO8 | MAX853ESA+ vs MAX853ISA-T |
MAX853ESA+ Frequently Asked Questions (FAQ)
-
The MAX853ESA+ is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure the MAX853ESA+ is properly biased and configured for your specific application, it is recommended to follow the application circuit provided in the datasheet and to consult the device's evaluation board documentation. Additionally, it is recommended to consult with an experienced analog design engineer or to contact Analog Devices' technical support team for guidance on specific application requirements.
-
The MAX853ESA+ has a maximum junction temperature of 150°C, and it is recommended to ensure that the device operates within its recommended temperature range to prevent thermal shutdown and ensure reliability. Thermal considerations include providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. It is also recommended to consult the device's thermal resistance data and to perform thermal simulations to ensure the device operates within its recommended temperature range.
-
To troubleshoot common issues with the MAX853ESA+, such as oscillation or instability, it is recommended to follow a systematic approach, including checking the device's power supply, input and output connections, and PCB layout. Additionally, it is recommended to consult the device's datasheet and application notes, and to use simulation tools and oscilloscopes to debug the circuit. It is also recommended to consult with an experienced analog design engineer or to contact Analog Devices' technical support team for guidance on troubleshooting specific issues.
-
The MAX853ESA+ has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. Additionally, it is recommended to follow proper latch-up prevention techniques, including using a latch-up immune design, using a low-impedance power supply, and avoiding high-voltage transients. It is also recommended to consult the device's datasheet and application notes for specific guidance on ESD protection and latch-up prevention.
