MAX889RESA+ Information
MAX889RESA+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX889RESA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y4993
|
Newark | Dc-Dc Charge Pump, Invert, 85Deg C, Ic Case/Package:Soic, No. Of Pins:8Pins, Output Current Max:200Ma, Fixed Output Voltage Nom:-, Adjustable Output Voltage Min:-5.5V, Adjustable Output Voltage Max:-2.5V, Input Voltage Min:2.7V Rohs Compliant: Yes |Analog Devices MAX889RESA+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 92 |
|
$3.8700 / $6.4800 | Buy Now |
|
DISTI #
700-MAX889RESA
|
Mouser Electronics | Switching Voltage Regulators High-Frequency, Regulated, 200mA, Invert RoHS: Compliant | 310 |
|
$3.6600 / $6.2900 | Buy Now |
|
|
Analog Devices Inc | High-Frequency, Regulated, 200 Package Multiple: 1 | 15071 |
|
$3.5613 / $6.2900 | Buy Now |
|
|
Chip Stock | MAX889Series5.5V200mA0.62MHzChargePumpSwitchingRegulator-SOIC-8 | 31000 |
|
RFQ |
US Tariff Estimator: MAX889RESA+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX889RESA+
MAX889RESA+ CAD Models
-

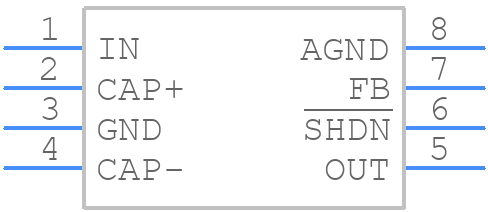

Part Symbol
-
Footprint
-

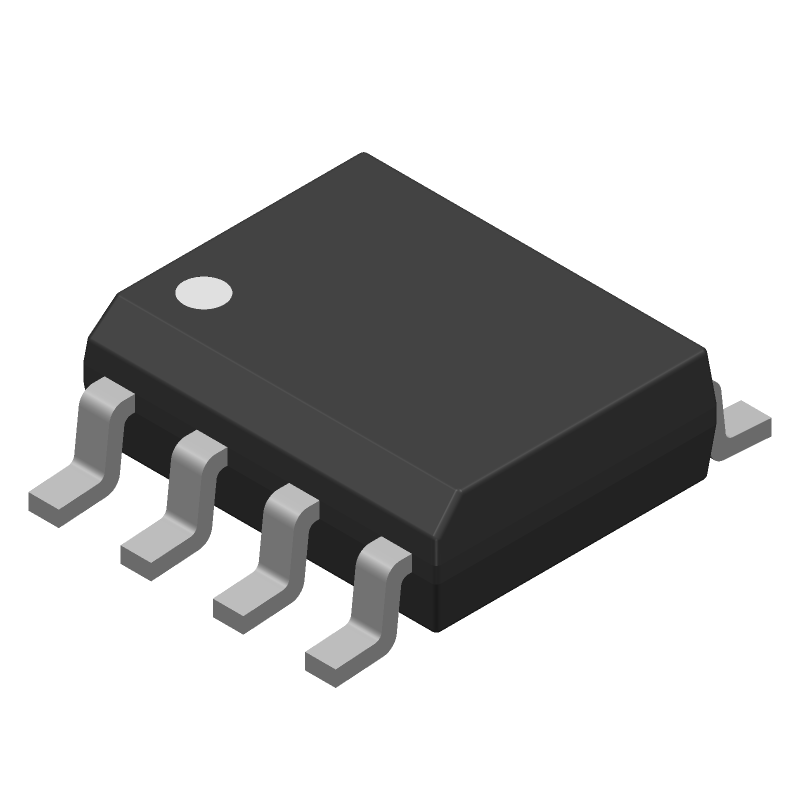

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX889RESA+ Part Data Attributes
|
|
MAX889RESA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX889RESA+
Analog Devices Inc
Switched Capacitor Regulator, 0.2A, 2500kHz Switching Freq-Max, BICMOS, PDSO8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | 0.150 Inch, Soic-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2000-10-04 | |
| Analog IC - Other Type | Switched Capacitor Regulator | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.7 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.2 A | |
| Output Voltage-Max | -5.5 V | |
| Output Voltage-Min | -2.5 V | |
| Output Voltage-Nom | -5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Surface Mount | Yes | |
| Switcher Configuration | Doubler Inverter | |
| Switching Frequency-Max | 2500 Khz | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm |
