MC100EP16DTG Information
MC100EP16DTG by onsemi is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MC100EP16DTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71J5410
|
Newark | Ecl Differential Receiver/Driver 5.5V Tssop8, Device Type:Differential Transceiver, Output Level:Ecl, Signaling Rate:-, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Tssop, No. Of Pins:8Pins, Product Range:- Rohs Compliant: Yes |Onsemi MC100EP16DTG RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.4700 / $4.9000 | Buy Now |
|
DISTI #
MC100EP16DTGOS-ND
|
DigiKey | IC DIFFERENT RX/DRVR 8-TSSOP Min Qty: 1 Lead time: 23 Weeks Container: Tube |
199 In Stock |
|
$4.4701 / $9.8200 | Buy Now |
|
DISTI #
MC100EP16DTG
|
Avnet Americas | Differential Driver / Receiver - Rail/Tube (Alt: MC100EP16DTG) COO: Czechia RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 23 Weeks, 0 Days Container: Tube | 0 |
|
RFQ | |
|
DISTI #
863-MC100EP16DTG
|
Mouser Electronics | Bus Transceivers 3.3V/5V ECL Diff RoHS: Compliant | 283 |
|
$4.4700 / $9.8200 | Buy Now |
|
DISTI #
70100493
|
RS | ECL, 3.3 V / 5 V DIFFERENTIAL RECEIVER/DRIVER, TSSOP-8 Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$8.8400 / $9.8200 | RFQ |
|
|
Future Electronics | MC100EP16 Series 4 GHz 5.5 V SMT ECL Differential Receiver/Driver - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 200 Package Multiple: 100 Lead time: 23 Weeks Container: Tube | 0Tube |
|
$4.3700 / $4.5100 | Buy Now |
|
|
Onlinecomponents.com | Differential Driver / Receiver COO: Czechia RoHS: Compliant | 0 |
|
$4.3500 / $5.3400 | Buy Now |
|
DISTI #
87650815
|
Verical | Single Transmitter/Receiver 8-Pin TSSOP Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 | Americas - 4800 |
|
$4.4982 | Buy Now |
|
DISTI #
90292039
|
Verical | Single Transmitter/Receiver 8-Pin TSSOP Tube RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2349 | Americas - 94 |
|
$5.7400 / $9.8000 | Buy Now |
|
|
Bristol Electronics | 13 |
|
RFQ |
US Tariff Estimator: MC100EP16DTG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC100EP16DTG
MC100EP16DTG CAD Models
-

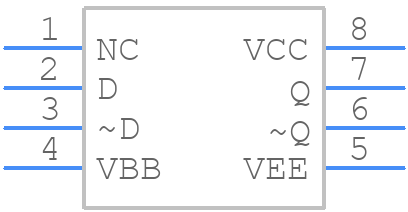

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC100EP16DTG Part Data Attributes
|
|
MC100EP16DTG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC100EP16DTG
onsemi
Differential Driver / Receiver, TSSOP 8 3.0x3.0x0.95 mm, 100-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP 8 3.0x3.0x0.95 mm | |
| Package Description | Tssop, Tssop8,.19 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 948R-02 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Additional Feature | Can Also Operate With -3v To -5.5v Supply In Necl Mode | |
| Differential Output | Yes | |
| Driver Number of Bits | 1 | |
| Input Characteristics | Differential | |
| Interface IC Type | Line Transceiver | |
| Interface Standard | General Purpose | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 3 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 0.28 Ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 1.1 Mm | |
| Supply Current-Max | 38 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Ecl | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 0.28 Ns | |
| Width | 3 Mm |
