Part Details for MC100LVEL34DG by onsemi
Results Overview of MC100LVEL34DG by onsemi
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC100LVEL34DG Information
MC100LVEL34DG by onsemi is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC100LVEL34DG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85997519
|
Verical | 3.3V ECL /2, /4, /8 Clock Generation Chip RoHS: Compliant Min Qty: 71 Package Multiple: 1 Date Code: 1401 | Americas - 3962 |
|
$4.2625 / $5.3250 | Buy Now |
|
DISTI #
86007035
|
Verical | 3.3V ECL /2, /4, /8 Clock Generation Chip RoHS: Compliant Min Qty: 71 Package Multiple: 1 Date Code: 1701 | Americas - 3888 |
|
$4.2625 / $5.3250 | Buy Now |
|
DISTI #
86014583
|
Verical | 3.3V ECL /2, /4, /8 Clock Generation Chip RoHS: Compliant Min Qty: 71 Package Multiple: 1 Date Code: 1001 | Americas - 3869 |
|
$4.2625 / $5.3250 | Buy Now |
|
DISTI #
85997217
|
Verical | 3.3V ECL /2, /4, /8 Clock Generation Chip RoHS: Compliant Min Qty: 71 Package Multiple: 1 Date Code: 1201 | Americas - 1839 |
|
$4.2625 / $5.3250 | Buy Now |
|
DISTI #
85997547
|
Verical | 3.3V ECL /2, /4, /8 Clock Generation Chip RoHS: Compliant Min Qty: 71 Package Multiple: 1 Date Code: 0701 | Americas - 533 |
|
$4.2625 / $5.3250 | Buy Now |
|
DISTI #
86006152
|
Verical | 3.3V ECL /2, /4, /8 Clock Generation Chip RoHS: Compliant Min Qty: 71 Package Multiple: 1 Date Code: 0501 | Americas - 225 |
|
$4.2625 / $5.3250 | Buy Now |
|
|
Rochester Electronics | Low Skew Clock Driver, 100LVEL Series, 3 True Output(s), 0 Inverted Output(s), ECL, PDSO16 RoHS: Compliant Status: Obsolete Min Qty: 1 | 14355 |
|
$3.4100 / $4.2600 | Buy Now |
US Tariff Estimator: MC100LVEL34DG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC100LVEL34DG
MC100LVEL34DG CAD Models
-

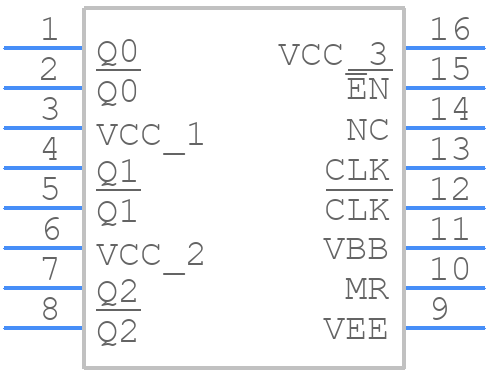

Part Symbol
-

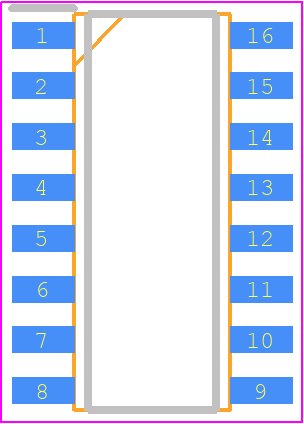

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC100LVEL34DG Part Data Attributes
|
|
MC100LVEL34DG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC100LVEL34DG
onsemi
3.3 V ECL ÷·2, ÷·4, ÷·8 Divider, SOIC 16 LEAD, 48-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop16,.25 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 751B-05 | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Additional Feature | Necl Mode: 0v Vcc With Vee = -3v To -3.8v | |
| Family | 100lvel | |
| Input Conditioning | Differential | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 9.9 Mm | |
| Logic IC Type | Low Skew Clock Driver | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inverted Outputs | ||
| Number of Terminals | 16 | |
| Number of True Outputs | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 1 Ns | |
| Propagation Delay (tpd) | 1 Ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 Mm | |
| Supply Voltage-Max (Vsup) | 3.8 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Ecl | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 Mm | |
| fmax-Min | 1500 Mhz |
Alternate Parts for MC100LVEL34DG
This table gives cross-reference parts and alternative options found for MC100LVEL34DG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC100LVEL34DG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC100LVEL34D | onsemi | Check for Price | 100LVEL SERIES, LOW SKEW CLOCK DRIVER, 3 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16, SOIC-16 | MC100LVEL34DG vs MC100LVEL34D |
| SY100S834ZC | Micrel Inc | Check for Price | Low Skew Clock Driver, 100S Series, 3 True Output(s), 0 Inverted Output(s), ECL, PDSO16, 0.150 INCH, SOIC-16 | MC100LVEL34DG vs SY100S834ZC |
| SY100S834LZGTR | Micrel Inc | Check for Price | 100S SERIES, LOW SKEW CLOCK DRIVER, 3 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO16, 0.150 INCH, LEAD FREE, SOIC-16 | MC100LVEL34DG vs SY100S834LZGTR |
| SY100S834LZG | Microchip Technology Inc | Check for Price | 3.3V (/1, /2, /4) or (/2, /4, /8) Clock Generation Chip | MC100LVEL34DG vs SY100S834LZG |
| SY100S834LZC | Micrel Inc | Check for Price | Low Skew Clock Driver, 100S Series, 3 True Output(s), 0 Inverted Output(s), ECL, PDSO16 | MC100LVEL34DG vs SY100S834LZC |
| SY100S834LZC | Microchip Technology Inc | Check for Price | Low Skew Clock Driver, 100S Series, 3 True Output(s), 0 Inverted Output(s), ECL, PDSO16 | MC100LVEL34DG vs SY100S834LZC |
| SY100S834ZI | Microchip Technology Inc | Check for Price | Low Skew Clock Driver, 100S Series, 3 True Output(s), 0 Inverted Output(s), ECL, PDSO16 | MC100LVEL34DG vs SY100S834ZI |
| SY100S834LZITR | Microchip Technology Inc | Check for Price | Low Skew Clock Driver, 100S Series, 3 True Output(s), 0 Inverted Output(s), ECL, PDSO16, 0.150 INCH, SOIC-16 | MC100LVEL34DG vs SY100S834LZITR |
| SY100S834LZI | Micrel Inc | Check for Price | Low Skew Clock Driver, 100S Series, 3 True Output(s), 0 Inverted Output(s), ECL, PDSO16, 0.150 INCH, SOIC-16 | MC100LVEL34DG vs SY100S834LZI |
| SY100S834ZC | Microchip Technology Inc | Check for Price | Low Skew Clock Driver, 100S Series, 3 True Output(s), 0 Inverted Output(s), ECL, PDSO16, 0.150 INCH, SOIC-16 | MC100LVEL34DG vs SY100S834ZC |
MC100LVEL34DG Frequently Asked Questions (FAQ)
-
A good PCB layout for the MC100LVEL34DG involves keeping the input and output traces short and matched, using a solid ground plane, and minimizing vias and bends. It's also recommended to use a low-ESR capacitor for power decoupling and to keep the device away from high-current or high-voltage traces.
-
The MC100LVEL34DG requires proper termination to prevent signal reflections and ensure signal integrity. This can be achieved by using a 50-ohm termination resistor at the receiver end, and by ensuring that the transmission line impedance is matched to the device's output impedance.
-
The MC100LVEL34DG has an operating temperature range of -40°C to +85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
-
While the MC100LVEL34DG is optimized for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance and signal integrity.
-
The MC100LVEL34DG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD protection devices such as TVS diodes or ESD suppressors.
