Part Details for MC78L05ABDG by onsemi
Results Overview of MC78L05ABDG by onsemi
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC78L05ABDG Information
MC78L05ABDG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC78L05ABDG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip 1 Exchange | INSTOCK | 176052 |
|
RFQ | |
|
|
Chip Stock | LinearVoltageRegulator,100mA,5to24V,PositiveVout:5.0V, TJ=-40°Cto+125°C | 96730 |
|
RFQ | |
|
|
Vyrian | Regulators | 690 |
|
RFQ | |
|
|
Win Source Electronics | Three-Terminal Low Current Positive Voltage Regulators | IC REG LINEAR 5V 100MA 8SOIC | 84230 |
|
$0.0693 / $0.0896 | Buy Now |
US Tariff Estimator: MC78L05ABDG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MC78L05ABDG
MC78L05ABDG CAD Models
-

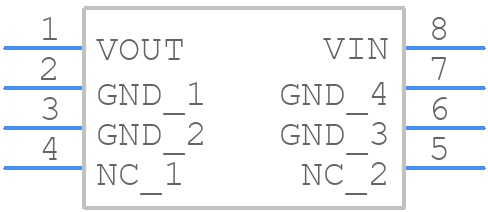

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MC78L05ABDG Part Data Attributes
|
|
MC78L05ABDG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC78L05ABDG
onsemi
Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, SOIC-8 Narrow Body, 98-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 Narrow Body | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.7 V | |
| Input Voltage Absolute-Max | 30 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Line Regulation-Max | 0.15% | |
| Load Regulation-Max | 0.06% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.2 V | |
| Output Voltage1-Min | 4.8 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | RAIL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Voltage Tolerance-Max | 4% | |
| Width | 3.9 mm |
Alternate Parts for MC78L05ABDG
This table gives cross-reference parts and alternative options found for MC78L05ABDG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC78L05ABDG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC78L05ABDR2G | onsemi | $0.0717 | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, SOIC-8 Narrow Body, 2500-REEL | MC78L05ABDG vs MC78L05ABDR2G |
| NCV78L05ABDR2G | onsemi | $0.1475 | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, SOIC-8 Narrow Body, 2500-REEL, Automotive Qualified | MC78L05ABDG vs NCV78L05ABDR2G |
| LM78L05ACZ/LFT7 | Texas Instruments | Check for Price | 100-mA, 30-V, linear voltage regulator 3-TO-92 0 to 125 | MC78L05ABDG vs LM78L05ACZ/LFT7 |
| LM78L05ACZ/LFT1 | Texas Instruments | Check for Price | 100-mA, 30-V, linear voltage regulator 3-TO-92 0 to 125 | MC78L05ABDG vs LM78L05ACZ/LFT1 |
| LM78L05ACZ/LFT4 | Texas Instruments | Check for Price | 100-mA, 30-V, linear voltage regulator 3-TO-92 0 to 125 | MC78L05ABDG vs LM78L05ACZ/LFT4 |
MC78L05ABDG Frequently Asked Questions (FAQ)
-
The maximum input voltage for the MC78L05ABDG is 35V, but it's recommended to keep it below 25V for reliable operation.
-
To ensure a stable output voltage, make sure to use a suitable input capacitor (e.g., 1uF) and output capacitor (e.g., 10uF) as close to the regulator as possible, and follow the recommended PCB layout guidelines.
-
The minimum input voltage required for the MC78L05ABDG to function is around 7.5V, but it's recommended to keep it above 8V for reliable operation.
-
The MC78L05ABDG is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as temperature increases to ensure reliable operation.
-
Use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit to protect the MC78L05ABDG from input voltage transients and spikes.
