MCP23S09-E/SO Information
MCP23S09-E/SO by Microchip Technology Inc is a Parallel IO Port.
Parallel IO Ports are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MCP23S09-E/SO
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
04R7657
|
Newark | I/O Expander, 8Bit, 10 Mhz, Spi, 1.8 V, 5.5 V, Soic Rohs Compliant: Yes |Microchip MCP23S09-E/SO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 270 |
|
$1.2400 / $1.6200 | Buy Now |
|
DISTI #
MCP23S09-E/SO-ND
|
DigiKey | IC XPNDR 10MHZ SPI 18SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
9 In Stock |
|
$1.2400 / $1.6200 | Buy Now |
|
DISTI #
MCP23S09-E/SO
|
Avnet Americas | I/O Expander, 8 bit, SPI, 1.8 V, 5.5 V, SOIC, 18 Pins - Rail/Tube (Alt: MCP23S09-E/SO) COO: Thailand RoHS: Compliant Min Qty: 252 Package Multiple: 42 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$1.2875 / $1.4714 | Buy Now |
|
DISTI #
579-MCP23S09-E/SO
|
Mouser Electronics | Interface - I/O Expanders 8-bit I/O Expander SPI interface RoHS: Compliant | 1152 |
|
$1.2400 / $1.6200 | Buy Now |
|
DISTI #
MCP23S09-E/SO
|
Microchip Technology Inc | 8-Bit, Open Drain I/O Expander with I2C Interface, SOIC, Projected EOL: 2034-12-12 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube | In Stock: 4839 and Alternates Available |
|
$1.1600 / $1.6200 | Buy Now |
|
DISTI #
70047080
|
RS | 8-BIT INPUT/OUTPUT EXPANDER, SPI INTERFACE, SOIC-18 Min Qty: 294 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$1.5500 | RFQ |
|
|
Future Electronics | MCP23S09 Series 5.5 V 400 kHz 8-Bit I/O Expander with Open-Drain Output -SOIC-18 RoHS: Compliant pbFree: Yes Min Qty: 336 Package Multiple: 42 Lead time: 6 Weeks Container: Tube | 0Tube |
|
$1.2500 / $1.3300 | Buy Now |
|
|
Onlinecomponents.com | I/O Expander - 8bit - 10 MHz - SPI - 1.8 to 5.5 V - 18-Pin SOIC W - Tube COO: Thailand RoHS: Compliant | 0 |
|
$1.0500 / $1.3100 | Buy Now |
|
DISTI #
86906871
|
Verical | SPI Interface 10000kHz 5.5V 18-Pin SOIC W Tube RoHS: Compliant Min Qty: 27 Package Multiple: 1 Date Code: 2325 | Americas - 317 |
|
$1.1010 / $1.4500 | Buy Now |
|
DISTI #
69265378
|
Verical | SPI Interface 10000kHz 5.5V 18-Pin SOIC W Tube RoHS: Compliant Min Qty: 28 Package Multiple: 1 Date Code: 2325 | Americas - 158 |
|
$1.1800 / $1.4500 | Buy Now |
US Tariff Estimator: MCP23S09-E/SO by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP23S09-E/SO
MCP23S09-E/SO CAD Models
-

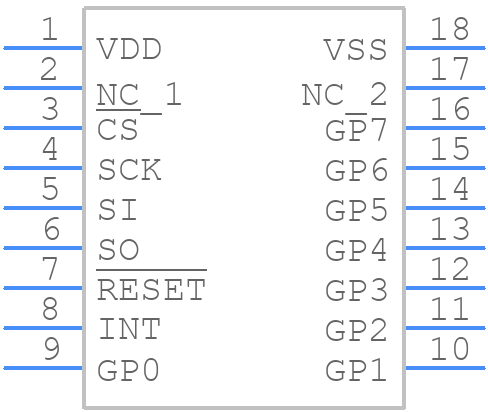

Part Symbol
-

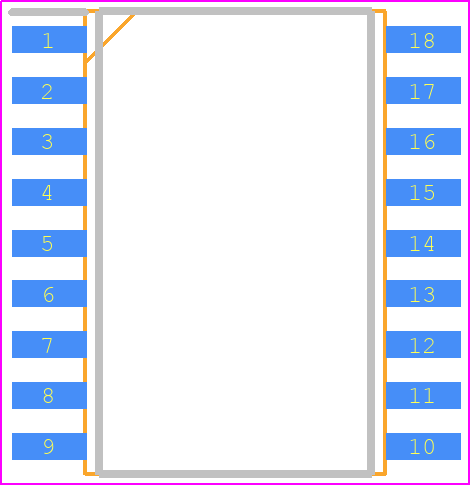

Footprint
-

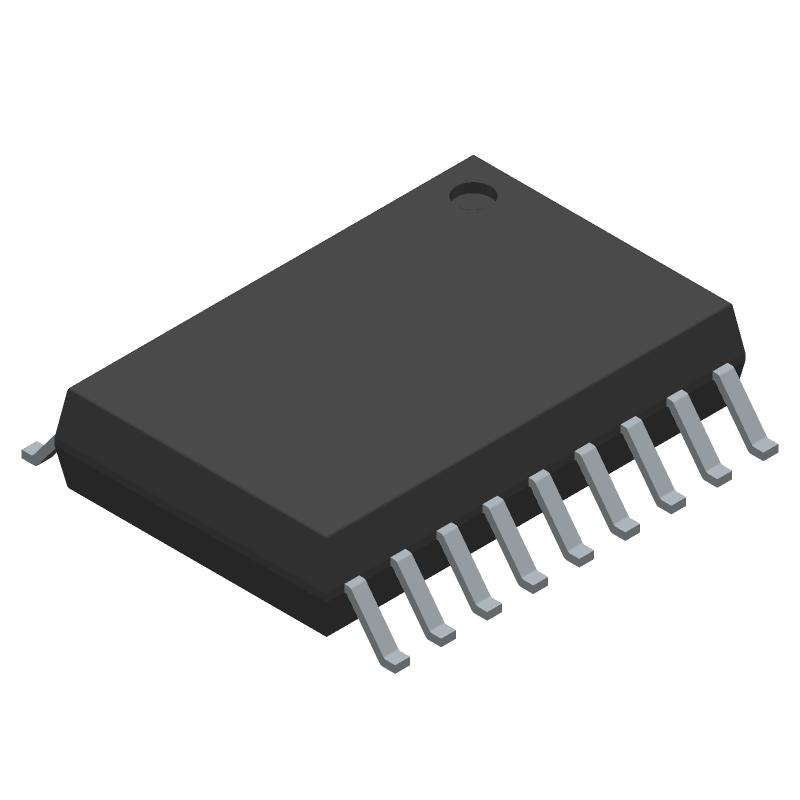

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MCP23S09-E/SO Part Data Attributes
|
|
MCP23S09-E/SO
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP23S09-E/SO
Microchip Technology Inc
8-Bit, Open Drain I/O Expander with I2C Interface
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOIC | |
| Package Description | Sop, Sop18,.4 | |
| Pin Count | 18 | |
| Manufacturer Package Code | SOIC-18 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Clock Frequency-Max | 10 Mhz | |
| External Data Bus Width | ||
| JESD-30 Code | R-PDSO-G18 | |
| JESD-609 Code | e3 | |
| Length | 11.55 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of I/O Lines | 8 | |
| Number of Ports | 1 | |
| Number of Terminals | 18 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP18,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 Mm | |
| Supply Current-Max | 1 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 1.8 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Width | 7.5 Mm | |
| uPs/uCs/Peripheral ICs Type | Parallel Io Port, General Purpose |
Alternate Parts for MCP23S09-E/SO
This table gives cross-reference parts and alternative options found for MCP23S09-E/SO. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP23S09-E/SO, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP23S09-E/MG | Microchip Technology Inc | $1.1976 | 8-Bit, Open Drain I/O Expander with I2C Interface | MCP23S09-E/SO vs MCP23S09-E/MG |
| MCP23S08T-E/SS | Microchip Technology Inc | $1.2450 | 8-bit I/O Expander with SPI Interface. | MCP23S09-E/SO vs MCP23S08T-E/SS |
| MCP23S08-E/SO | Microchip Technology Inc | $1.2806 | 8-bit I/O Expander with SPI Interface. | MCP23S09-E/SO vs MCP23S08-E/SO |
| MCP23S08-E/P | Microchip Technology Inc | $1.2976 | 8-bit I/O Expander with SPI Interface. | MCP23S09-E/SO vs MCP23S08-E/P |
| MCP23008-E/P | Microchip Technology Inc | $1.3027 | 8-bit I/O Expander with I2C Interface. | MCP23S09-E/SO vs MCP23008-E/P |
| MCP23S09-E/P | Microchip Technology Inc | $1.3427 | 8-Bit, Open Drain I/O Expander with I2C Interface | MCP23S09-E/SO vs MCP23S09-E/P |
| MCP23009-E/MG | Microchip Technology Inc | $1.4120 | 8-Bit, Open Drain I/O Expander with I2C Interface | MCP23S09-E/SO vs MCP23009-E/MG |
| MCP23S08-E/ML | Microchip Technology Inc | $1.5292 | 8 BIT INPUT/OUTPUT EXPANDER, I2C INTERFACE | MCP23S09-E/SO vs MCP23S08-E/ML |
| MCP23S08-E/SOVAO | Microchip Technology Inc | Check for Price | 8-bit I/O Expander with SPI Interface. | MCP23S09-E/SO vs MCP23S08-E/SOVAO |
| MCP23S08T-E/SOVAO | Microchip Technology Inc | Check for Price | 8-bit I/O Expander with SPI Interface. | MCP23S09-E/SO vs MCP23S08T-E/SOVAO |
MCP23S09-E/SO Frequently Asked Questions (FAQ)
-
The maximum frequency of the SPI interface is 10 MHz.
-
You can use the CS (Chip Select) pin to select which device to communicate with. Each device should have a unique CS pin connection.
-
The RESET pin is used to reset the device to its default state. It can be tied to VDD or driven by an external reset signal.
-
Yes, but you'll need to use a SPI-to-other-bus bridge chip or a microcontroller with a built-in SPI-to-other-bus bridge.
-
You can configure the MCP23S09 for input or output mode by writing to the IODIR register. A '1' sets the pin as an input, and a '0' sets the pin as an output.
