MCP2515-E/P Information
MCP2515-E/P by Microchip Technology Inc is a Serial IO/Communication Controller.
Serial IO/Communication Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MCP2515-E/P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29H7133
|
Newark | Ic, lan Transceiver, single, cmos, dip,18Pin, plastic Rohs Compliant: Yes |Microchip MCP2515-E/P RoHS: Compliant Min Qty: 125 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.4500 | Buy Now |
|
DISTI #
MCP2515-E/P-ND
|
DigiKey | IC CAN CONTROLLER W/SPI 18DIP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
138 In Stock |
|
$2.5125 / $3.1200 | Buy Now |
|
DISTI #
MCP2515-E/P
|
Avnet Americas | CAN 1Mbps Sleep/Standby 3.3V/5V Extended 18-Pin PDIP Tube - Rail/Tube (Alt: MCP2515-E/P) COO: China RoHS: Compliant Min Qty: 125 Package Multiple: 25 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$2.5125 / $2.8714 | Buy Now |
|
DISTI #
579-MCP2515-E/P
|
Mouser Electronics | CAN Interface IC W/ SPI Inter 125dC RoHS: Compliant | 1132 |
|
$2.5100 / $3.1200 | Buy Now |
|
DISTI #
V99:2348_06445415
|
Arrow Electronics | CAN 1Mbps Sleep/Standby 3.3V/5V Automotive AEC-Q100 18-Pin PDIP Tube COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2011 | Americas - 68 |
|
$2.4370 | Buy Now |
|
DISTI #
MCP2515-E/P
|
Microchip Technology Inc | Two-wire, stand alone CAN controller, PDIP, Projected EOL: 2035-08-29 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube | In Stock: 2016 and Alternates Available |
|
$2.2600 / $3.1200 | Buy Now |
|
DISTI #
70452941
|
RS | CAN CONTROLLER W/ SPI INTERFACE, 125 DEG C18 PDIP .300IN TUBE Min Qty: 125 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$3.1500 | RFQ |
|
|
Onlinecomponents.com | CANbus Controller - SPI Interface - CAN 2.0 Standard - 10mA, 2.7 to 5.5V Supply - 18-PDIP Package. COO: Thailand RoHS: Compliant |
1350 In Stock 2016 Factory Stock |
|
$2.3700 / $2.8300 | Buy Now |
|
DISTI #
62406266
|
Verical | CAN 1Mbps Sleep/Standby 3.3V/5V Automotive AEC-Q100 18-Pin PDIP Tube RoHS: Compliant Min Qty: 25 Package Multiple: 25 Date Code: 2222 | Americas - 1350 |
|
$2.8706 / $3.3294 | Buy Now |
|
DISTI #
62209414
|
Verical | CAN 1Mbps Sleep/Standby 3.3V/5V Automotive AEC-Q100 18-Pin PDIP Tube RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2011 | Americas - 68 |
|
$2.4370 | Buy Now |
US Tariff Estimator: MCP2515-E/P by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP2515-E/P
MCP2515-E/P CAD Models
-

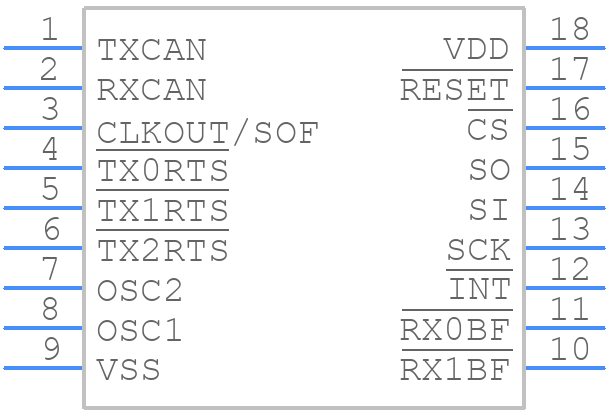

Part Symbol
-

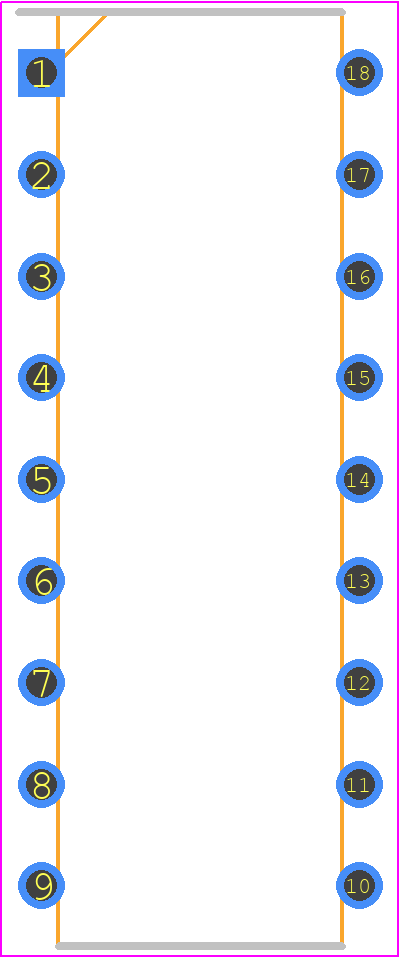

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MCP2515-E/P Part Data Attributes
|
|
MCP2515-E/P
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP2515-E/P
Microchip Technology Inc
Two-wire, stand alone CAN controller
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Package Description | Dip, Dip18,.3 | |
| Pin Count | 18 | |
| Manufacturer Package Code | PDIP-18 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Address Bus Width | ||
| Boundary Scan | No | |
| Bus Compatibility | Spi | |
| Clock Frequency-Max | 40 Mhz | |
| Communication Protocol | Sync; Bit ;Byte | |
| Data Encoding/Decoding Method | Nrz | |
| Data Transfer Rate-Max | 0.125 Mbps | |
| External Data Bus Width | ||
| JESD-30 Code | R-PDIP-T18 | |
| JESD-609 Code | e3 | |
| Length | 22.86 Mm | |
| Low Power Mode | Yes | |
| Number of I/O Lines | ||
| Number of Serial I/Os | 1 | |
| Number of Terminals | 18 | |
| On Chip Data RAM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP18,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| RAM (words) | 14 | |
| Seated Height-Max | 5.334 Mm | |
| Supply Current-Max | 10 Ma | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | No | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Width | 7.62 Mm | |
| uPs/uCs/Peripheral ICs Type | Serial Io/Communication Controller, Lan |
Alternate Parts for MCP2515-E/P
This table gives cross-reference parts and alternative options found for MCP2515-E/P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP2515-E/P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP2515-I/P | Microchip Technology Inc | $2.3199 | Two-wire, stand alone CAN controller | MCP2515-E/P vs MCP2515-I/P |
| MCP2515-I/PRB2 | Microchip Technology Inc | Check for Price | CAN controller with SPI interface, 125 deg C | MCP2515-E/P vs MCP2515-I/PRB2 |
MCP2515-E/P Frequently Asked Questions (FAQ)
-
The maximum frequency of the oscillator that can be used with the MCP2515 is 20 MHz.
-
The MCP2515 can be configured for a specific CAN bus speed by setting the Baud Rate Prescaler (BRP) and the Time Segment (TSEG) registers. The BRP determines the clock frequency, and the TSEG determines the bit time.
-
The MCP2515 has 32 filters, which can be used to filter incoming CAN messages based on their identifiers.
-
The MCP2515 has built-in error handling capabilities, including error counters and error flags. The device can also be configured to generate an interrupt on error detection.
-
Yes, the MCP2515 can be used in a multi-master CAN bus configuration, where multiple devices can transmit on the bus simultaneously.
