MCP2561FD-H/SN by: Microchip Technology Inc

High-Speed CAN Transceiver

Part Details for MCP2561FD-H/SN by Microchip Technology Inc

Results Overview of MCP2561FD-H/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

MCP2561FD-H/SN Information

MCP2561FD-H/SN by Microchip Technology Inc is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.

A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.

Price & Stock for MCP2561FD-H/SN

Part # Distributor Description Stock Price Buy
DISTI # 68AJ1798
Newark Can Transceiver, -40 To 150Deg C Rohs Compliant: Yes |Microchip MCP2561FD-H/SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 306
  • 1 $1.3500
  • 10 $1.2400
  • 25 $1.1200
  • 50 $1.0700
  • 100 $1.0200
$1.0200 / $1.3500 Buy Now
DISTI # MCP2561FD-H/SN-ND
DigiKey IC TRANSCEIVER 1/1 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube 92
In Stock
  • 1 $1.3500
  • 25 $1.1200
  • 100 $1.0200
$1.0200 / $1.3500 Buy Now
DISTI # MCP2561FD-H/SN
Avnet Americas - Rail/Tube (Alt: MCP2561FD-H/SN) COO: China RoHS: Compliant Min Qty: 300 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 300 $1.2429
  • 600 $1.1757
  • 1,200 $1.1447
  • 2,400 $1.1154
  • 4,800 $1.0875
$1.0875 / $1.2429 Buy Now
DISTI # 579-MCP2561FD-H/SN
Mouser Electronics CAN Interface IC CAN Flexible Data Rate Transceiver RoHS: Compliant 3485
  • 1 $1.3500
  • 25 $1.1200
  • 100 $1.0200
  • 300 $1.0100
$1.0100 / $1.3500 Buy Now
DISTI # MCP2561FD-H/SN
Microchip Technology Inc High-Speed CAN Transceiver, SOIC, Projected EOL: 2039-03-24 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube In Stock: 0 and Alternates Available
  • 1 $1.3500
  • 25 $1.1200
  • 100 $1.0200
  • 1,000 $0.9900
  • 5,000 $0.9800
$0.9800 / $1.3500 Buy Now
DISTI # 70574124
RS CAN FLEXIBLE DATA RATE TRANSCEIVER Min Qty: 400 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk 0
  • 400 $1.3700
$1.3700 RFQ
Onlinecomponents.com   COO: Thailand RoHS: Compliant 0
  • 100 $1.0710
  • 300 $1.0270
  • 500 $1.0120
  • 1,000 $0.9740
  • 2,500 $0.9260
  • 5,000 $0.9120
  • 7,500 $0.8980
$0.8980 / $1.0710 Buy Now
NAC CAN Flexible Data Rate Transceiver. Package: 8 SOIC 3.90mm(.150in) TUBE - INTERFACE Product Line RoHS: Compliant Min Qty: 300 Package Multiple: 100 Container: Tube 0
  • 1 $1.3400
  • 100 $1.2100
  • 500 $1.1200
  • 1,000 $1.0900
$1.0900 / $1.3400 Buy Now
DISTI # MCP2561FD-H/SN
Avnet Silica (Alt: MCP2561FD-H/SN) RoHS: Compliant Min Qty: 300 Package Multiple: 100 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP2561FD-H/SN
EBV Elektronik (Alt: MCP2561FD-H/SN) RoHS: Compliant Min Qty: 300 Package Multiple: 100 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
LCSC CAN FD Transceiver 45mA 4.5V5.5V SOIC-8 Drivers Receivers Transceivers RoHS 1
  • 1 $1.6412
  • 10 $1.5997
  • 30 $1.5721
  • 100 $1.5429
$1.5429 / $1.6412 Buy Now
Master Electronics   COO: Thailand RoHS: Compliant 0
  • 100 $1.0710
  • 300 $1.0270
  • 500 $1.0120
  • 1,000 $0.9740
  • 2,500 $0.9260
  • 5,000 $0.9120
  • 7,500 $0.8980
$0.8980 / $1.0710 Buy Now

US Tariff Estimator: MCP2561FD-H/SN by Microchip Technology Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MCP2561FD-H/SN
Microchip Technology Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MCP2561FD-H/SN

MCP2561FD-H/SN CAD Models

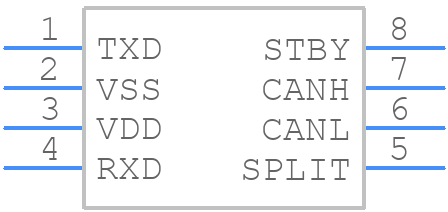

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP2561FD-H/SN Part Data Attributes

Parametric Data
MCP2561FD-H/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP2561FD-H/SN Microchip Technology Inc High-Speed CAN Transceiver
Rohs Code Yes
Part Life Cycle Code Active
Package Description Sop, Sop8,.25
Pin Count 8
Manufacturer Package Code SOIC-8
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8529.90.22.00
Factory Lead Time 6 Weeks
Data Rate 8000 Mbps
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 Mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Transceivers 1
Operating Temperature-Max 150 °C
Operating Temperature-Min -40 °C
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 260
Screening Level Ts 16949
Seated Height-Max 1.75 Mm
Supply Current-Max 70 Ma
Supply Voltage-Nom 5 V
Surface Mount Yes
Telecom IC Type Can Fd Transceiver
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Width 3.9 Mm

Alternate Parts for MCP2561FD-H/SN
