MCP6291T-E/OT Information
MCP6291T-E/OT by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MCP6291T-E/OT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84R5195
|
Newark | Single 10 Mhz Op, E Temp 5 Sot-23 T/R Rohs Compliant: Yes |Microchip MCP6291T-E/OT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 17744 |
|
$0.4200 | Buy Now |
|
DISTI #
71J5310
|
Newark | Ic, operational Amplifier, single, cmos, tsop,5Pin, plastic Rohs Compliant: Yes |Microchip MCP6291T-E/OT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.5300 | Buy Now |
|
DISTI #
MCP6291T-E/OTCT-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
31226 In Stock |
|
$0.5000 / $0.6700 | Buy Now |
|
DISTI #
84R5195
|
Avnet Americas | OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R - Product that comes on tape, but is not reeled (Alt: 84R5195) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Ammo Pack | 17744 Partner Stock |
|
$0.5300 / $0.6700 | Buy Now |
|
DISTI #
MCP6291T-E/OT
|
Avnet Americas | OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R - Tape and Reel (Alt: MCP6291T-E/OT) COO: China RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.5625 / $0.6429 | Buy Now |
|
DISTI #
579-MCP6291T-E/OT
|
Mouser Electronics | Operational Amplifiers - Op Amps Single 10 MHz OP E temp RoHS: Compliant | 6535 |
|
$0.5000 / $0.6700 | Buy Now |
|
DISTI #
MCP6291T-E/OT
|
Microchip Technology Inc | Single 10 MHz OP, E temp, SOT-23, Projected EOL: 2034-12-20 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 4 Weeks, 0 Days Container: Tape & Reel | In Stock: 2097 and Alternates Available |
|
$0.4900 / $0.6700 | Buy Now |
|
DISTI #
70046916
|
RS | MICROCHIP MCP6291T-E/OT OP AMP, 10MHZ CMOS, RAIL TO RAIL, 3 V, 5 V, 5-PIN SOT-23 Min Qty: 3000 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$0.6900 | RFQ |
|
|
Future Electronics | MCP6291 Series 6 V 10 MHz Rail-to-Rail I/O Operational Amplifier - SOT-23-5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 4 Weeks Container: Reel | 6000Reel |
|
$0.5650 | Buy Now |
|
|
Onlinecomponents.com | Op Amp - 10 MHZ GBP - 1.0mA - 2.4 to 6.0 VDC - Rail to Rail Out - -40°C to 125°C - 5-lead SOT-23 - Tape&Reel COO: Malaysia RoHS: Compliant |
11000 In Stock |
|
$0.4290 / $0.4931 | Buy Now |
US Tariff Estimator: MCP6291T-E/OT by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MCP6291T-E/OT
MCP6291T-E/OT CAD Models
-

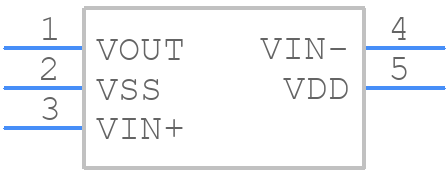

Part Symbol
-
