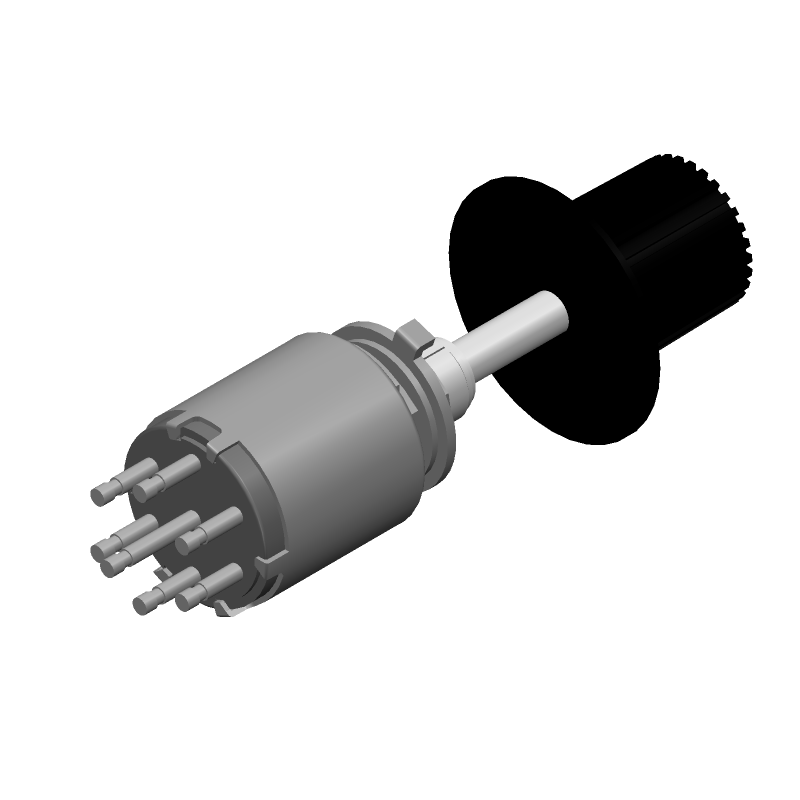

MRY106-A by: NKK Switches

Rotary Switch, 6 Positions, SP6T, Rotary Shaft Actuator,

Part Details for MRY106-A by NKK Switches

Results Overview of MRY106-A by NKK Switches

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MRY106-A Information

MRY106-A by NKK Switches is a Rotary Switch.
Rotary Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for MRY106-A

Part # Distributor Description Stock Price Buy
DISTI # 41Y7792
Newark Rotary Switch, 1Pole, 3A, 125V, Panel, No. Of Switch Positions:6 Position, No. Of Poles:1 Pole, Angle Of Throw:60°, Contact Current Ac Max:3A, Contact Voltage Ac Max:125V, Product Range:Mr Series, Illumination:Non Illuminated Rohs Compliant: Yes |Nkk Switches MRY106-A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2
  • 1 $26.8600
  • 10 $23.3200
$23.3200 / $26.8600 Buy Now
DISTI # 360-2379-ND
DigiKey SWITCH ROTARY 2-6POS 3A 125V Min Qty: 1 Lead time: 26 Weeks Container: Box 3253
In Stock
  • 1 $23.2800
  • 5 $19.9920
  • 10 $18.7200
  • 25 $17.1544
  • 50 $16.0534
  • 100 $15.0179
  • 250 $13.7426
  • 500 $13.1250
$13.1250 / $23.2800 Buy Now
DISTI # 633-MRY106A
Mouser Electronics Rotary Switches TURRET TERM 2-6 POS RoHS: Compliant 719
  • 1 $18.7000
  • 10 $18.0000
$18.0000 / $18.7000 Buy Now
DISTI # 70192066
RS SWITCH, MINI-ROTARY, SHAFT ACTUATED, SP6T,2-6 POS, BLACK KNOB,2A,125VAC,30VDC, PC Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk 0
  • 1 $23.5800
  • 5 $21.6900
  • 10 $20.0400
$20.0400 / $23.5800 RFQ
Future Electronics MR Series SP With 2-6 Positions Shaft Actuator Mini Power Level Rotary Switch RoHS: Compliant pbFree: Yes Min Qty: 25 Package Multiple: 1 Lead time: 26 Weeks Container: Box 0
Box
  • 1 $16.2800
  • 3 $16.0800
  • 10 $15.8600
  • 20 $15.7300
  • 40 $15.5000
$15.5000 / $16.2800 Buy Now
DISTI # NKKMRY106-A
Heilind Electronics   Americas - 1474 in Stock
  • 1 $20.5000
  • 10 $17.0833
  • 30 $16.5323
  • 50 $16.2698
  • 100 $16.0156
$16.0156 / $20.5000 Buy Now
DISTI # MRY106-A
TTI Rotary Switches TURRET TERM 2-6 POS Min Qty: 1 Package Multiple: 1 Container: Bulk Americas - 243
In Stock
  • 1 $17.0100
  • 5 $16.3900
  • 10 $16.0700
  • 25 $15.7600
  • 50 $15.4500
  • 100 $15.1500
  • 250 $14.8500
$14.8500 / $17.0100 Buy Now
DISTI # MRY106-A
TME Switch: rotary, Pos: 6, 3A/125VAC, 2A/30VDC, Poles number: 1, MR Min Qty: 1 0
  • 1 $17.7300
  • 25 $17.2200
$17.2200 / $17.7300 RFQ
Powell Electronics MINIATURE POWER LEVEL ROTARY Min Qty: 1 1823
  • 1 $21.8300
  • 250 $18.4800
  • 2,500 $14.6400
$14.6400 / $21.8300 Buy Now
LCSC 60 1 1 125V 30V Rotary Switches RoHS 5
  • 1 $13.9809
  • 10 $13.3595
  • 50 $12.2825
$12.2825 / $13.9809 Buy Now

US Tariff Estimator: MRY106-A by NKK Switches

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MRY106-A
NKK Switches
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MRY106-A

MRY106-A Part Data Attributes

Parametric Data
MRY106-A NKK Switches
Buy Now Datasheet
Compare Parts:
MRY106-A NKK Switches Rotary Switch, 6 Positions, SP6T, Rotary Shaft Actuator,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Not Compliant
ECCN Code EAR99
HTS Code 8536.50.70.00
Actuator Color Black
Actuator Finish Nickel
Actuator Length 0.787 Inch
Actuator Material Brass
Actuator Type Shaft Type
Body Height 16.9 Mm
Body Length or Diameter 14 Mm
Bushing Diameter 0.236 Inch
Bushing Length 0.22 Inch
Bushing Type M6p0.75
Center Contact Material Copper Alloy
Center Contact Plating Silver
Contact (AC) Max Rating R Load 3a@125vac
Contact Current(AC)-Max 3 A
Contact Current(DC)-Max 2 A
Contact (DC) Max Power Rating R Load 0.4va@28vdc
Contact (DC) Max Rating R Load 2a@30vdc
Contact Resistance 0.01 MΩ
Contact Timing Break-Before-Make
Contact Voltage(AC)-Max 125 V
Contact Voltage(DC)-Max 30 V
Dielectric Withstand Volts 1000vac V
Electrical Life 7500 Cycle(S)
End Contact Material Brass
End Contact Plating Silver
Housing Material Brass
Indexing Angle 60 Deg
Insulation Resistance 100000000 Ω
Insulator Material Phenolic
Mounting Feature Panel Mount
Number of Positions 6
Number of Switch Sections 1
Operating Temperature-Max 70 °C
Operating Temperature-Min -10 °C
Solderability Hand
Surface Mount No
Switch Action Latched
Switch Function Sp6t
Switch Type Rotary Switch
Terminal Length 0.197 Inch
Terminal Material Copper Alloy
Termination Type Wire
equivalents icon

MRY106-A Related Parts

MRY106-A Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the MRY106-A is -20°C to 85°C.

  • Yes, the MRY106-A is designed for high-reliability applications and has a long lifespan of up to 100,000 cycles.

  • The maximum voltage rating for the MRY106-A is 250V AC/DC.

  • Yes, the MRY106-A is UL certified and meets the requirements of UL 61058-1.

  • The recommended torque for mounting the MRY106-A is 0.5 N·m to 1.5 N·m.
