MSP430F436IPZ by:
Texas Instruments

RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 8MHz, CMOS, PQFP100

Part Details for MSP430F436IPZ by Texas Instruments

Results Overview of MSP430F436IPZ by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MSP430F436IPZ Information

MSP430F436IPZ by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MSP430F436IPZ

Part # Distributor Description Stock Price Buy
DISTI # 296-12636-ND
DigiKey IC MCU 16BIT 24KB FLASH 100LQFP Min Qty: 180 Container: Tray 0
Tray
  • 180 $9.1892
$9.1892 Buy Now
DISTI # 595-430F436IPZ
Mouser Electronics 16-bit Microcontrollers - MCU 24kB Flash 1MB RAM 1 2bADC/USART 160sLCD A 595-430F436IPZR RoHS: Compliant 28
  • 1 $15.3100
  • 10 $11.6300
  • 25 $11.1500
  • 90 $9.1800
  • 450 $8.9300
  • 900 $8.7400
$8.7400 / $15.3100 Buy Now
DISTI # 595-430F436IPZ
Mouser Electronics 16-bit Microcontrollers - MCU 24kB Flash 1MB RAM 1 2bADC/USART 160sLCD A 595-430F436IPZR RoHS: Compliant 28
  • 1 $15.3100
  • 10 $11.6300
  • 25 $11.1500
  • 90 $9.1800
  • 450 $8.9300
  • 900 $8.7400
$8.7400 / $15.3100 Buy Now
DISTI # 87205612
Verical MCU 16-bit MSP430 RISC 24KB Flash 2.5V/3.3V 100-Pin LQFP Tray RoHS: Compliant Min Qty: 43 Package Multiple: 1 Date Code: 1201 Americas - 450
  • 43 $8.9250
  • 100 $8.4750
  • 500 $8.0375
  • 1,000 $7.5875
  • 10,000 $7.1375
$7.1375 / $8.9250 Buy Now
Rochester Electronics MSP430F436 16-Bit Ultra-Low-Power Microcontroller, 24kB Flash, 1024B RAM, 12-Bit ADC, USART, 160 Segment LCD RoHS: Compliant Status: Active Min Qty: 1 635
  • 25 $7.1400
  • 100 $6.7800
  • 500 $6.4300
  • 1,000 $6.0700
  • 10,000 $5.7100
$5.7100 / $7.1400 Buy Now
DISTI # MSP430F436IPZ
TME IC: MSP430 microcontroller, LQFP100, I2C,JTAG,SPI,UART, Cmp: 1 Min Qty: 1 0
  • 1 $13.8600
  • 10 $10.5300
  • 90 $7.9600
  • 900 $7.6400
$7.6400 / $13.8600 RFQ
Vyrian RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 8MHz, CMOS, PQFP100 5642
RFQ

US Tariff Estimator: MSP430F436IPZ by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MSP430F436IPZ
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MSP430F436IPZ

MSP430F436IPZ CAD Models

  • Part Symbol

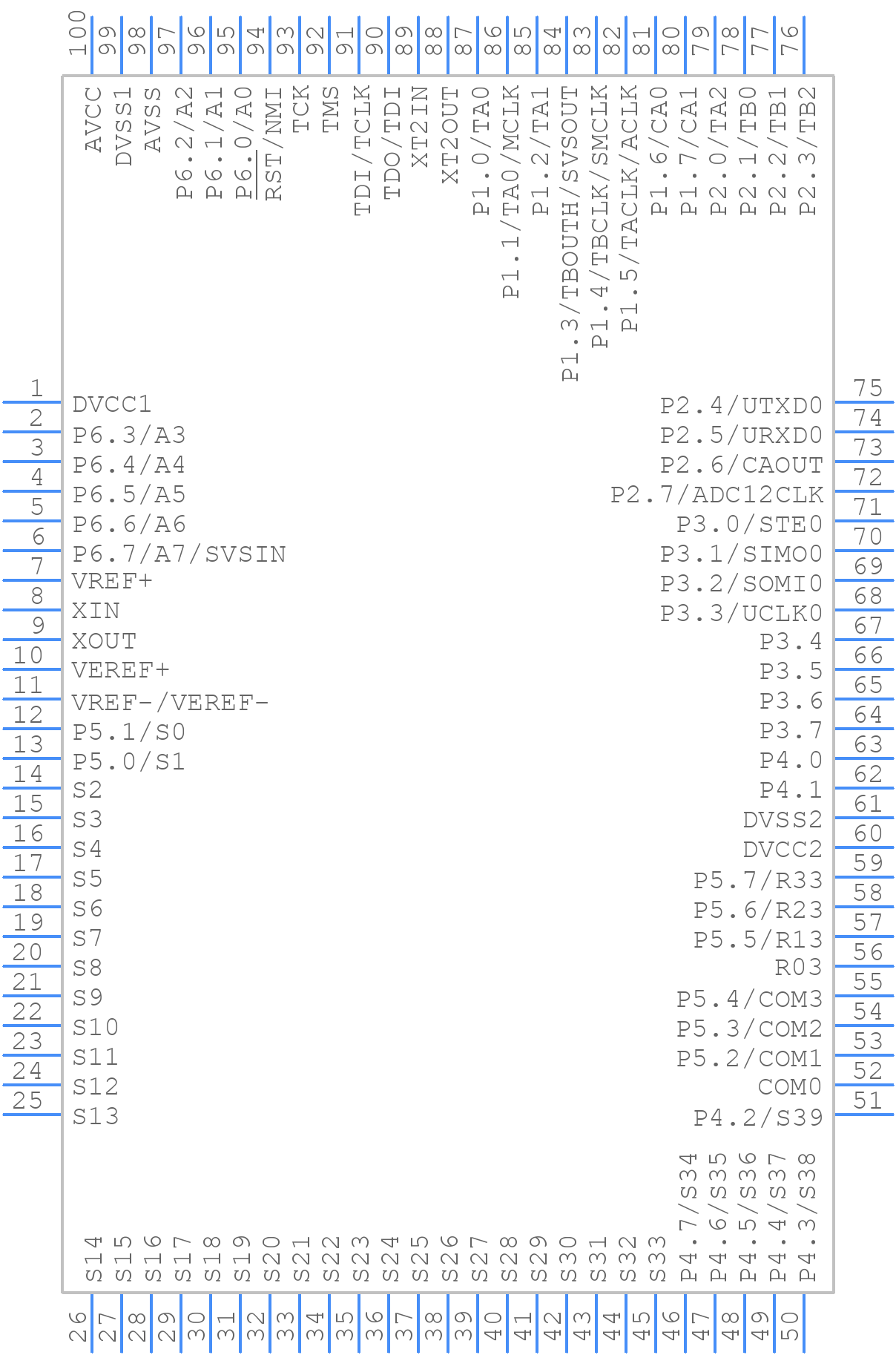

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

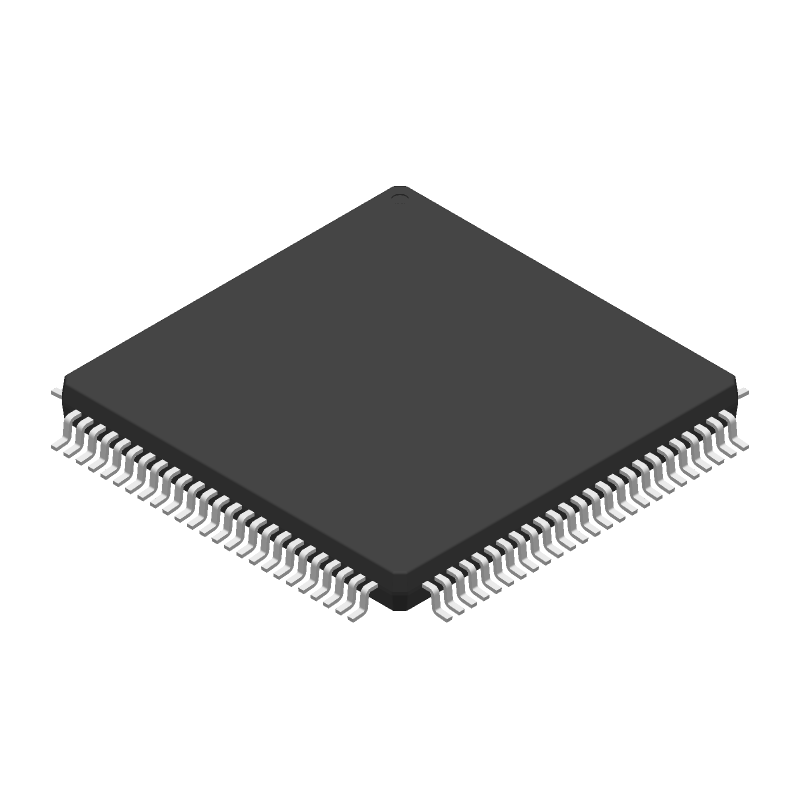

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430F436IPZ Part Data Attributes

Parametric Data
MSP430F436IPZ Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430F436IPZ Texas Instruments RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 8MHz, CMOS, PQFP100
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code QFP
Pin Count 100
ECCN Code EAR99
HTS Code 8542.31.00.30
Has ADC Yes
Additional Feature Also Operates At 1.8v Minimum Supply At 4.15 Mhz
Address Bus Width
Bit Size 16
Boundary Scan Yes
CPU Family Msp430
Clock Frequency-Max 8 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code S-PQFP-G100
JESD-609 Code e4
Length 14 Mm
Low Power Mode Yes
Moisture Sensitivity Level 3
Number of DMA Channels
Number of External Interrupts
Number of I/O Lines 48
Number of Serial I/Os 2
Number of Terminals 100
Number of Timers 7
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape Square
Package Style Flatpack, Low Profile, Fine Pitch
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 1024
RAM (words) 1
ROM (words) 12288
ROM Programmability Flash
Seated Height-Max 1.6 Mm
Speed 8 Mhz
Supply Current-Max 0.56 Ma
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Industrial
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Quad
Time@Peak Reflow Temperature-Max (s) 30
Width 14 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc
