| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MSP430FR5989IPM | Texas Instruments | $10.2775 | RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 16MHz, CMOS, PQFP64 | MSP430FR5986IPM vs MSP430FR5989IPM |
| MSP430FR5989IPMR | Texas Instruments | $3.1328 | RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 16MHz, CMOS, PQFP64 | MSP430FR5986IPM vs MSP430FR5989IPMR |
| MSP430FR5987IPMR | Texas Instruments | $4.3000 | RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 16MHz, CMOS, PQFP64 | MSP430FR5986IPM vs MSP430FR5987IPMR |
| MSP430FR5988IPM | Texas Instruments | $4.8205 | RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 16MHz, CMOS, PQFP64 | MSP430FR5986IPM vs MSP430FR5988IPM |
| MSP430FR5987IPM | Texas Instruments | $8.5800 | RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 16MHz, CMOS, PQFP64 | MSP430FR5986IPM vs MSP430FR5987IPM |
| MSP430FR5989PM | Texas Instruments | Check for Price | RISC Microcontroller, 16-Bit, FRAM, 16MHz, CMOS, PQFP64 | MSP430FR5986IPM vs MSP430FR5989PM |
| MSP430FR5988IPMR | Texas Instruments | Check for Price | RISC Microcontroller, 16-Bit, FLASH, 16MHz, CMOS, PQFP64 | MSP430FR5986IPM vs MSP430FR5988IPMR |
| MSP430FR5986IPMR | Texas Instruments | Check for Price | RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 16MHz, CMOS, PQFP64 | MSP430FR5986IPM vs MSP430FR5986IPMR |
Part Details for MSP430FR5986IPM by Texas Instruments
Results Overview of MSP430FR5986IPM by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (8 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Space Technology
Internet of Things (IoT)
Environmental Monitoring
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Communication and Networking
Automotive
Robotics and Drones
MSP430FR5986IPM Information
MSP430FR5986IPM by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MSP430FR5986IPM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MSP430FR5986IPM-ND
|
DigiKey | IC MCU 16BIT 48KB FRAM 64LQFP Min Qty: 160 Container: Tray |
0 Tray |
|
$5.9426 | Buy Now |
|
DISTI #
595-MSP430FR5986IPM
|
Mouser Electronics | 16-bit Microcontrollers - MCU Ultra low power MCU A 595-MSP430FR5986IP A 595-MSP430FR5986IPMR RoHS: Compliant | 0 |
|
$5.9500 / $6.1900 | Order Now |
|
DISTI #
MSP430FR5986IPM
|
TME | IC: MSP430 microcontroller, 16MHz, LQFP64, I2C,IrDA,SPI,UART Min Qty: 1 | 0 |
|
$6.2600 / $6.3300 | RFQ |
|
|
Vyrian | RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 16MHz, CMOS, PQFP64 | 6389 |
|
RFQ |
US Tariff Estimator: MSP430FR5986IPM by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
MSP430FR5986IPM CAD Models
-

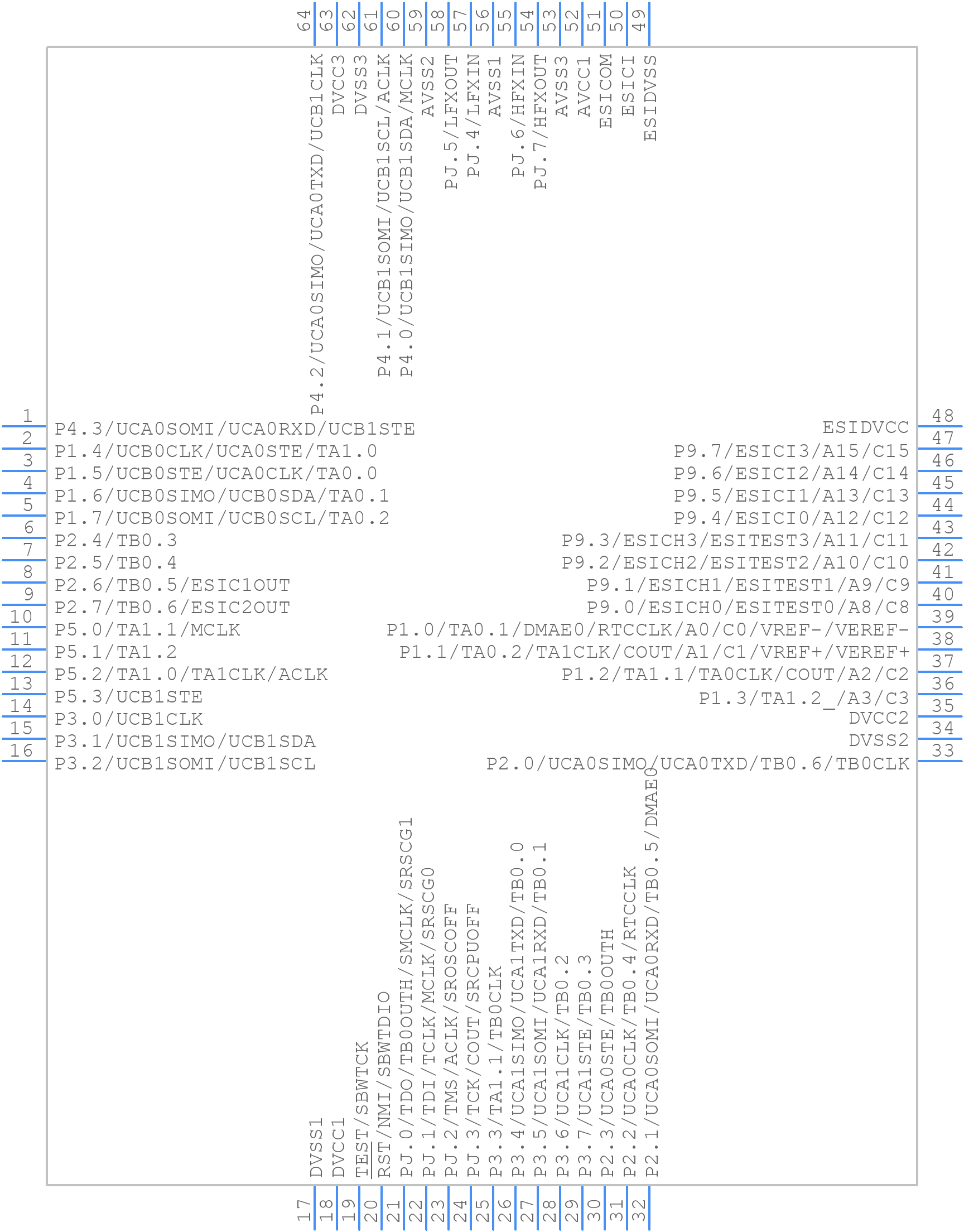

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MSP430FR5986IPM Part Data Attributes
|
|
MSP430FR5986IPM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MSP430FR5986IPM
Texas Instruments
RISC Microcontroller, 16-Bit, FLASH, MSP430 CPU, 16MHz, CMOS, PQFP64
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lqfp-64 | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.30 | |
| Has ADC | Yes | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Boundary Scan | Yes | |
| CPU Family | Msp430 | |
| Clock Frequency-Max | 24 Mhz | |
| DAC Channels | No | |
| DMA Channels | Yes | |
| External Data Bus Width | ||
| Format | Fixed Point | |
| Integrated Cache | No | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 Mm | |
| Low Power Mode | Yes | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 3 | |
| Number of External Interrupts | ||
| Number of I/O Lines | 48 | |
| Number of Serial I/Os | 3 | |
| Number of Terminals | 64 | |
| Number of Timers | 20 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | Yes | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFQFP | |
| Package Shape | Square | |
| Package Style | Flatpack, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 2048 | |
| RAM (words) | 2 | |
| ROM (words) | 49152 | |
| ROM Programmability | Flash | |
| Seated Height-Max | 1.6 Mm | |
| Speed | 16 Mhz | |
| Supply Current-Max | 1.62 Ma | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 Mm | |
| uPs/uCs/Peripheral ICs Type | Microcontroller, Risc |
Alternate Parts for MSP430FR5986IPM
This table gives cross-reference parts and alternative options found for MSP430FR5986IPM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430FR5986IPM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
MSP430FR5986IPM Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MSP430FR5986IPM is -40°C to 85°C, as specified in the datasheet. However, it's recommended to operate within the recommended operating temperature range of -40°C to 70°C for optimal performance and reliability.
-
To configure the MSP430FR5986IPM for low-power operation, you can use the Power Management Module (PMM) to control the power modes. You can also use the Low Power Mode (LPM) to reduce power consumption. Additionally, you can disable unused peripherals and use the clock system to reduce power consumption. Refer to the datasheet and the MSP430FR58xx Family User's Guide for more information.
-
The maximum clock frequency for the MSP430FR5986IPM is 16 MHz, as specified in the datasheet. However, the device can also operate at lower frequencies, such as 1 MHz or 32768 Hz, to reduce power consumption.
-
The MSP430FR5986IPM can be programmed using the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE) or the IAR Embedded Workbench. You can also use the MSP430 Flasher tool to program the device. The device can be programmed through the JTAG or Spy-Bi-Wire interfaces.
-
The MSP430FR5986IPM has 64 KB of flash memory, which can be used to store program code and data.
