MSP430L092SPW by: Texas Instruments

RISC Microcontroller, 16-Bit, MROM, MSP430 CPU, 4MHz, CMOS, PDSO14

Part Details for MSP430L092SPW by Texas Instruments

Results Overview of MSP430L092SPW by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Automotive

MSP430L092SPW Information

MSP430L092SPW by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
MSP430L092SPWR Texas Instruments MSP430L092 Mixed Signal Microcontroller 14-TSSOP 0 to 50
MSP430L092SPW Texas Instruments MSP430L092 Mixed Signal Microcontroller 14-TSSOP 0 to 50

Price & Stock for MSP430L092SPW

Part # Distributor Description Stock Price Buy
DISTI # 2156-MSP430L092SPW-ND
DigiKey IC MCU 16BIT ROMLESS 14TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT 900
In Stock
  • 133 $2.2500
$2.2500 Buy Now
DISTI # MSP430L092SPW-ND
DigiKey IC MCU 16BIT ROMLESS 14TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Tube Temporarily Out of Stock
  • 1 $3.9600
  • 10 $2.9900
  • 90 $2.4963
  • 180 $2.3940
  • 270 $2.3428
  • 540 $2.2676
  • 1,080 $2.2058
  • 2,520 $2.1449
$2.1449 / $3.9600 Buy Now
DISTI # 595-MSP430L092SPW
Mouser Electronics 16-bit Microcontrollers - MCU Mixed Signal MCU A 5 95-MSP430L092SPWR A A 595-MSP430L092SPWR RoHS: Compliant 0
  • 1 $5.2800
  • 10 $3.6300
  • 25 $3.3800
  • 90 $2.9700
  • 270 $2.8200
  • 540 $2.5300
  • 1,080 $2.1700
  • 2,160 $2.1200
$2.1200 / $5.2800 Order Now
DISTI # 86281620
Verical MCU 16-bit MSP430 RISC 2KB ROM 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 176 Package Multiple: 1 Date Code: 1101 Americas - 900
  • 176 $2.1375
  • 500 $2.0250
$2.0250 / $2.1375 Buy Now
Rochester Electronics RISC Microcontroller, 16-Bit, MROM, MSP430 CPU, 4MHz, CMOS, PDSO14 RoHS: Compliant Status: Active Min Qty: 1 900
  • 25 $1.8000
  • 100 $1.7100
  • 500 $1.6200
  • 1,000 $1.5300
  • 10,000 $1.4400
$1.4400 / $1.8000 Buy Now
DISTI # 86281620
Verical MCU 16-bit MSP430 RISC 2KB ROM 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 176 Package Multiple: 1 Date Code: 1101 Americas - 900
  • 176 $2.1375
  • 500 $2.0250
$2.0250 / $2.1375 Buy Now
DISTI # 86281620
Verical MCU 16-bit MSP430 RISC 2KB ROM 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 176 Package Multiple: 1 Date Code: 1101 Americas - 900
  • 176 $2.1375
  • 500 $2.0250
$2.0250 / $2.1375 Buy Now
Vyrian RISC Microcontroller, 16-Bit, MROM, MSP430 CPU, 4MHz, CMOS, PDSO14 6279
RFQ

US Tariff Estimator: MSP430L092SPW by Texas Instruments

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

MSP430L092SPW
Texas Instruments
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for MSP430L092SPW

MSP430L092SPW CAD Models

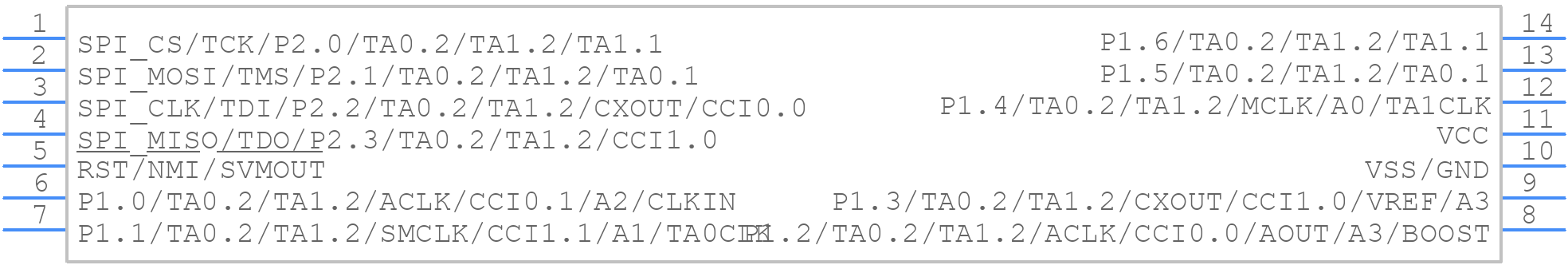

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

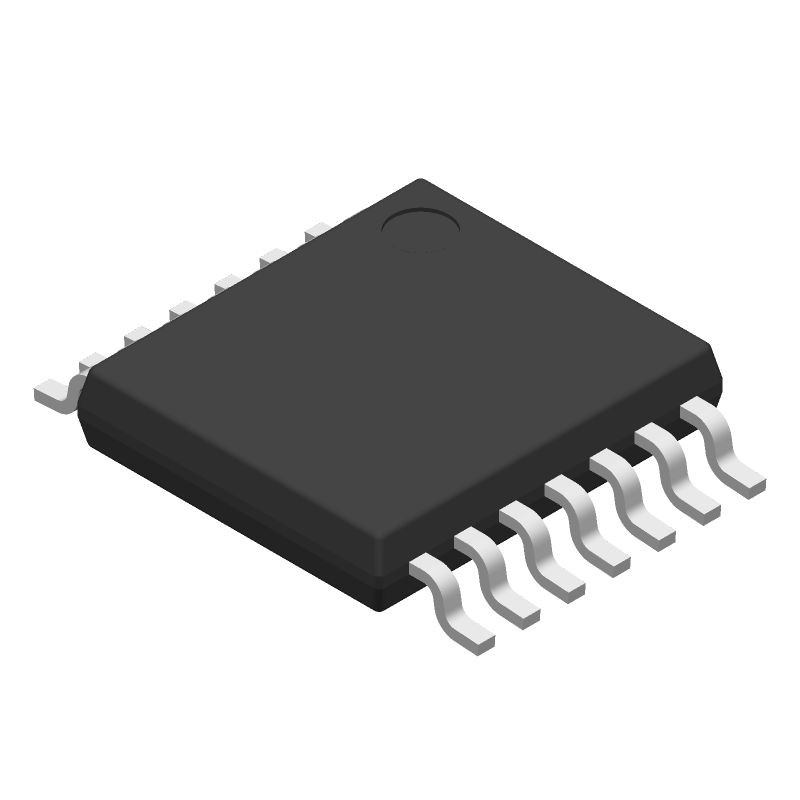

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MSP430L092SPW Part Data Attributes

Parametric Data
MSP430L092SPW Texas Instruments
Buy Now Datasheet
Compare Parts:
MSP430L092SPW Texas Instruments RISC Microcontroller, 16-Bit, MROM, MSP430 CPU, 4MHz, CMOS, PDSO14
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code TSSOP
Pin Count 14
ECCN Code EAR99
HTS Code 8542.31.00.30
Has ADC Yes
Additional Feature Also Opeartes At 0.9 V Minimum Supply At 1 Mhz
Address Bus Width
Bit Size 16
Boundary Scan Yes
CPU Family Msp430
Clock Frequency-Max 4 Mhz
DAC Channels Yes
DMA Channels No
External Data Bus Width
Format Fixed Point
Integrated Cache No
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 5 Mm
Low Power Mode Yes
Moisture Sensitivity Level 1
Number of DMA Channels
Number of External Interrupts
Number of I/O Lines 11
Number of Serial I/Os
Number of Terminals 14
Number of Timers 6
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 50 °C
Operating Temperature-Min
PWM Channels Yes
Package Body Material Plastic/Epoxy
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape Rectangular
Package Style Small Outline, Thin Profile, Shrink Pitch
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 2048
RAM (words) 2
ROM (words) 2048
ROM Programmability Mrom
Seated Height-Max 1.2 Mm
Speed 4 Mhz
Supply Current-Max 0.105 Ma
Supply Voltage-Max 1.65 V
Supply Voltage-Min 1.3 V
Supply Voltage-Nom 1.3 V
Surface Mount Yes
Technology Cmos
Temperature Grade Military
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form Gull Wing
Terminal Pitch 0.65 Mm
Terminal Position Dual
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 Mm
uPs/uCs/Peripheral ICs Type Microcontroller, Risc

Alternate Parts for MSP430L092SPW

This table gives cross-reference parts and alternative options found for MSP430L092SPW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MSP430L092SPW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MSP430L092SPWR Texas Instruments $1.0222 RISC Microcontroller, 16-Bit, MROM, MSP430 CPU, 4MHz, CMOS, PDSO14 MSP430L092SPW vs MSP430L092SPWR
MSP430C092SPW Texas Instruments Check for Price RISC Microcontroller, 16-Bit, MROM, 4MHz, CMOS, PDSO14 MSP430L092SPW vs MSP430C092SPW
