Part Details for NC7WZ17P6X-L22347 by onsemi
Results Overview of NC7WZ17P6X-L22347 by onsemi
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
NC7WZ17P6X-L22347 Information
NC7WZ17P6X-L22347 by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for NC7WZ17P6X-L22347
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57AK8525
|
Newark | Uhs 2 Buffer Schmitt/Reel |Onsemi NC7WZ17P6X-L22347 RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0550 / $0.0960 | Buy Now |
|
|
Bristol Electronics | 3157 |
|
RFQ | ||
|
DISTI #
NC7WZ17P6X-L22347
|
TME | IC: digital, buffer,non-inverting, Ch: 2, CMOS, SMD, SC70-6, 10uA Min Qty: 10 | 0 |
|
$0.0870 / $0.1390 | RFQ |
|
DISTI #
NC7WZ17P6X-L22347
|
IBS Electronics | SCHMITT TRIGGER 32MA 1 1.65V~5.5V 32MA 2 SC-88-6 BUFFER/DRIVER/TRANSCEIVER ROHS Min Qty: 15000 Package Multiple: 1 | 0 |
|
$0.0710 | Buy Now |
|
|
Chip Stock | 21104 |
|
RFQ | ||
|
|
Flip Electronics | Stock | 18000 |
|
RFQ | |
|
|
LCSC | Schmitt Trigger 1 1.65V5.5V 2 SC-70-6 Buffers Drivers Receivers Transceivers RoHS | 2620 |
|
$0.0460 / $0.0661 | Buy Now |
US Tariff Estimator: NC7WZ17P6X-L22347 by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NC7WZ17P6X-L22347
NC7WZ17P6X-L22347 CAD Models
-

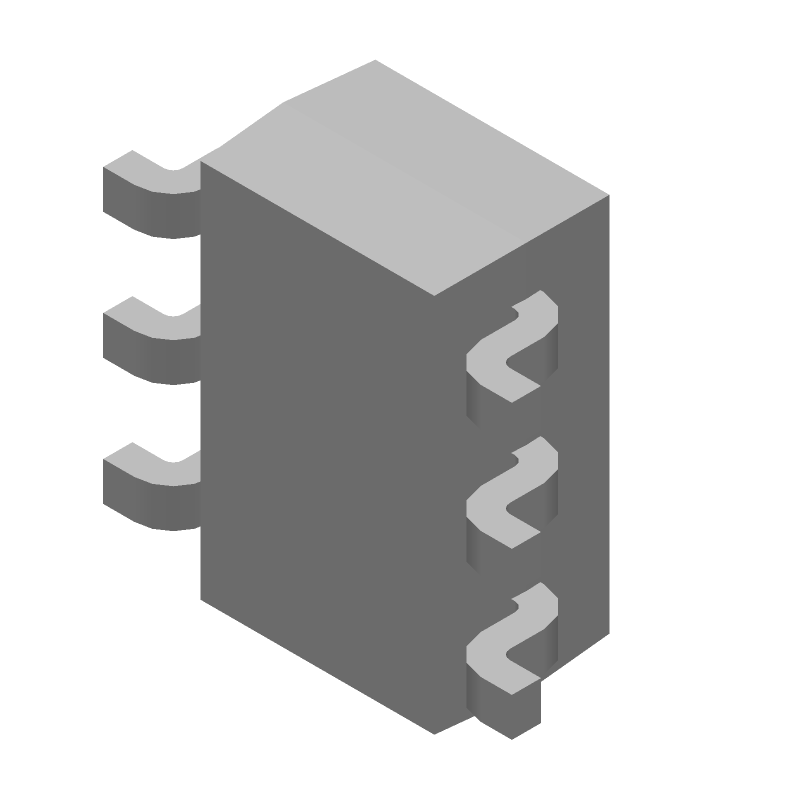

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
NC7WZ17P6X-L22347 Part Data Attributes
|
|
NC7WZ17P6X-L22347
onsemi
Buy Now
Datasheet
|
Compare Parts:
NC7WZ17P6X-L22347
onsemi
TinyLogic UHS Dual Buffer with Schmitt Trigger Inputs, SC-88-6 / SC-70-6 / SOT-363-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Part Package Code | SC-88-6 / SC-70-6 / SOT-363-6 | |
| Package Description | Sc-70, 6 Pin | |
| Manufacturer Package Code | 419AD | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Family | Lvc/Lcx/Z | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2 Mm | |
| Load Capacitance (CL) | 50 Pf | |
| Logic IC Type | Buffer | |
| Max I(ol) | 0.032 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Inputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 100 Ma | |
| Prop. Delay@Nom-Sup | 13.1 Ns | |
| Propagation Delay (tpd) | 15.8 Ns | |
| Schmitt Trigger | Yes | |
| Seated Height-Max | 1.1 Mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.65 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 Mm |
Alternate Parts for NC7WZ17P6X-L22347
This table gives cross-reference parts and alternative options found for NC7WZ17P6X-L22347. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NC7WZ17P6X-L22347, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74LVC2G17DW-7 | Diodes Incorporated | $0.0930 | Buffer, LVC/LCX/Z Series, 2-Func, 1-Input, CMOS, PDSO6, GREEN, SOT-363, 6 PIN | NC7WZ17P6X-L22347 vs 74LVC2G17DW-7 |
| NL27WZ17DFT2 | onsemi | Check for Price | 27WZ SERIES, DUAL 1-INPUT NON-INVERT GATE, PDSO6, SC-70, SC-88, SOT-363, 6 PIN | NC7WZ17P6X-L22347 vs NL27WZ17DFT2 |
NC7WZ17P6X-L22347 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the NC7WZ17P6X-L22347 is 1.65V to 5.5V.
-
To ensure proper power-up and initialization, it is recommended to follow the power-up sequence outlined in the datasheet, which includes applying a stable voltage source, waiting for the internal voltage regulator to settle, and then applying the input signals.
-
The maximum frequency of operation for the NC7WZ17P6X-L22347 is 250 MHz.
-
To handle thermal management, it is recommended to follow the thermal design guidelines outlined in the datasheet, which include providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
-
The NC7WZ17P6X-L22347 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage to the device.
