NCV317MBSTT3G Information
NCV317MBSTT3G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for NCV317MBSTT3G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AC6370
|
Newark | Linear Volt Reg, Aec-Q100, 0.5A, Sot-223 Rohs Compliant: Yes |Onsemi NCV317MBSTT3G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3828 |
|
$0.2270 / $0.4900 | Buy Now |
|
DISTI #
76T6402
|
Newark | Ana 500Ma Adjust Out Vreg |Onsemi NCV317MBSTT3G RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1910 / $0.2480 | Buy Now |
|
DISTI #
NCV317MBSTT3G
|
Avnet Americas | - Tape and Reel (Alt: NCV317MBSTT3G) COO: Czechia RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.1947 / $0.1987 | Buy Now |
|
DISTI #
NCV317MBSTT3G
|
TME | IC: voltage regulator, linear,adjustable, 1.2÷37V, 0.5A, SOT223 Min Qty: 1 | 0 |
|
$0.3140 / $0.5900 | RFQ |
|
|
Chip 1 Exchange | INSTOCK | 5200 |
|
RFQ | |
|
DISTI #
NCV317MBSTT3G
|
Avnet Asia | (Alt: NCV317MBSTT3G) RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
NCV317MBSTT3G
|
Avnet Silica | (Alt: NCV317MBSTT3G) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | LDORegulatorPos1.2Vto37V0.25AAutomotive4-Pin(3+Tab)SOT-223T/R | 33515 |
|
RFQ | |
|
DISTI #
NCV317MBSTT3G
|
EBV Elektronik | (Alt: NCV317MBSTT3G) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Wuhan P&S | 500mA Adjustable Output,Positive Voltage Regulator Min Qty: 1 | 4000 |
|
$0.2600 / $0.5300 | Buy Now |
US Tariff Estimator: NCV317MBSTT3G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NCV317MBSTT3G
NCV317MBSTT3G CAD Models
-

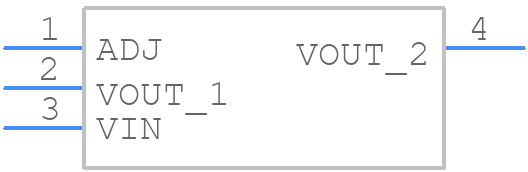

Part Symbol
-

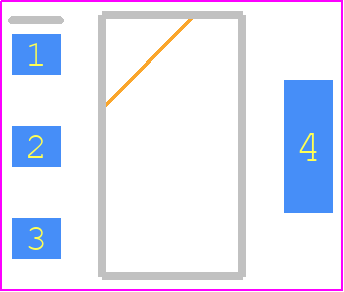

Footprint
-

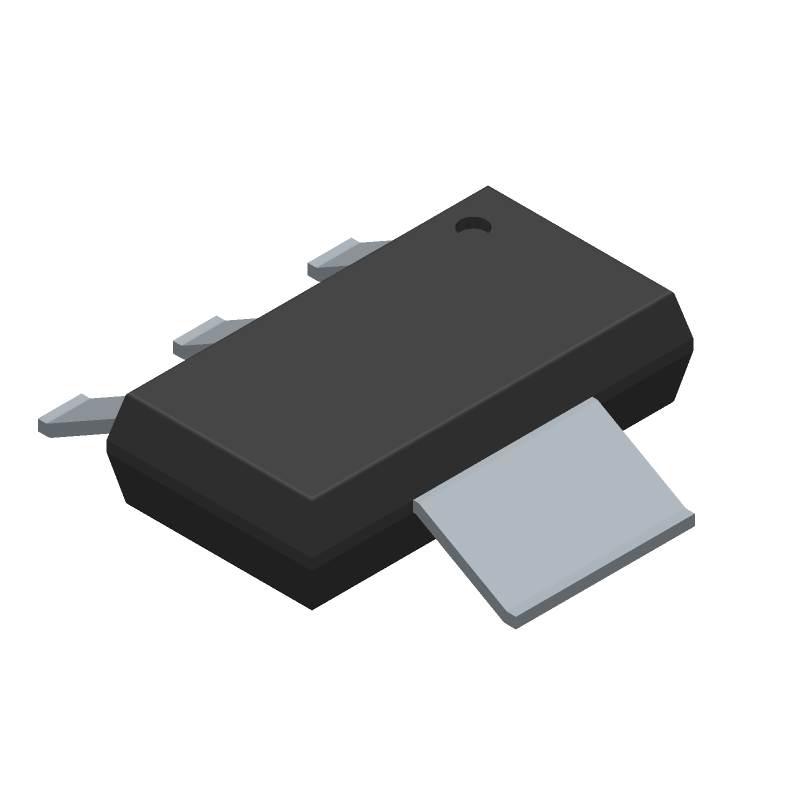

3D Model
