NCV7344D13R2G Information
NCV7344D13R2G by onsemi is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for NCV7344D13R2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
99AC9383
|
Newark | Can Tx Rx, 5Mbps, 150Deg C, Soic-8, Can Interface Ic Type:Can Fd Transceiver, Data Rate Max:5Mbps, Supply Voltage Min:4.75V, Supply Voltage Max:5.25V, Ic Case/Package:Soic, No. Of Pins:8Pins, No. Of Channels:1Channels Rohs Compliant: Yes |Onsemi NCV7344D13R2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4603 |
|
$0.3080 / $0.6500 | Buy Now |
|
DISTI #
42AC0947
|
Newark | Hs Lp Canfd (Vio-Wu-Lft) |Onsemi NCV7344D13R2G RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2350 / $0.3050 | Buy Now |
|
DISTI #
NCV7344D13R2G
|
Avnet Americas | - Tape and Reel (Alt: NCV7344D13R2G) COO: Philippines (the) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days Container: Reel | 15000 |
|
$0.2311 / $0.2465 | Buy Now |
|
|
ComSIT USA | 1-Trnsvr, PDSO8 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
NCV7344D13R2G
|
Avnet Asia | (Alt: NCV7344D13R2G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 15000 |
|
$0.0925 / $0.1017 | Buy Now |
|
DISTI #
NCV7344D13R2G
|
Avnet Silica | (Alt: NCV7344D13R2G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 25 Weeks, 0 Days | Silica - 3000 |
|
Buy Now | |
|
|
Chip Stock | CANHighSpeedTransceiver5MbpsNormal/Standby4.75Vto5.25V8-PinSOICT/R | 72500 |
|
RFQ | |
|
DISTI #
NCV7344D13R2G
|
EBV Elektronik | (Alt: NCV7344D13R2G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 26 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC TRANSCEIVER HALF 1/1 8SOIC | 60000 |
|
$0.3850 / $0.4973 | Buy Now |
US Tariff Estimator: NCV7344D13R2G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NCV7344D13R2G
NCV7344D13R2G CAD Models
-

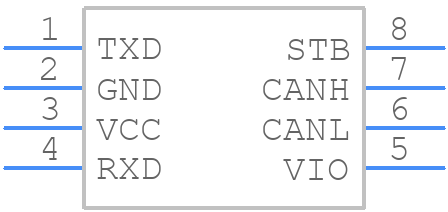

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
NCV7344D13R2G Part Data Attributes
|
|
NCV7344D13R2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NCV7344D13R2G
onsemi
CAN FD Transceiver, High Speed, Low Power with VIO pin, long filter time, SOIC-8, 3000-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 | |
| Package Description | SOIC-8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | Compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Data Rate | 5000 Mbps | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 6 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 70 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | CAN FD TRANSCEIVER | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.9 mm |
