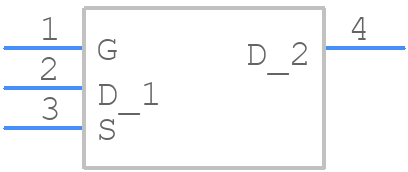

Part Symbol
-

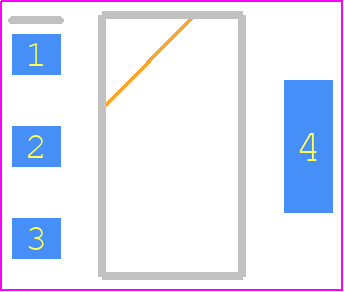

Footprint
-

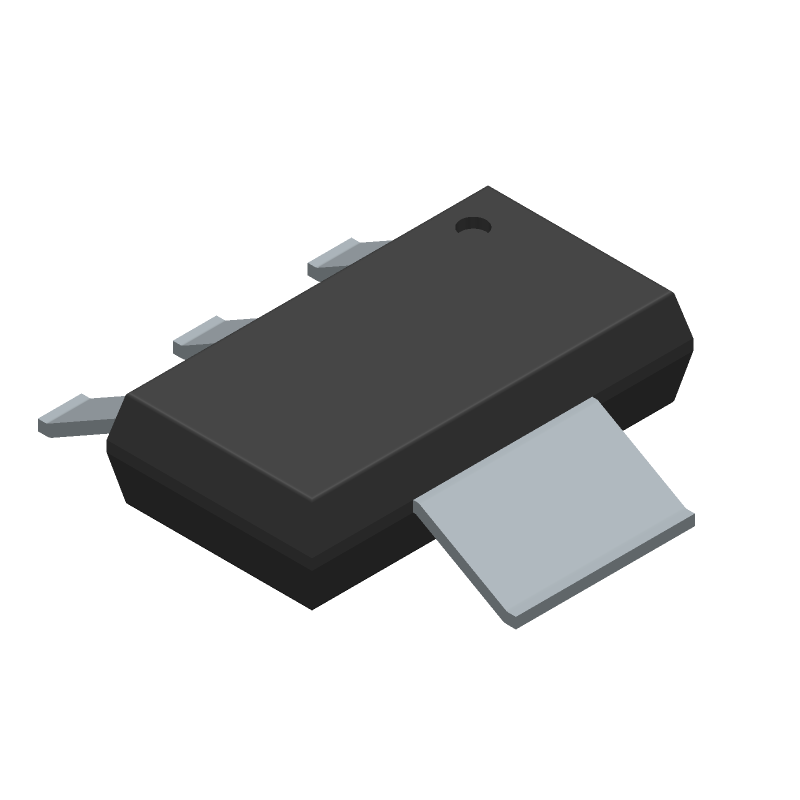

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Single P-Channel Power MOSFET -60V, -2.6A, 170mΩ, SOT-223 (TO-261) 4 LEAD, 1000-REEL
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
81AC9551
|
Newark | Pfet Sot223 60V 2.6A 0.17 Rohs Compliant: Yes |Onsemi NTF2955T1G RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 37000 |
|
$0.4800 / $0.5390 | Buy Now |
DISTI #
10N9718
|
Newark | P Channel Mosfet, -60V, 2.6A, Sot-223, Channel Type:P Channel, Drain Source Voltage Vds:60V, Continuous Drain Current Id:2.6A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:4V Rohs Compliant: Yes |Onsemi NTF2955T1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 9202 |
|
$0.6670 / $1.2100 | Buy Now |
DISTI #
45J2134
|
Newark | P Channel Mosfet, -60V, 2.6A, Sot-223, Full Reel, Channel Type:P Channel, Drain Source Voltage Vds:60V, Continuous Drain Current Id:2.6A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Power Dissipation:1W Rohs Compliant: Yes |Onsemi NTF2955T1G RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4750 / $0.5350 | Buy Now |
DISTI #
58M9896
|
Newark | Mosfet, P, 60V, Sot-223, Transistor Polarity:P Channel, Continuous Drain Current Id:2.6A, Drain Source Voltage Vds:-60V, On Resistance Rds(On):0.17Ohm, Rds(On) Test Voltage Vgs:20V, Threshold Voltage Vgs:-4V, Power Dissipation Pd:1W, rohs Compliant: Yes |Onsemi NTF2955T1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.7230 / $1.2600 | Buy Now |
DISTI #
NTF2955T1GOSCT-ND
|
DigiKey | MOSFET P-CH 60V 1.7A SOT223 Min Qty: 1 Lead time: 16 Weeks Container: Digi-ReelĀ®, Cut Tape (CT), Tape & Reel (TR) |
15496 In Stock |
|
$0.4239 / $1.7100 | Buy Now |
DISTI #
NTF2955T1G
|
Avnet Americas | Power MOSFET, P Channel, 60 V, 2.6 A, 185 Milliohms, SOT-223 (TO-261), 4 Pins, Surface Mount - Tape and Reel (Alt: NTF2955T1G) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Container: Reel | 3700024000 Factory Stock |
|
$0.4365 | Buy Now |
DISTI #
NTF2955T1G
|
Avnet Americas | Power MOSFET, P Channel, 60 V, 2.6 A, 185 Milliohms, SOT-223 (TO-261), 4 Pins, Surface Mount - Tape and Reel (Alt: NTF2955T1G) RoHS: Compliant Min Qty: 738 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Reel | 24000 Partner Stock |
|
$0.4205 / $0.5019 | Buy Now |
DISTI #
10N9718
|
Avnet Americas | Power MOSFET, P Channel, 60 V, 2.6 A, 185 Milliohms, SOT-223 (TO-261), 4 Pins, Surface Mount - Product that comes on tape, but is not reeled (Alt: 10N9718) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 55 Weeks, 2 Days Container: Ammo Pack | 9202 Partner Stock |
|
$0.7820 / $1.2100 | Buy Now |
DISTI #
863-NTF2955T1G
|
Mouser Electronics | MOSFETs -60V 2.6A P-Channel RoHS: Compliant | 10124 |
|
$0.4240 / $1.1300 | Buy Now |
|
Future Electronics | P-Channel 60 V 145 mOhm 2.3 W Surface Mount Power MOSFET - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks Container: Reel | 70000Reel |
|
$0.4150 / $0.4550 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
NTF2955T1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
NTF2955T1G
onsemi
Single P-Channel Power MOSFET -60V, -2.6A, 170mΩ, SOT-223 (TO-261) 4 LEAD, 1000-REEL
|
Pbfree Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | ONSEMI | |
Part Package Code | SOT-223 (TO-261) 4 LEAD | |
Package Description | TO-261, 4 PIN | |
Pin Count | 4 | |
Manufacturer Package Code | 0.0318 | |
Reach Compliance Code | not_compliant | |
ECCN Code | EAR99 | |
Factory Lead Time | 4 Weeks | |
Samacsys Manufacturer | onsemi | |
Avalanche Energy Rating (Eas) | 225 mJ | |
Case Connection | DRAIN | |
Configuration | SINGLE WITH BUILT-IN DIODE | |
DS Breakdown Voltage-Min | 60 V | |
Drain Current-Max (ID) | 1.7 A | |
Drain-source On Resistance-Max | 0.185 Ω | |
FET Technology | METAL-OXIDE SEMICONDUCTOR | |
JEDEC-95 Code | TO-261AA | |
JESD-30 Code | R-PDSO-G4 | |
JESD-609 Code | e3 | |
Moisture Sensitivity Level | 1 | |
Number of Elements | 1 | |
Number of Terminals | 4 | |
Operating Mode | ENHANCEMENT MODE | |
Operating Temperature-Max | 175 °C | |
Package Body Material | PLASTIC/EPOXY | |
Package Shape | RECTANGULAR | |
Package Style | SMALL OUTLINE | |
Peak Reflow Temperature (Cel) | 260 | |
Polarity/Channel Type | P-CHANNEL | |
Power Dissipation-Max (Abs) | 1.92 W | |
Pulsed Drain Current-Max (IDM) | 10.4 A | |
Qualification Status | Not Qualified | |
Surface Mount | YES | |
Terminal Finish | Matte Tin (Sn) - annealed | |
Terminal Form | GULL WING | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | 30 | |
Transistor Application | SWITCHING | |
Transistor Element Material | SILICON |
This table gives cross-reference parts and alternative options found for NTF2955T1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of NTF2955T1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Description | Manufacturer | Compare |
---|---|---|---|
NVF2955T1G | Single P-Channel Power MOSFET -60V, -2.6A, 170mΩ Automotive Version of the NTF2955., SOT-223 (TO-261) 4 LEAD, 1000-REEL, Automotive Qualified | onsemi | NTF2955T1G vs NVF2955T1G |
