NVF2955T1G Information
NVF2955T1G by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for NVF2955T1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AC3819
|
Newark | Mosfet, P-Ch, -60V, -2.6A, Sot-223, Channel Type:P Channel, Drain Source Voltage Vds:-60V, Continuous Drain Current Id:-2.6A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:-10V, Gate Source Threshold Voltage Max:-4V Rohs Compliant: Yes |Onsemi NVF2955T1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1406 |
|
$0.5270 / $1.0800 | Buy Now |
|
DISTI #
65T1518
|
Newark | Pfet Sot223 60V 2.6A 140M Rohs Compliant: Yes |Onsemi NVF2955T1G RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel | 0 |
|
$0.6170 / $0.7710 | Buy Now |
|
DISTI #
488-NVF2955T1GCT-ND
|
DigiKey | MOSFET P-CH 60V 2.6A SOT223 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1382 In Stock |
|
$0.4264 / $1.7200 | Buy Now |
|
DISTI #
NVF2955T1G
|
Avnet Americas | Power MOSFET, P Channel, 60 V, 2.6 A, 0.145 ohm, SOT-223, Surface Mount - Tape and Reel (Alt: NVF2955T1G) COO: Malaysia RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.4264 / $0.4873 | Buy Now |
|
DISTI #
863-NVF2955T1G
|
Mouser Electronics | MOSFETs PFET SOT223 60V 2.6A 140M RoHS: Compliant | 4086 |
|
$0.4260 / $1.3400 | Buy Now |
|
DISTI #
E02:0323_03805150
|
Arrow Electronics | Trans MOSFET P-CH 60V 2.6A 4-Pin(3+Tab) SOT-223 T/R Automotive AEC-Q101 COO: Malaysia RoHS: Exempt Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Date Code: 2428 | Europe - 30000 |
|
$0.4370 | Buy Now |
|
DISTI #
V36:1790_07310025
|
Arrow Electronics | Trans MOSFET P-CH 60V 2.6A 4-Pin(3+Tab) SOT-223 T/R Automotive AEC-Q101 COO: Malaysia RoHS: Exempt Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Date Code: 2533 | Americas - 1000 |
|
$0.4212 / $0.5137 | Buy Now |
|
DISTI #
V72:2272_07310025
|
Arrow Electronics | Trans MOSFET P-CH 60V 2.6A 4-Pin(3+Tab) SOT-223 T/R Automotive AEC-Q101 COO: Malaysia RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2407 Container: Cut Strips | Americas - 690 |
|
$0.5188 / $0.5560 | Buy Now |
|
DISTI #
70547300
|
RS | NVF2955T1G P-CHANNEL MOSFET TRANSISTOR, 2 A, 60 V, 3 + TAB-PIN SOT-223 Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$0.5100 | RFQ |
|
|
Future Electronics | Single P-Channel 60 V 2.6 A 170 mOhm Surface Mount Power MOSFET SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Container: Reel | 2000Reel |
|
$0.4900 / $0.5150 | Buy Now |
US Tariff Estimator: NVF2955T1G by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for NVF2955T1G
NVF2955T1G CAD Models
-

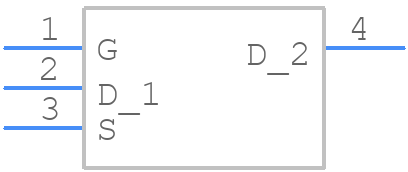

Part Symbol
-

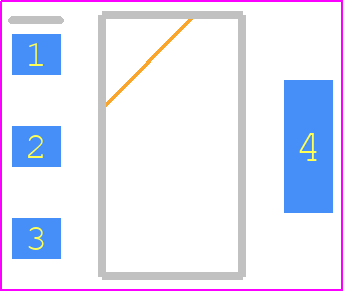

Footprint
-

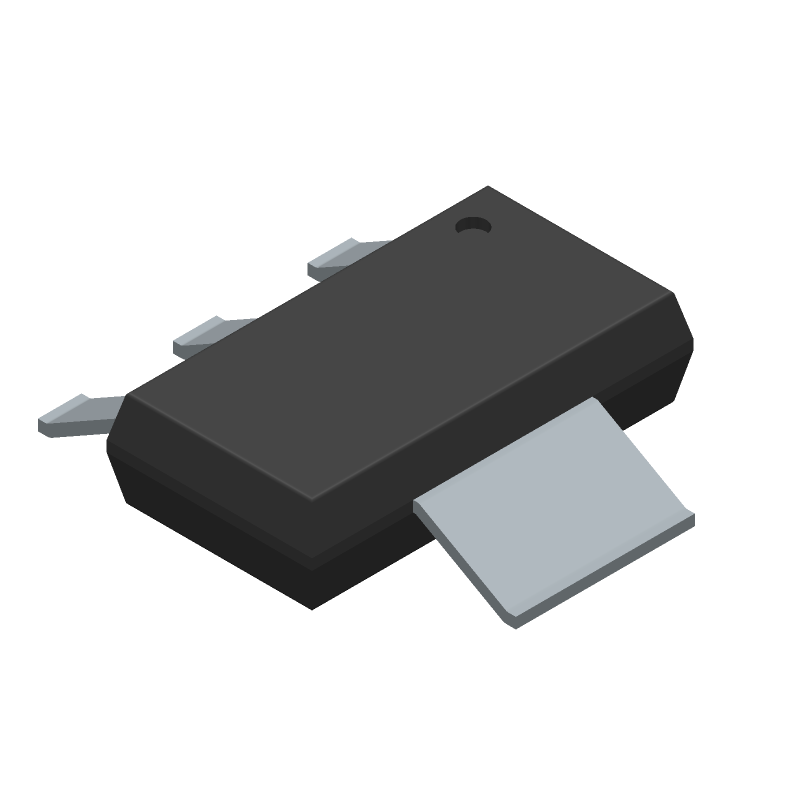

3D Model
