Part Details for OJE-SH-112LMHF,000 by TE Connectivity
Results Overview of OJE-SH-112LMHF,000 by TE Connectivity
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
OJE-SH-112LMHF,000 Information
OJE-SH-112LMHF,000 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for OJE-SH-112LMHF,000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1721870-5
|
Avnet Americas | - Boxed Product (Development Kits) (Alt: 1721870-5) COO: China RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 3 Days Container: Box | 0 |
|
$0.7122 / $1.0468 | Buy Now |
US Tariff Estimator: OJE-SH-112LMHF,000 by TE Connectivity
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for OJE-SH-112LMHF,000
OJE-SH-112LMHF,000 CAD Models
-

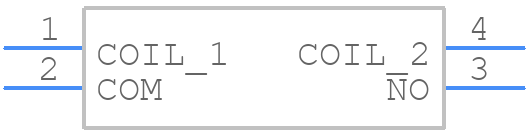

Part Symbol
-

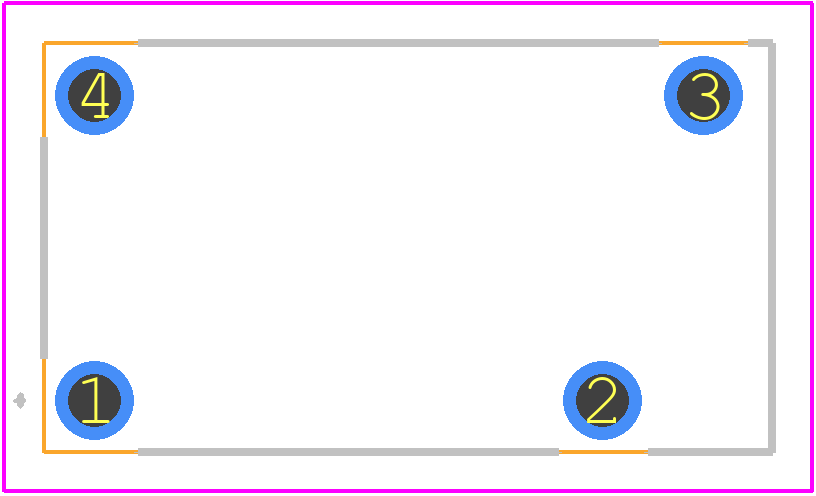

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
OJE-SH-112LMHF,000 Part Data Attributes
|
|
OJE-SH-112LMHF,000
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
OJE-SH-112LMHF,000
TE Connectivity
Power/Signal Relay
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.41.00.20 | |
| Factory Lead Time | 15 Weeks, 3 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Body Breadth | 10.2 mm | |
| Body Height | 14.7 mm | |
| Body Length or Diameter | 18.2 mm | |
| Coil Power | 200 mW | |
| Coil Resistance | 720 Ω | |
| Coil Voltage(DC)-Max | 12 V | |
| Contact Current(AC)-Max | 8 A | |
| Contact Current(DC)-Max | 8 A | |
| Contact Voltage(AC)-Max | 277 V | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Strength Between Coil and Contacts | 3000 Vrms | |
| Dielectric Strength Between Open Contacts | 750 Vrms | |
| End Contact Material | SILVER CADMIUM OXIDE | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | BOX; TRAY | |
| Relay Action | MOMENTARY | |
| Relay Form | 1 FORM A | |
| Relay Type | POWER/SIGNAL RELAY | |
| Surface Mount | NO | |
| Termination Type | SOLDER/QUICK CONNECT | |
| Weight | 9 g |
OJE-SH-112LMHF,000 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
-
Yes, the OJE-SH-112LMHF,000 is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in automotive or industrial applications.
-
Yes, the OJE-SH-112LMHF,000 is designed to be environmentally sealed and can withstand outdoor use, including exposure to moisture and temperature extremes.
-
The maximum operating temperature for the OJE-SH-112LMHF,000 is 125°C, as specified in the datasheet.
-
No, the OJE-SH-112LMHF,000 is designed for use with wire gauges 18 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.
