| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OP07CPZ | Analog Devices Inc | $1.5674 | Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, PDIP8 | OP07CP vs OP07CPZ |
| OP07CZ | Precision Monolithics Inc | Check for Price | Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, CDIP8 | OP07CP vs OP07CZ |
| OP-07DP | National Semiconductor Corporation | Check for Price | IC OP-AMP, 250 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8, Operational Amplifier | OP07CP vs OP-07DP |
| OP-07DP | Rochester Electronics LLC | Check for Price | OP-AMP, 250uV OFFSET-MAX, 0.6MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8 | OP07CP vs OP-07DP |
| OP07CZ | Maxim Integrated Products | Check for Price | Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, CDIP8 | OP07CP vs OP07CZ |
| OP-07CP | Texas Instruments | Check for Price | OP-AMP, 250uV OFFSET-MAX, 0.6MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8 | OP07CP vs OP-07CP |
| OP-221AZ | Analog Devices Inc | Check for Price | IC DUAL OP-AMP, 150 uV OFFSET-MAX, 0.6 MHz BAND WIDTH, CDIP8, HERMETIC SEALED, CERDIP-8, Operational Amplifier | OP07CP vs OP-221AZ |
| OP07CP | Precision Monolithics Inc | Check for Price | Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, PDIP8 | OP07CP vs OP07CP |
| OP07CPZ | Rochester Electronics LLC | Check for Price | Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, PDIP8 | OP07CP vs OP07CPZ |
| OP07CP | Analog Devices Inc | Check for Price | Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, PDIP8 | OP07CP vs OP07CP |
Part Details for OP07CP by Texas Instruments
Results Overview of OP07CP by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (10 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (9 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
OP07CP Information
OP07CP by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for OP07CP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH4634
|
Newark | Op Amp, Texas Instruments Op07Cp, |Texas Instruments OP07CP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 3398 |
|
$1.0100 / $2.0100 | Buy Now |
|
DISTI #
296-12853-5-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8DIP Min Qty: 1 Container: Tube |
8918 Tube |
|
$1.0386 / $2.0800 | Buy Now |
|
DISTI #
595-OP07CP
|
Mouser Electronics | Precision Amplifiers Low Offset Volt Prec RoHS: Compliant | 27621 |
|
$1.0300 / $2.0800 | Buy Now |
|
|
Quest Components | OP-AMP, 250 UV OFFSET-MAX, 0.6 MHZ BAND WIDTH, PDIP8 | 3 |
|
$4.0000 / $4.8000 | Buy Now |
|
DISTI #
OP07CP
|
TME | IC: operational amplifier, 600kHz, Ch: 1, ±3÷18VDC,6÷36VDC, DIP8 Min Qty: 1 | 1831 |
|
$1.1100 / $2.1000 | Buy Now |
|
|
ComSIT USA | PRECISION OPERATIONAL AMPLIFIER Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, PDIP8 ECCN: EAR99 RoHS: Not Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 3616 |
|
RFQ | |
|
|
Chip Stock | PRECISION OPERATIONAL AMPLIFIER Operational Amplifier, 1 Func, 250uV Offset-Max, BIPolar, PDIP8 | 53500 |
|
RFQ | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 7 |
|
$2.5000 / $3.8500 | Buy Now |
|
|
Sense Electronic Company Limited | DIP | 460 |
|
RFQ |
US Tariff Estimator: OP07CP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
OP07CP CAD Models
-

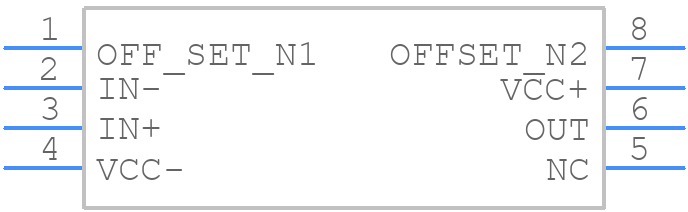

Part Symbol
-

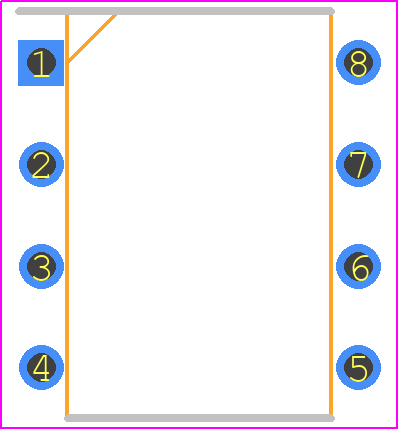

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
OP07CP Part Data Attributes
|
|
OP07CP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
OP07CP
Texas Instruments
Operational Amplifier, 1 Func, 150uV Offset-Max, BIPolar, PDIP8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Pin Count | 8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.009 µA | |
| Bias Current-Max (IIB) @25C | 0.012 µA | |
| Common-mode Reject Ratio-Min | 97 Db | |
| Common-mode Reject Ratio-Nom | 110 Db | |
| Frequency Compensation | Yes | |
| Input Offset Voltage-Max | 150 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e4 | |
| Length | 9.59 Mm | |
| Low-Bias | No | |
| Low-Offset | Yes | |
| Micropower | No | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Packing Method | Tube | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 Mm | |
| Slew Rate-Min | 0.3 V/Us | |
| Slew Rate-Nom | 0.3 V/Us | |
| Supply Current-Max | 4.5 Ma | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | No | |
| Technology | Bipolar | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Unity Gain BW-Nom | 600 | |
| Voltage Gain-Min | 100000 | |
| Wideband | No | |
| Width | 7.62 Mm |
Alternate Parts for OP07CP
This table gives cross-reference parts and alternative options found for OP07CP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of OP07CP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
OP07CP Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the OP07CP is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in a unity-gain buffer configuration, add a capacitor (typically 10-100pF) between the output and the inverting input to prevent oscillations. This is because the OP07CP has a high gain-bandwidth product and can oscillate if not properly compensated.
-
For optimal performance, use a star-grounding technique, where the grounds of the power supplies, analog circuits, and digital circuits are connected at a single point. Keep the OP07CP's input and output traces short and away from noise sources, and use a ground plane to reduce electromagnetic interference (EMI).
-
While the OP07CP can be used as a comparator, it's not the best choice due to its relatively slow slew rate (0.5V/μs) and limited output current (±5mA). A dedicated comparator like the LM339 or LM393 would be a better choice for most applications.
-
To protect the OP07CP from electrostatic discharge (ESD), use ESD-protection devices such as TVS diodes or ESD-protection arrays on the input and output pins. Follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
